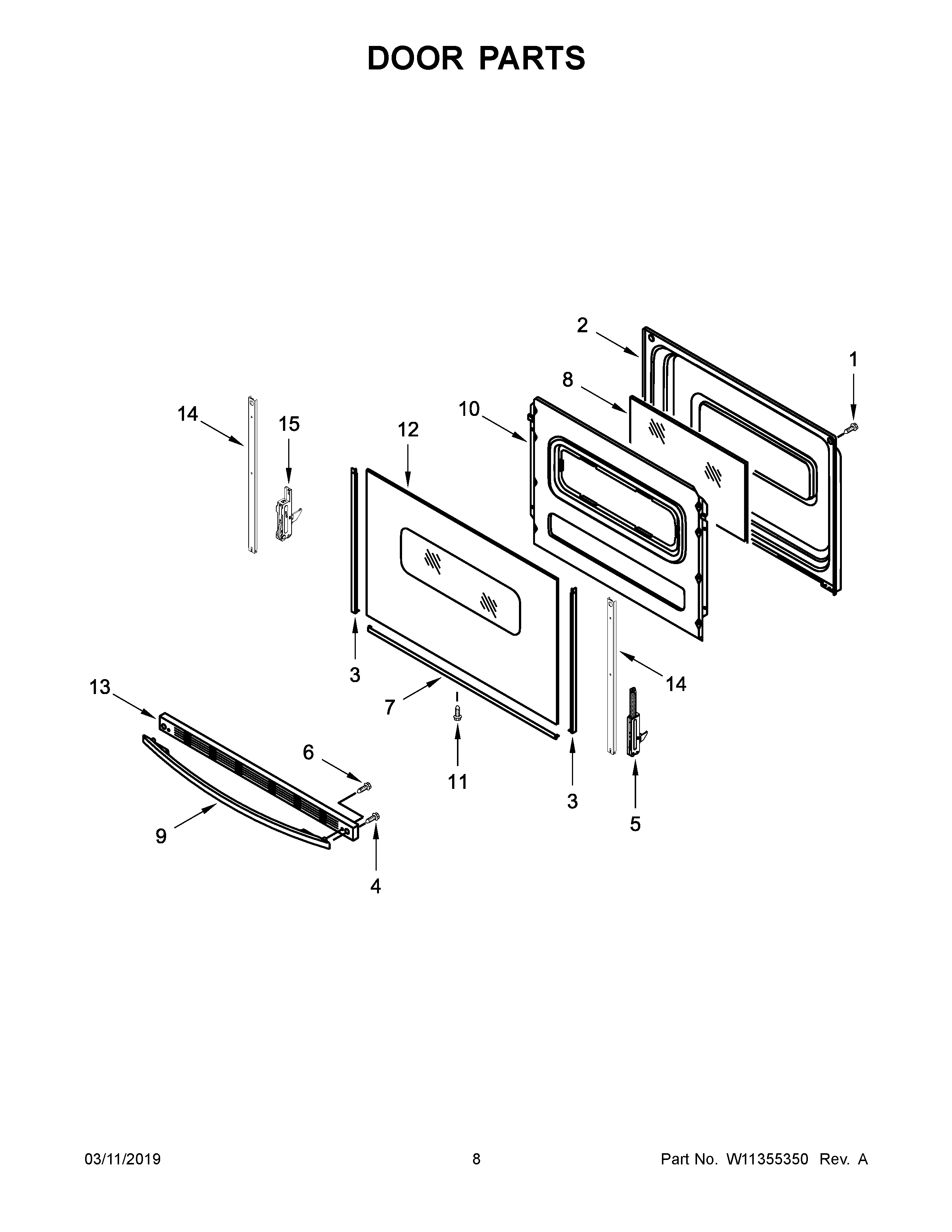

YWFC150M0EW3 05 – DOOR PARTS

YWFC150M0EW3 05 – DOOR PARTS

Written by

in

YWFC150M0EW3 05 – DOOR PARTS

Products

PositionProduct
1WP3196175 Whirlpool Screw
1WPW10031790 Whirlpool Screw
2W10813962 Whirlpool Utility Drawer
2WP9761344 Whirlpool Door Liner
3WPW10462912 Whirlpool Bracket Mounting
3W10761018 Whirlpool Dishwasher Left Door Trim
3AW10761014 Whirlpool Right Door Trim
3CWP8523166 Whirlpool Door Trim
3BWP8523172 Whirlpool Left Door Trim
4WPW10200660 Whirlpool Range Oven Door Handle Screw
4AWP3196814 Whirlpool Rivet
4WP3196813 Whirlpool Rivet
5AW11219377 Whirlpool Drawer Panel
5W11230488 Whirlpool Drawer Panel
5WPW10299225 Whirlpool Door Hinge
6WPW10465148 Whirlpool Screw
6GLIDE-RANGE DRAWER KIT
7AWP8523175 Whirlpool Door Trim Assembly
7WP8523177 Whirlpool Door Trim Assembly
8W11399628 Whirlpool Door Glass
9AW10300489 Whirlpool Door Handle
9W10300490 Whirlpool Door Handle
10W11685635 Whirlpool Retainer
11WP355214 Whirlpool Screw
12AWPW10409945 Whirlpool Glass Door
12WPW10409946 Whirlpool Door Glass
13AW10817433 Whirlpool Vent Trim
13TRIM-VENT
14W11502236 Whirlpool Door Trim
15WPW10299227 Whirlpool Range Door Hinge
