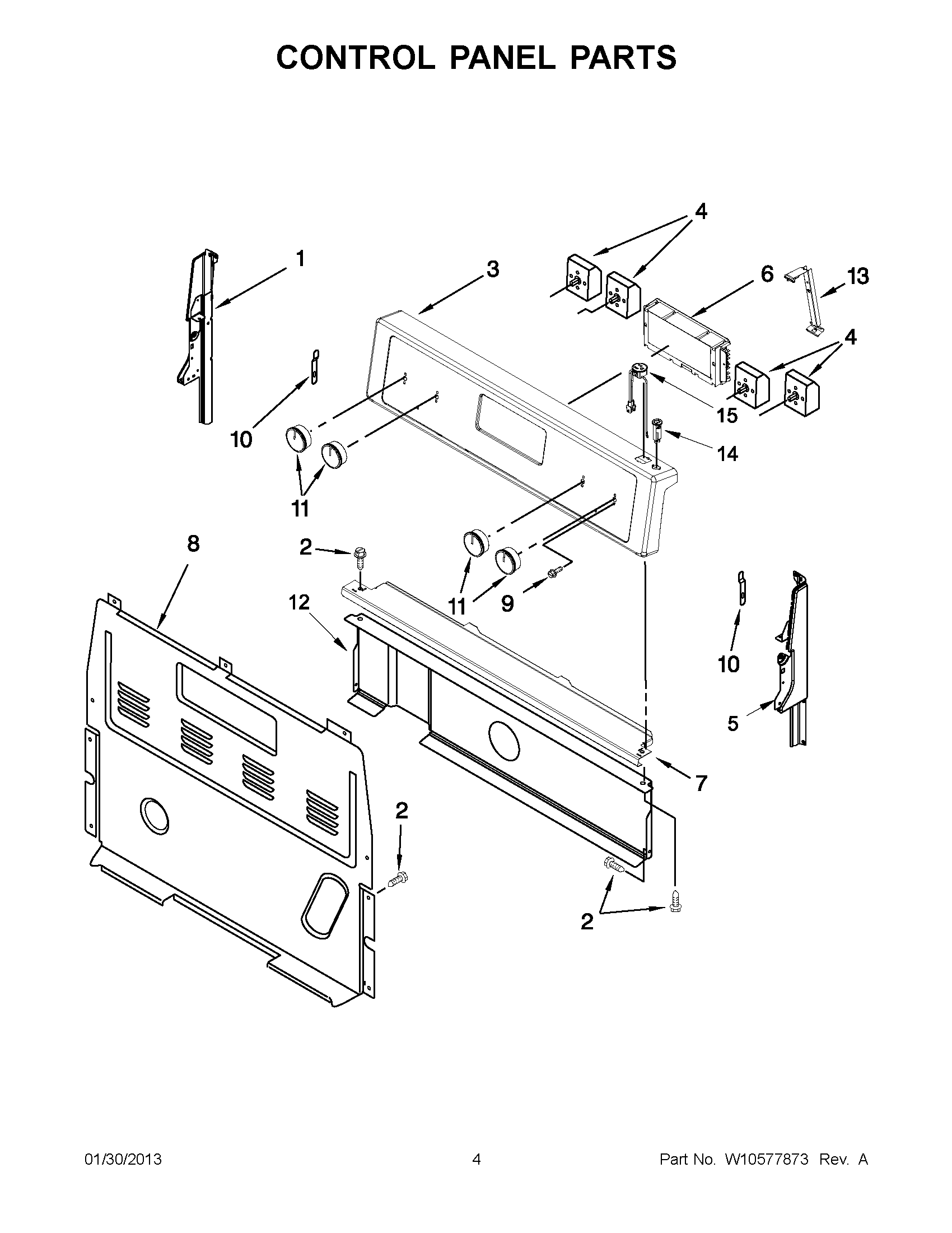

YWFC310S0BB0 02 – CONTROL PANEL PARTS

Products

Position	Product
1	W11219664 Whirlpool Endcap Panel
1	W11219365 Whirlpool Panel Endcap
2	SCREW
3	PANEL, CONSOLE (WHITE)
3	PANEL, CONSOLE (BLACK STAINLESS)
4	WP3148952 Whirlpool Oven Infinite Switch
4	WP3149400 Whirlpool Oven Infinite Switch
5	W11219370 Whirlpool Endcap Panel
5	W11219665 Whirlpool Panel Endcap
6	W10803948-includeCORE Whirlpool W10803948 Refrigerator Electronic Control Board + Core
6	W11122536 Whirlpool Electronic Control Board + Core
7	W10525121 Whirlpool Control Bracket
8	WP8272473 Whirlpool Rear Cover
9	WP3400882 Whirlpool Screw
10	3196200 Whirlpool Clip
11	WPW10490038 Whirlpool Knob
11	WPW10490037 Whirlpool Knob
12	W10134247 Whirlpool Heat Shield
13	W11230932 Whirlpool Bracket Mounting
14	W10849725 Whirlpool Electrical Outlet
14	W10861164 Whirlpool Electrical Outlet
15	WP9757602 Whirlpool Breaker
15	WP9757601 Whirlpool Breaker
