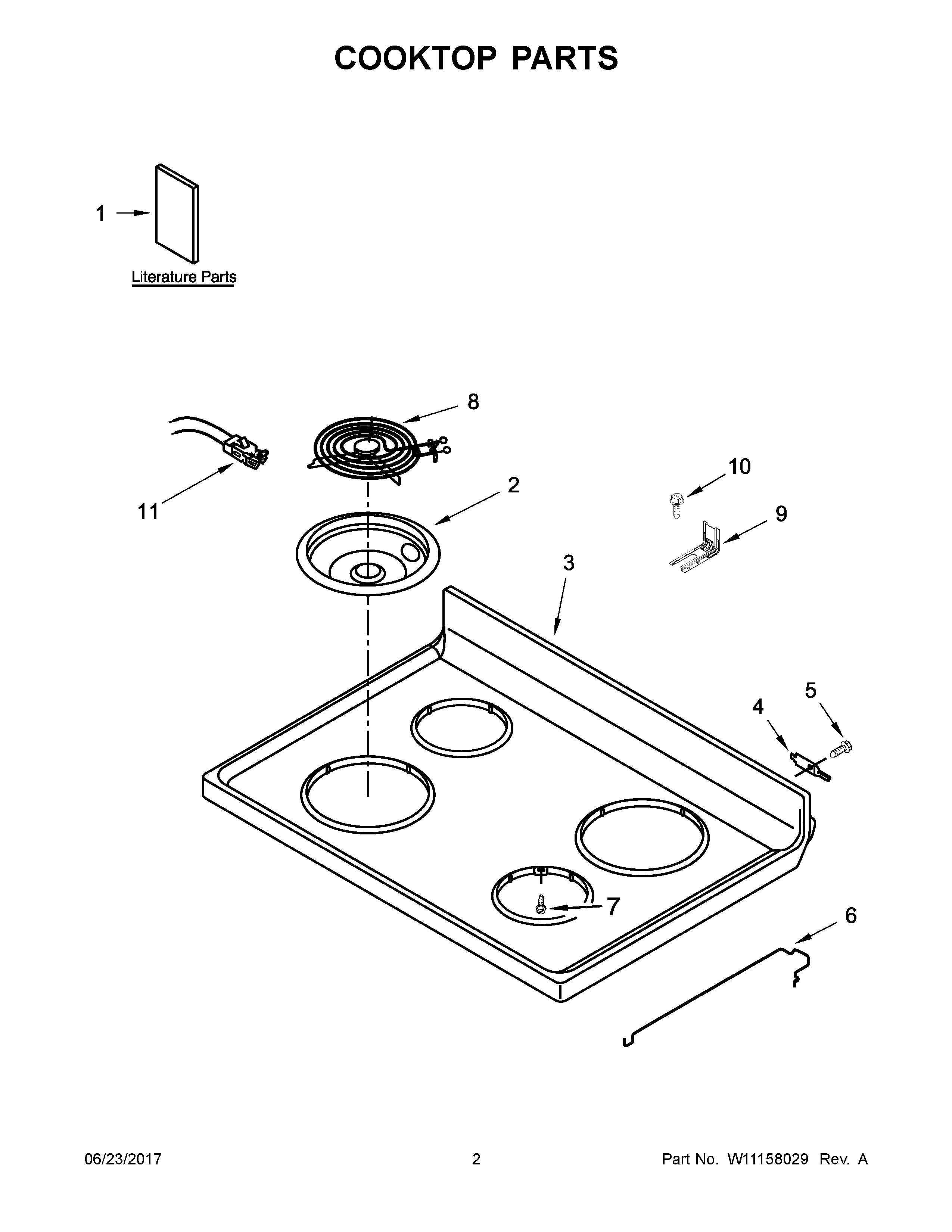

YWFC310S0ES1 02 – COOKTOP PARTS

Products

Position	Product
NI	WPW10281322 Whirlpool Connector
NI	WPW10295595 Whirlpool Wire Harness
NI	W11172524 Whirlpool Wire Harness
NI	WIRING HARNESS PARTS, HARNESS, ASSEMBLY LCC
NI	CABINET (NOT A SERVICEABLE PART)
1	INSTRUCTIONS, INSTALLATION
1A	USE AND CARE GUIDE
1E	Safer Cooking Tips (French)
1D	SAFER COOKING TIPS (ENGLISH
1B	SHEET, TECH (ENGLISH)
1C	SHEET, TECH (FRENCH)
2	WPW10196406 Whirlpool 6" Chrome Drip Bowl
2A	DRIP BOWL 8" W/HOLE CHROME
3	8195532 Whirlpool Cooktop Power Switch
3A	8195534 Whirlpool Cooktop
4	WP3195060 Whirlpool Cooktop Pin
5	SCREW
6	WP3195812 Whirlpool Cooktop Rod
7	WP3196154 Whirlpool Screw Assembly
8A	WPW10259865 Whirlpool Range 8" Surface Element
8	WPW10259868 Whirlpool Surface Heating Element
9	W11447673 Whirlpool Range Tip Anchor
10	SCREW, ANTI-TIP KIT
11	814399 Whirlpool Receptacle Kit
