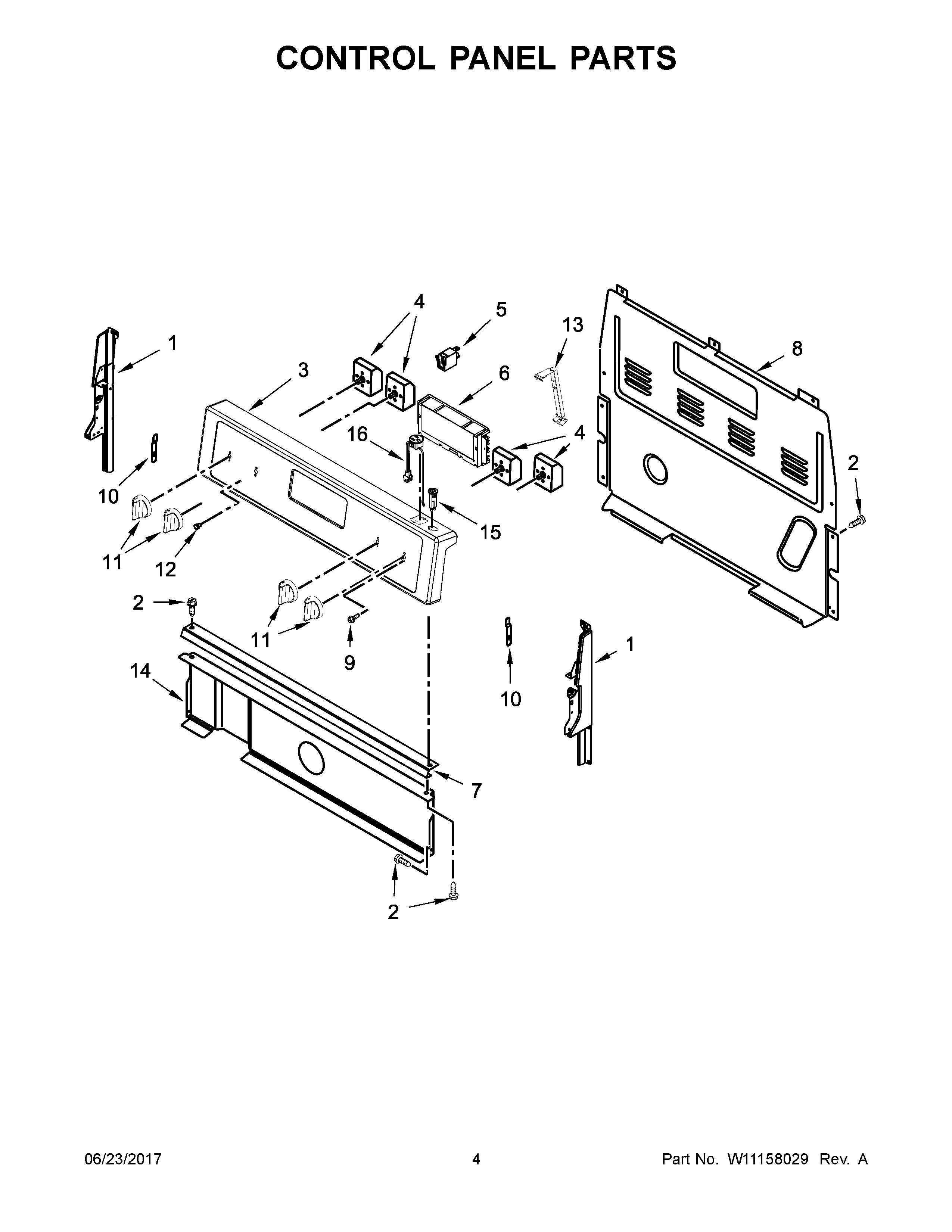

YWFC310S0ES1 03 – CONTROL PANEL PARTS

YWFC310S0ES1 03 – CONTROL PANEL PARTS

Written by

in

YWFC310S0ES1 03 – CONTROL PANEL PARTS

Products

PositionProduct
1CW11219665 Whirlpool Panel Endcap
1BW11219370 Whirlpool Endcap Panel
1W11219365 Whirlpool Panel Endcap
1AW11219664 Whirlpool Endcap Panel
2SCREW
3PANEL, CONSOLE (WHITE)
3APANEL, CONSOLE (STAINLESS)
4WP3148952 Whirlpool Oven Infinite Switch
4AWP3149400 Whirlpool Oven Infinite Switch
5WP8523265 Whirlpool Indicator Light
6W11122533-includeCORE Whirlpool W11122533 Washer Electronic Control Board
6AW11122536 Whirlpool Electronic Control Board + Core
7W10525121 Whirlpool Control Bracket
8WP8272473 Whirlpool Rear Cover
9WP3400882 Whirlpool Screw
103196200 Whirlpool Clip
11AW10836470 Whirlpool Knob Assembly
11W10853029 Whirlpool Knob
12WP3196068 Whirlpool Light Lens
13W11230932 Whirlpool Bracket Mounting
14W10134247 Whirlpool Heat Shield
15AWP9757602 Whirlpool Breaker
15WP9757601 Whirlpool Breaker
16W10849725 Whirlpool Electrical Outlet
16ARECEPTACLE (BLACK)
