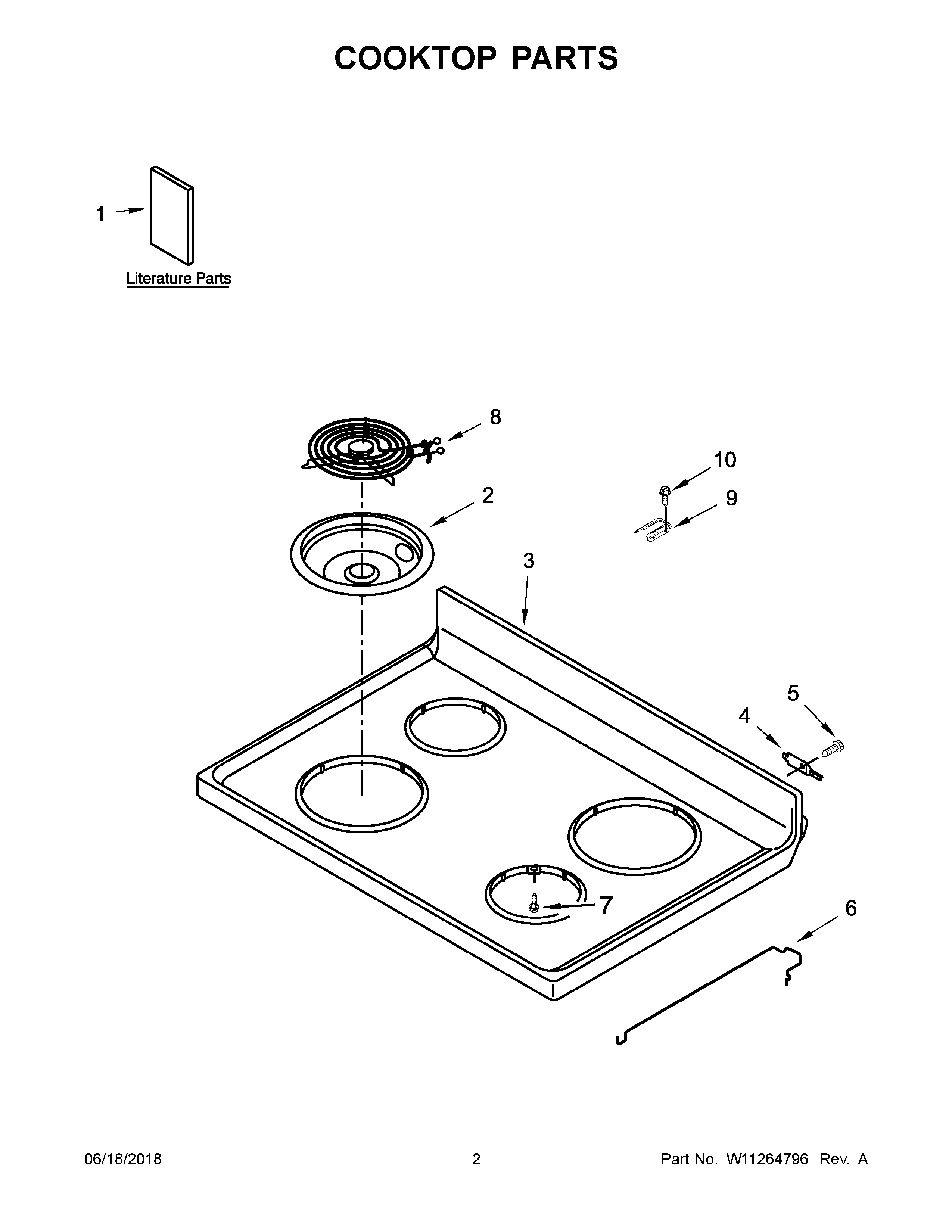

YWFC310S0ES2 02 – COOKTOP PARTS

YWFC310S0ES2 02 – COOKTOP PARTS

Written by

in

YWFC310S0ES2 02 – COOKTOP PARTS

Products

PositionProduct
NIWPW10295595 Whirlpool Wire Harness
NIW11172524 Whirlpool Wire Harness
NICABINET (NOT A SERVICEABLE PART)
NIWIRING HARNESS PARTS, HARNESS, ASSEMBLY LCC
1BSHEET, TECH
1INSTRUCTIONS, INSTALLATION
1AUSE AND CARE GUIDE
1CWIRING DIAGRAM
2WPW10196406 Whirlpool 6" Chrome Drip Bowl
2ADRIP BOWL 8" W/HOLE CHROME
38195534 Whirlpool Cooktop
4WP3195060 Whirlpool Cooktop Pin
5SCREW
6WP3195812 Whirlpool Cooktop Rod
7WP3196154 Whirlpool Screw Assembly
8ELMNT-SURF
8AW11396792 Whirlpool Surface Coil Element
9W11447673 Whirlpool Range Tip Anchor
10SCREW, ANTI-TIP KIT
