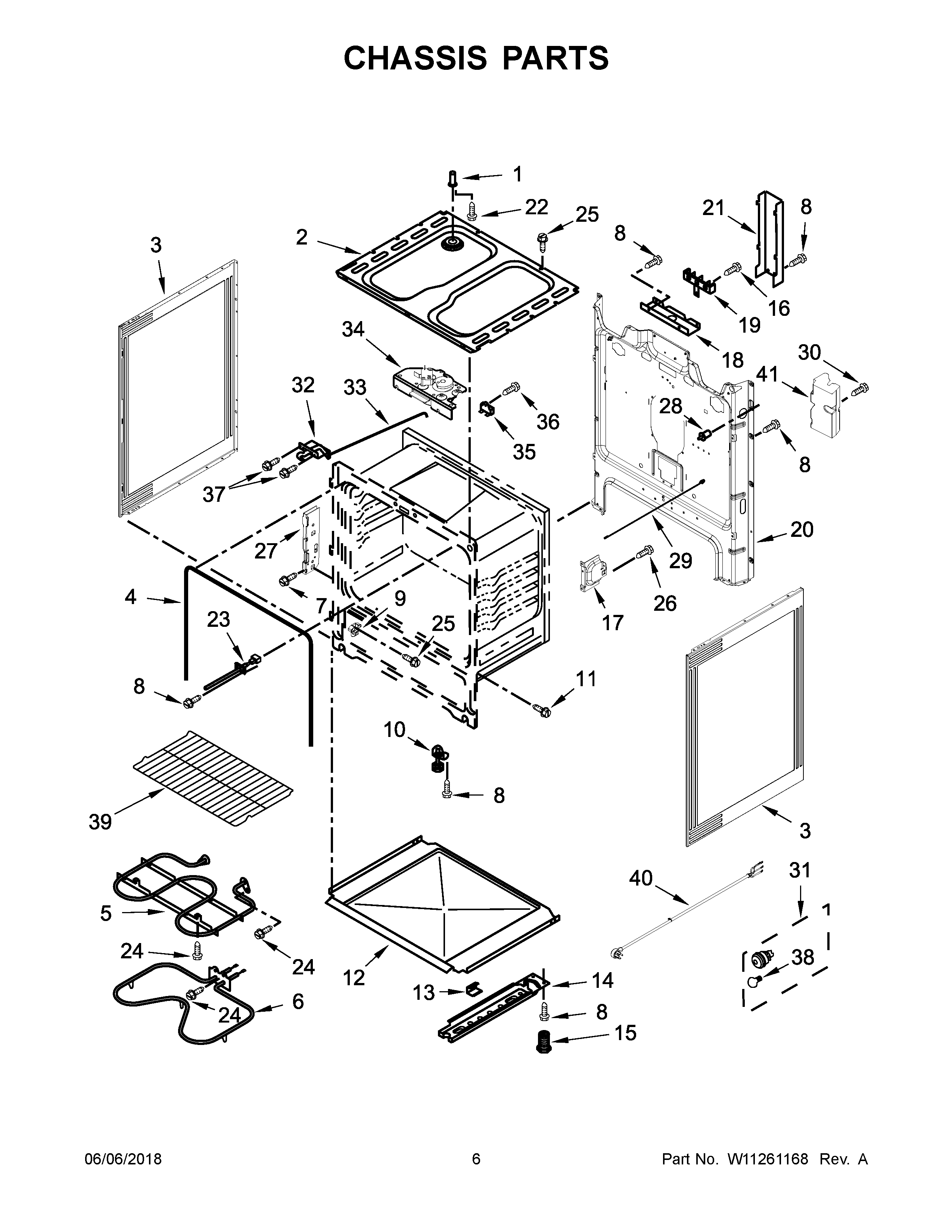

YWFC310S0EW2 04 – CHASSIS PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11311894 Whirlpool Insulation
NI	W11161831 Whirlpool Insulation
1	VENT TUBE
2	W11699791 Whirlpool Burner Box
3	WPW10575396 Whirlpool Side Panel
4	W11542153 Whirlpool Door Gasket
5	W10856603 Whirlpool Broil Element
6	W11182108 Whirlpool Bake Element
7	W10777162 Whirlpool Screw
8	SCREW
9	W10807823 Whirlpool Drawer Glide
10	WPW10341186 Whirlpool Refrigerator Front Levelling Leg
11	WPW10067840 Whirlpool Screw
12	WP8054068 Whirlpool Retainer
13	W10137382 Whirlpool Clip
14	WPW10306546 Whirlpool Base Rail
15	WPW10058460 Whirlpool Appliance Levelling Leg
16	WP3400016 Whirlpool Screw Assembly
17	W10404688 Whirlpool Bracket Support
18	W11728255 Whirlpool Service Bracket
19	WP8203546 Whirlpool Terminal Block
20	BACK, MAIN
21	WPW10326122 Whirlpool Black Cover
22	WP3196567 Whirlpool Screw
23	WPW10181986 Whirlpool Oven Sensor
24	WP3196174 Whirlpool Screw
25	WP3196175 Whirlpool Screw
26	WP3196557 Whirlpool Screw
27	W10647259 Whirlpool Hinge Receiver
28	WP9757262 Whirlpool Light Switch
29	9757239 Whirlpool Oven Door Rod
30	W11135756 Whirlpool Screw Torx
31	W11594027 Whirlpool Range Oven Light Socket
32	WP9761013 Whirlpool Door Latch
33	Rod, Latch
34	WPW10107820 Whirlpool Door Latch
35	WP3196548 Whirlpool Thermal Fuse
36	3196172 Whirlpool Oven Screw
37	W11169708 Whirlpool Screw
38	RANGE ONLY 40W 120V APPL BULB
39	RACK-OVEN
40	W11226497 Whirlpool Power Cord
41	W11135752 Whirlpool Anchor Tip
