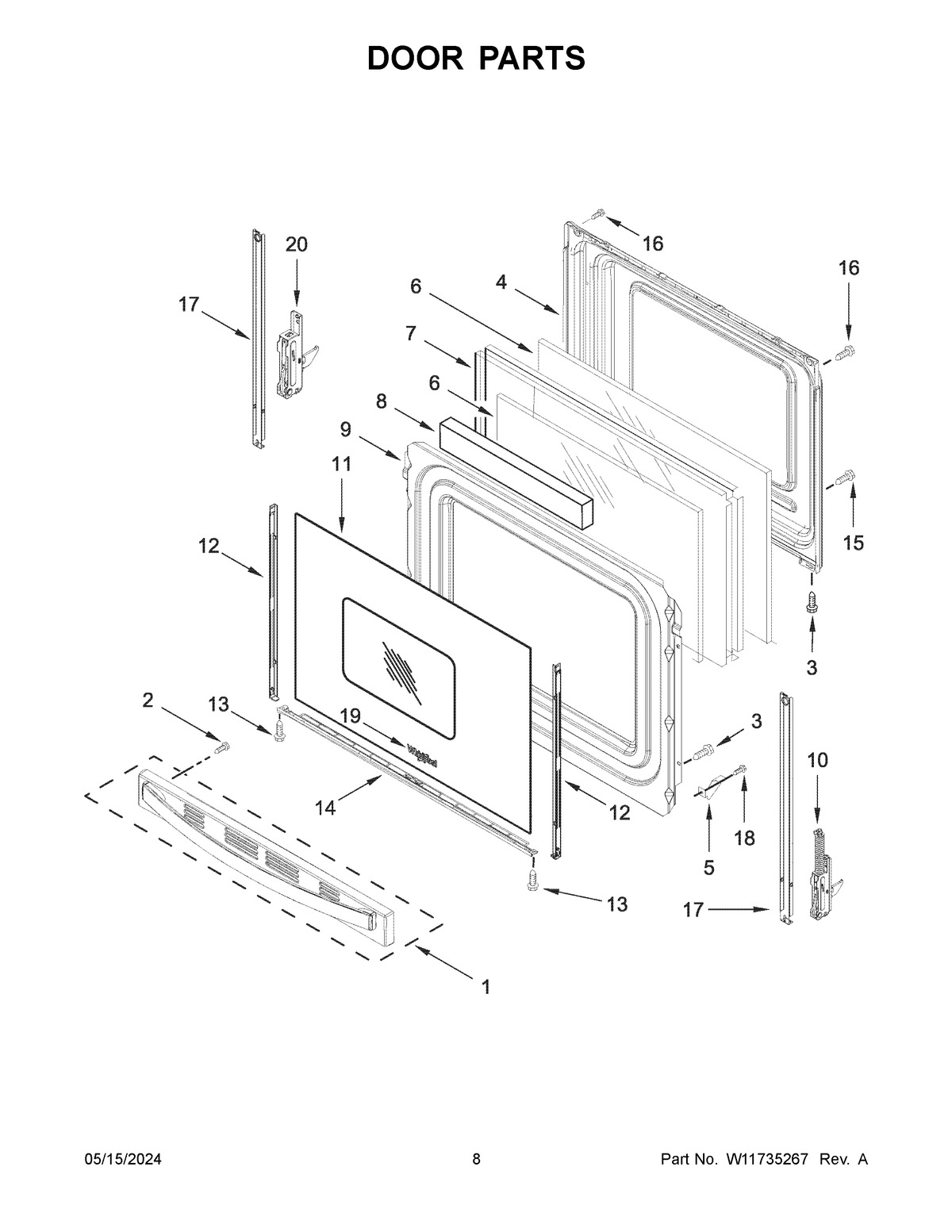

YWFC315S0JS4 05 – DOOR PARTS

YWFC315S0JS4 05 – DOOR PARTS

Written by

in

YWFC315S0JS4 05 – DOOR PARTS

Products

PositionProduct
1W11706252 Whirlpool Vent Trim
2W10831019 Whirlpool Stove Door Screw
3W10777162 Whirlpool Screw
4WP9761344 Whirlpool Door Liner
5W10137382 Whirlpool Clip
6WP8053948 Whirlpool Door Glass
7WPW10316950 Whirlpool Window Frame
8WPW10278991 Whirlpool Insulation
9W11539580 Whirlpool Retainer
10WPW10299224 Whirlpool Range Door Hinge Assembly with Spring
11WPW10409946 Whirlpool Door Glass
12AW10761014 Whirlpool Right Door Trim
12W10761018 Whirlpool Dishwasher Left Door Trim
13WP355214 Whirlpool Screw
14W11569689 Whirlpool Door Trim
15WPW10031790 Whirlpool Screw
16WPW10200660 Whirlpool Range Oven Door Handle Screw
17W11502236 Whirlpool Door Trim
18WP3196175 Whirlpool Screw
19W11178521 Whirlpool Dishwasher Nameplate
20WPW10299227 Whirlpool Range Door Hinge
