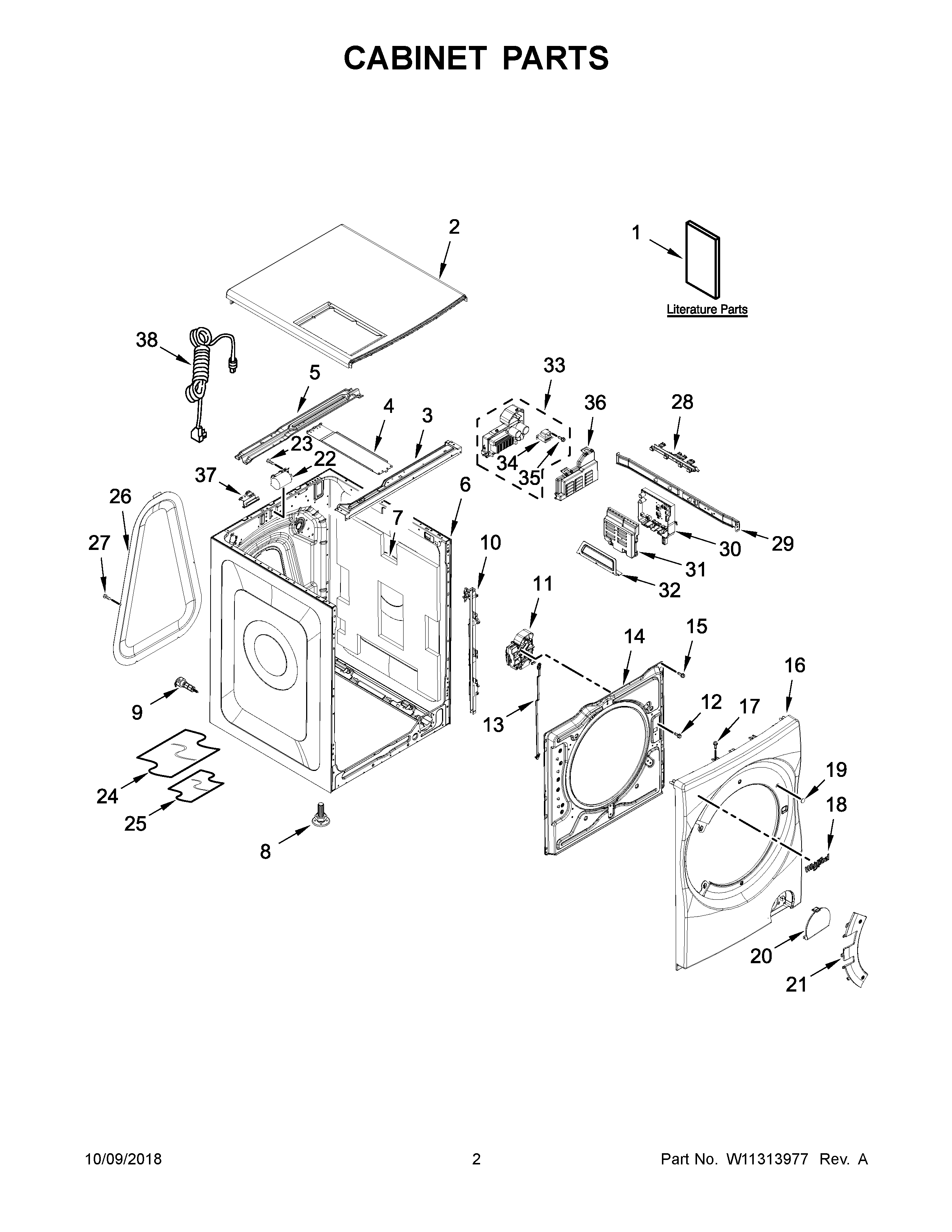

YWFC8090GX0 02 – CABINET PARTS

Products

Position	Product
NI	W11266434 Whirlpool Wire Harness
NI	W11256574 Whirlpool Wire Harness
NI	W11256575 Whirlpool Wire Harness
1D	WIRING DIAGRAM
1B	ENERGY GUIDE
1A	QUICK START GUIDE
1	USE AND CARE GUIDE
1C	TECH SHEET
2	W11283711 Whirlpool Top
3	W11243651 Whirlpool Brace
4	BRACE, REAR TO FRONT SUPPORT
5	BRACE, TOP REAR
6	W11243641 Whirlpool Cabinet
7	PAD, SOUND
8	W11643138 Whirlpool Leveling Feet
9	W11260745 Whirlpool Bolt
10	CHANNEL, CABLE
11	W11261091 Whirlpool Latch
12	W10869499 Whirlpool Screw
13	CABLE, EMERGENCY DOOR LOCK RELEASE
14	BULKHEAD, FRONT
15	SCREW
16	W11256584 Whirlpool Panel
17	SCREW
18	W11178521 Whirlpool Dishwasher Nameplate
19	W11289899 Whirlpool Cover Assembly
20	W11256585 Whirlpool Cover
21	COVER, DOOR HINGE
22	W11243674 Whirlpool Filter
23	SCREW
24	PROTECTOR, HARNESS WRAP
25	CLOTH, HARNESS PROTECTOR
26	PANEL, REAR
27	SCREW
28	RETAINER, LOWER HARNESS
29	BRACKET, ACU
30	W11260742-includeCORE Whirlpool W11260742 Washer Electronic Control Board + Core
31	COVER, ACU
32	GUARD, ACU
33	W11281876-includeCORE Whirlpool W11281876 Washer Electronic Control Board + Core
34	INDUCTOR, MCU LINE
35	W11296992 Whirlpool Screw
36	COVER, MCU
37	RETAINER, INLET VALVE – DISPENSER HARNESS
38	POWER CORD
