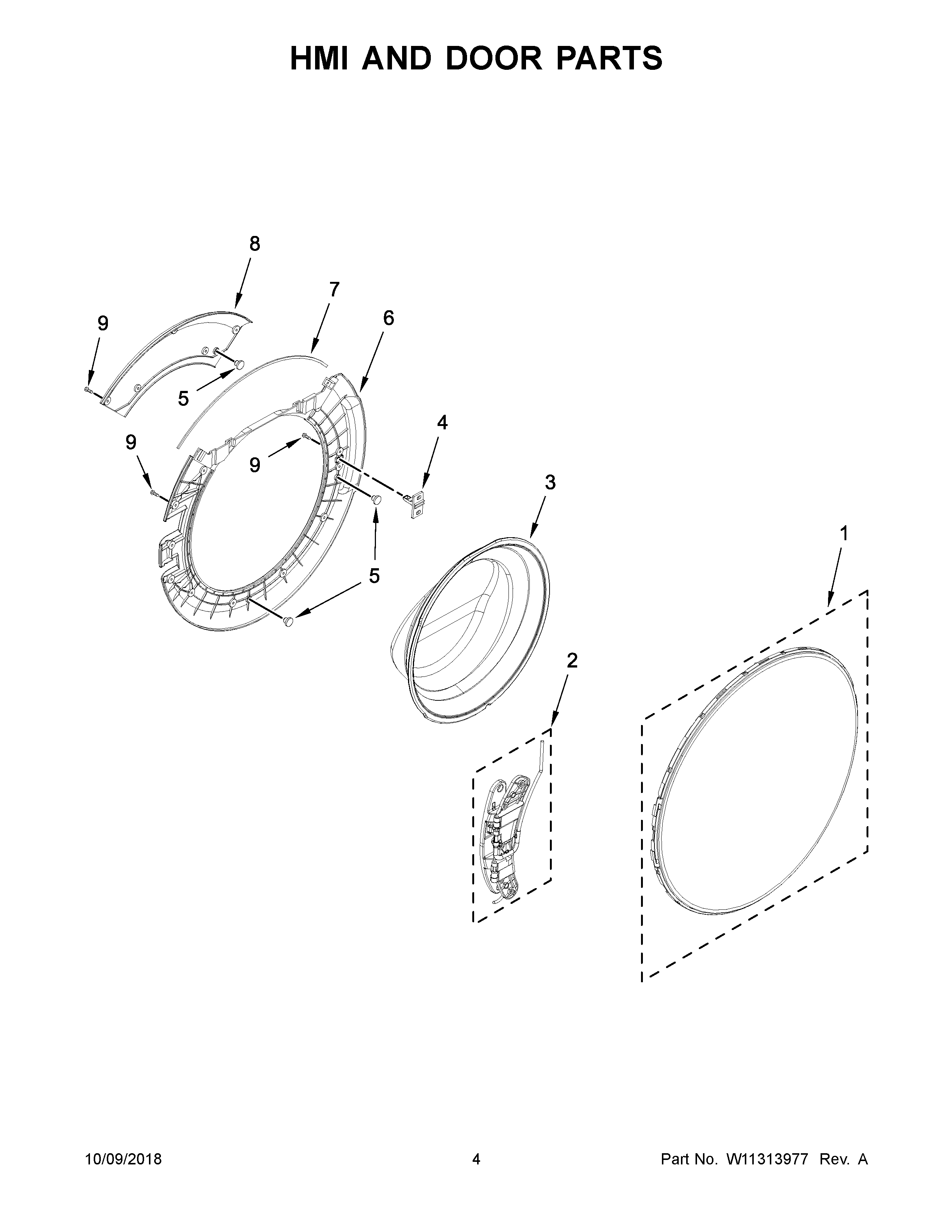

YWFC8090GX0 03 – HMI AND DOOR PARTS

Products

PositionProduct
1ASSEMBLY, OUTER DOOR AND HMI (COMPLETE)
2ASSEMBLY, DOOR HINGE AND HARNESS (COMPLETE)
3W11260747 Whirlpool Glass Door
4W11256580 Whirlpool Catch
5BUMPER, DOOR
6COVER, INNER DOOR (LOWER)
7SEAL, DOOR
8COVER, INNER DOOR (UPPER)
9SCREW
