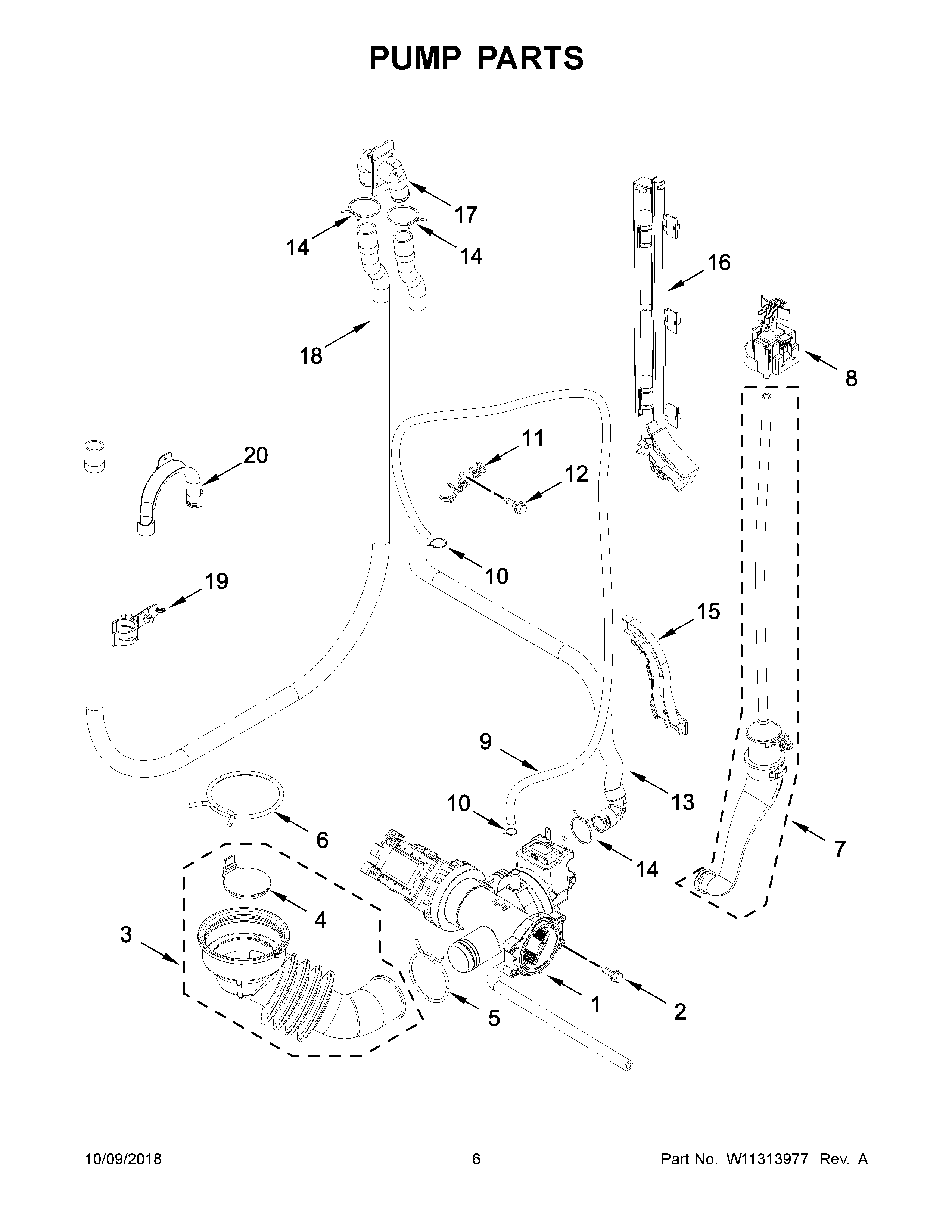

YWFC8090GX0 04 – PUMP PARTS

Products

Position	Product
1	W11266444 Whirlpool Water Pump
2	W10869499 Whirlpool Screw
3	W11261197 Whirlpool Hose
4	W11256700 Whirlpool Valve
5	CLAMP (SMALL)
6	CLAMP (LARGE)
7	W11287192 Whirlpool Dome Pressure
8	W11260743 Whirlpool Washer Water Level Switch
9	HOSE, RECIRCULATION
10	CLAMP
11	HOLDER, RECIRCULATION HOSE
12	W11296992 Whirlpool Screw
13	HOSE
14	CLAMP
15	HOLDER, INTERNAL DRAIN HOSE (LOWER)
16	HOLDER, INTERNAL DRAIN HOSE (UPPER)
17	COUPLER, INTERNAL/OUTER DRAIN HOSE
18	W11261206 Whirlpool Hose
19	POST, OUTER DRAIN HOSE SUPPORT
20	W10887723 Whirlpool Retainer
