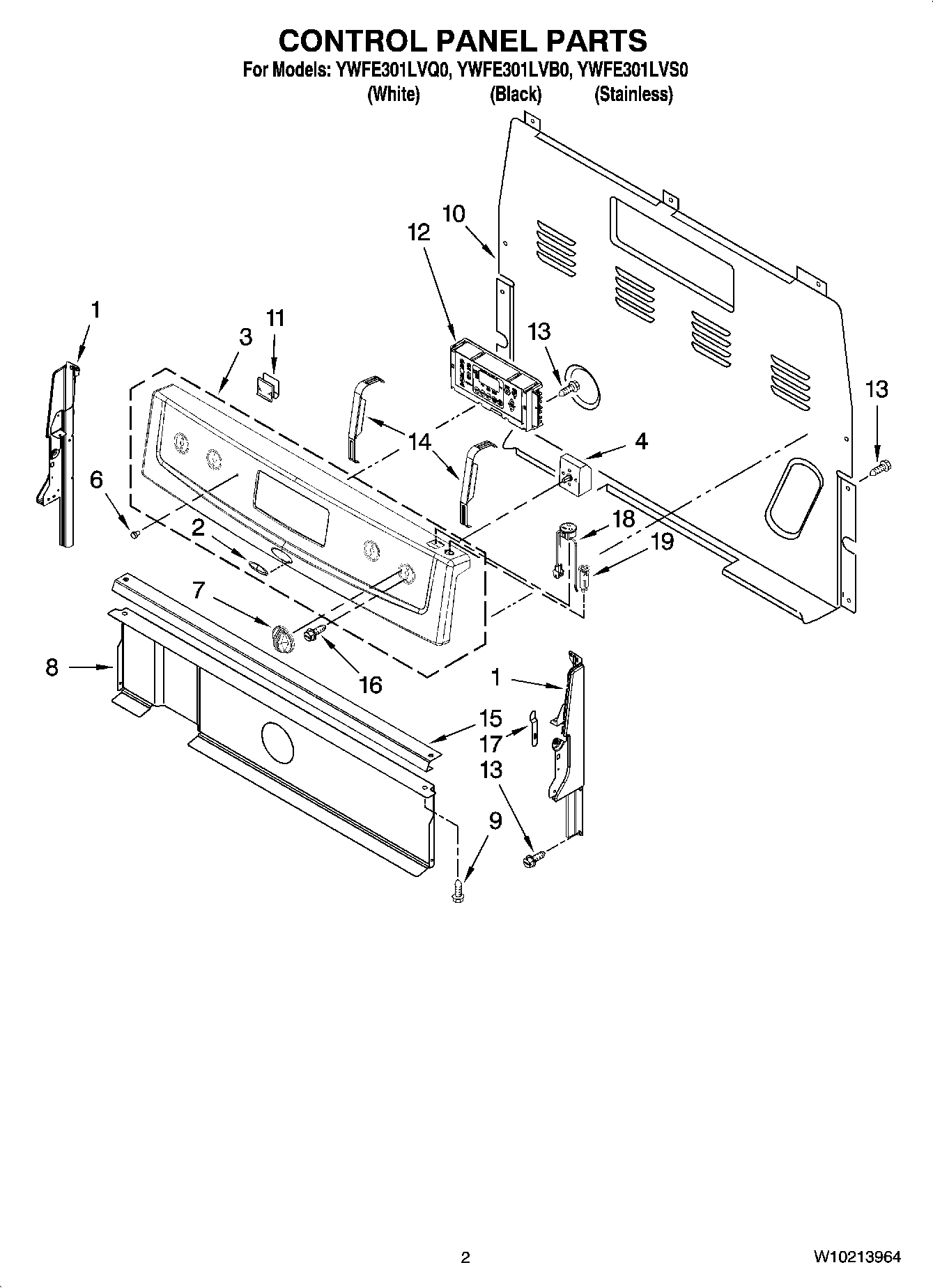

YWFE301LVB0 02 – CONTROL PANEL PARTS

YWFE301LVB0 02 – CONTROL PANEL PARTS

Written by

in

YWFE301LVB0 02 – CONTROL PANEL PARTS

Products

PositionProduct
1W11219370 Whirlpool Endcap Panel
1W11219365 Whirlpool Panel Endcap
1W11219665 Whirlpool Panel Endcap
1W11219664 Whirlpool Endcap Panel
2Nameplate
3PANEL BACKGUARD, STAINLESS
3PANEL BACKGUARD, WHITE
3PANEL BACKGUARD, BLACK
4SWITCH-INF
4WP3148952 Whirlpool Oven Infinite Switch
6WP3196068 Whirlpool Light Lens
7WP9761962 Whirlpool Range Stove Burner Control Knob
7WP9761964 Whirlpool Knob
8W10134247 Whirlpool Heat Shield
93196166 Whirlpool Screw
10WP8272473 Whirlpool Rear Cover
11WP8273564 Whirlpool Clip
12WPW10271747-includeCORE Whirlpool WPW10271747 Refrigerator Electronic Control Board + Core
12WPW10476684 Whirlpool Electronic Control Board + Core
13SCREW
14BRACKET, MOUNTING EOC
15W10525121 Whirlpool Control Bracket
16WP3400882 Whirlpool Screw
173196200 Whirlpool Clip
18W10861164 Whirlpool Electrical Outlet
18W10849725 Whirlpool Electrical Outlet
19WP9757602 Whirlpool Breaker
19WP9757601 Whirlpool Breaker
