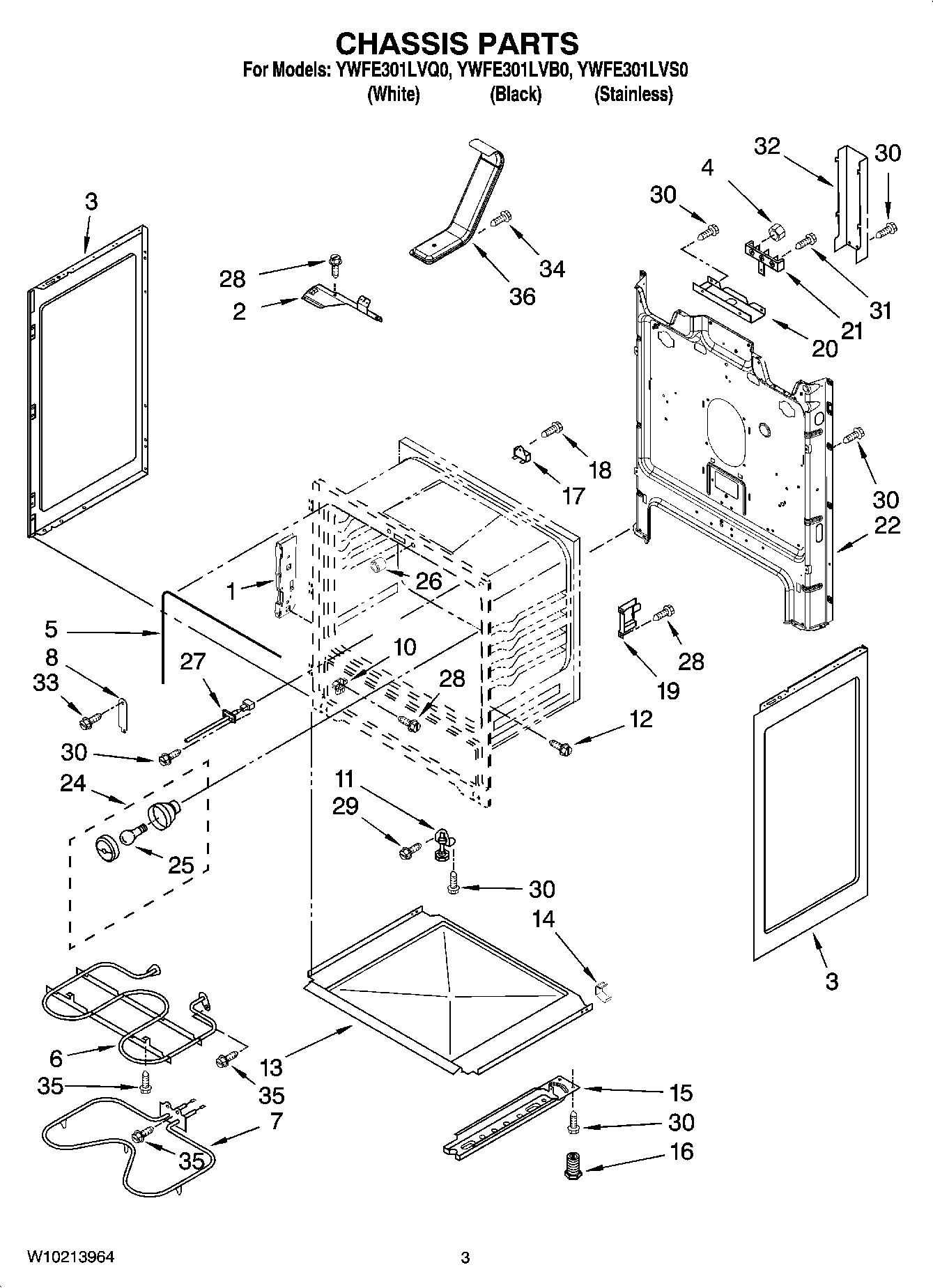

YWFE301LVB0 03 – CHASSIS PARTS

Products

Position	Product
	Insulation
	WPW10208653 Whirlpool Insulation
	8053915 Whirlpool Oven Insulation
	W11311894 Whirlpool Insulation
1	W10647259 Whirlpool Hinge Receiver
3	W11730303 Whirlpool Side Panel
3	WPW10575396 Whirlpool Side Panel
4	Nut
5	W11542153 Whirlpool Door Gasket
6	W10856603 Whirlpool Broil Element
7	WPW10308477 Whirlpool Bake Element
8	9761517 Whirlpool Oven Clip Assembly
10	WPW10114344 Whirlpool Drawer Glide
11	WP3196037 Whirlpool Leveling Foot
12	WPW10067840 Whirlpool Screw
13	WP8054068 Whirlpool Retainer
14	W10137382 Whirlpool Clip
15	WPW10306546 Whirlpool Base Rail
16	WPW10058460 Whirlpool Appliance Levelling Leg
17	WP3196548 Whirlpool Thermal Fuse
18	3196172 Whirlpool Oven Screw
19	W10404688 Whirlpool Bracket Support
20	W11728255 Whirlpool Service Bracket
21	WP8203546 Whirlpool Terminal Block
22	Back, Main
24	W11594027 Whirlpool Range Oven Light Socket
25	RANGE ONLY 40W 120V APPL BULB
26	W10877054 Whirlpool Spacer Assembly
27	WPW10181986 Whirlpool Oven Sensor
28	WP3196557 Whirlpool Screw
29	Screw
30	SCREW
31	WP3400016 Whirlpool Screw Assembly
32	WPW10326122 Whirlpool Black Cover
33	W10777162 Whirlpool Screw
34	WP489491 Whirlpool Refrigerator Screw
35	WP3196174 Whirlpool Screw
36	WPW10134285 Whirlpool Vent Tube
