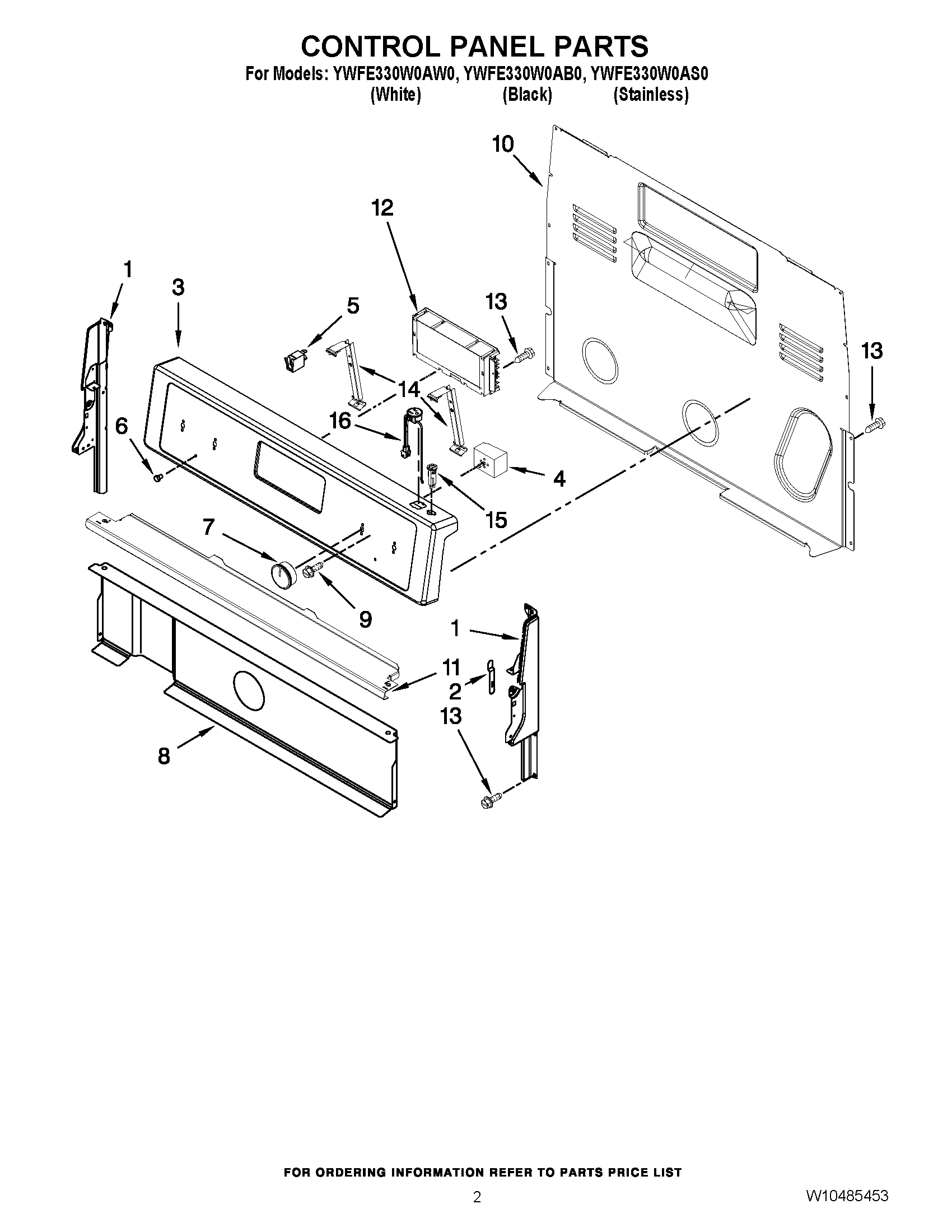

YWFE330W0AB0 02 – CONTROL PANEL PARTS

YWFE330W0AB0 02 – CONTROL PANEL PARTS

Written by

in

YWFE330W0AB0 02 – CONTROL PANEL PARTS

Products

PositionProduct
1W11219370 Whirlpool Endcap Panel
1W11219365 Whirlpool Panel Endcap
1W11219665 Whirlpool Panel Endcap
1W11219664 Whirlpool Endcap Panel
23196200 Whirlpool Clip
3PANEL, BACKGUARD (WHITE)
3PANEL, BACKGUARD (BLACK)
3PANEL, BACKGUARD (STAINLESS)
4WP3149404 Whirlpool Oven Surface Element Switch
4WPW10167742 Whirlpool Range Surface Burner Element Switch
4SWITCH-INF
5WP8523265 Whirlpool Indicator Light
6WP3196068 Whirlpool Light Lens
7WPW10490037 Whirlpool Knob
7WPW10490038 Whirlpool Knob
8W10134247 Whirlpool Heat Shield
9WP3400882 Whirlpool Screw
10WP8272473 Whirlpool Rear Cover
11W10525121 Whirlpool Control Bracket
12WPW10348617-includeCORE Whirlpool WPW10348617 Refrigerator Electronic Control Board + Core
12CONTROL, RANGE (LCC190) (STAINLESS)
13SCREW
14W11230932 Whirlpool Bracket Mounting
15WP9757602 Whirlpool Breaker
15WP9757601 Whirlpool Breaker
16W10861164 Whirlpool Electrical Outlet
16W10849725 Whirlpool Electrical Outlet
