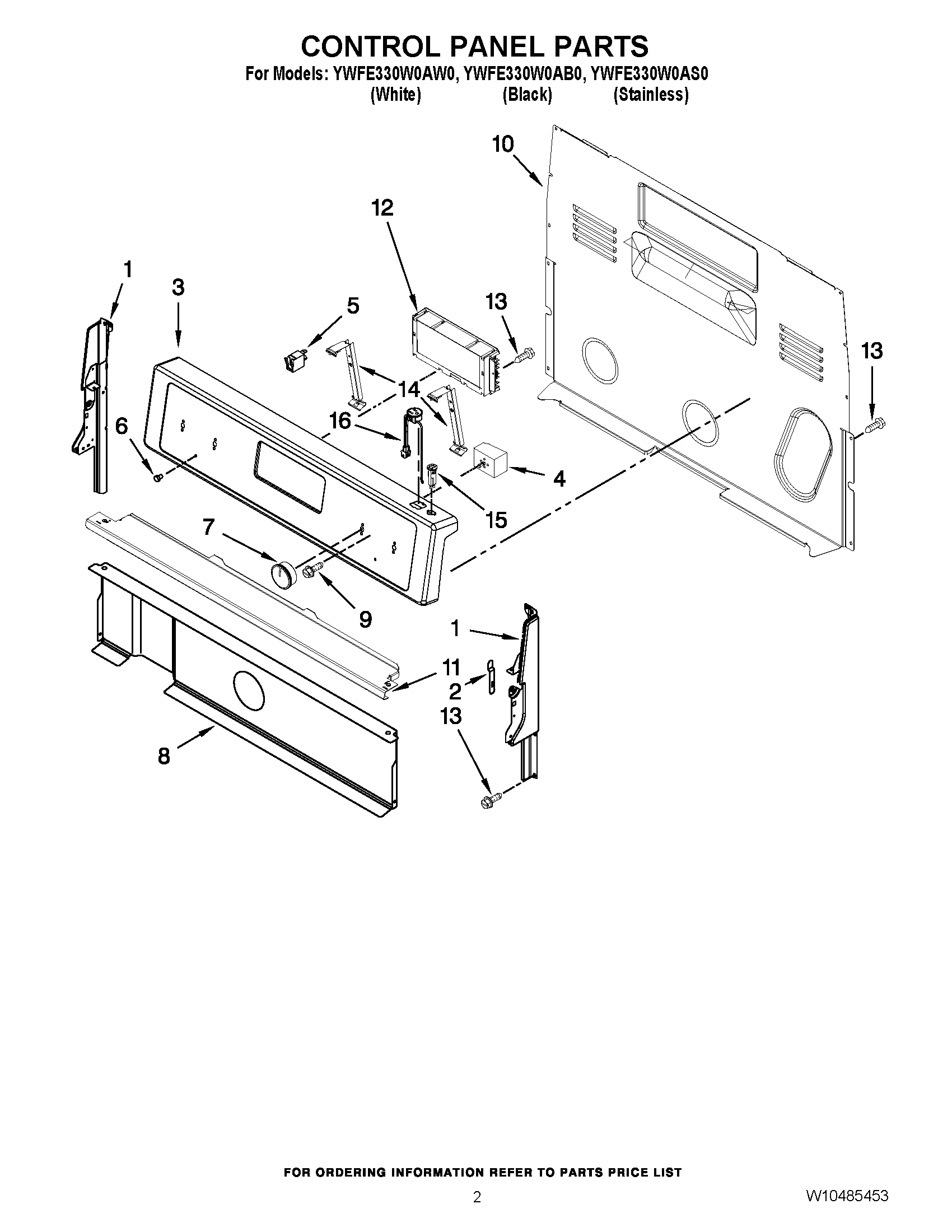

YWFE330W0AS0 02 – CONTROL PANEL PARTS

Products

Position	Product
1	W11219370 Whirlpool Endcap Panel
1	W11219365 Whirlpool Panel Endcap
1	W11219665 Whirlpool Panel Endcap
1	W11219664 Whirlpool Endcap Panel
2	3196200 Whirlpool Clip
3	PANEL, BACKGUARD (WHITE)
3	PANEL, BACKGUARD (BLACK)
3	PANEL, BACKGUARD (STAINLESS)
4	WP3149404 Whirlpool Oven Surface Element Switch
4	WPW10167742 Whirlpool Range Surface Burner Element Switch
4	SWITCH-INF
5	WP8523265 Whirlpool Indicator Light
6	WP3196068 Whirlpool Light Lens
7	WPW10490037 Whirlpool Knob
7	WPW10490038 Whirlpool Knob
8	W10134247 Whirlpool Heat Shield
9	WP3400882 Whirlpool Screw
10	WP8272473 Whirlpool Rear Cover
11	W10525121 Whirlpool Control Bracket
12	WPW10348617-includeCORE Whirlpool WPW10348617 Refrigerator Electronic Control Board + Core
12	CONTROL, RANGE (LCC190) (STAINLESS)
13	SCREW
14	W11230932 Whirlpool Bracket Mounting
15	WP9757602 Whirlpool Breaker
15	WP9757601 Whirlpool Breaker
16	W10861164 Whirlpool Electrical Outlet
16	W10849725 Whirlpool Electrical Outlet
