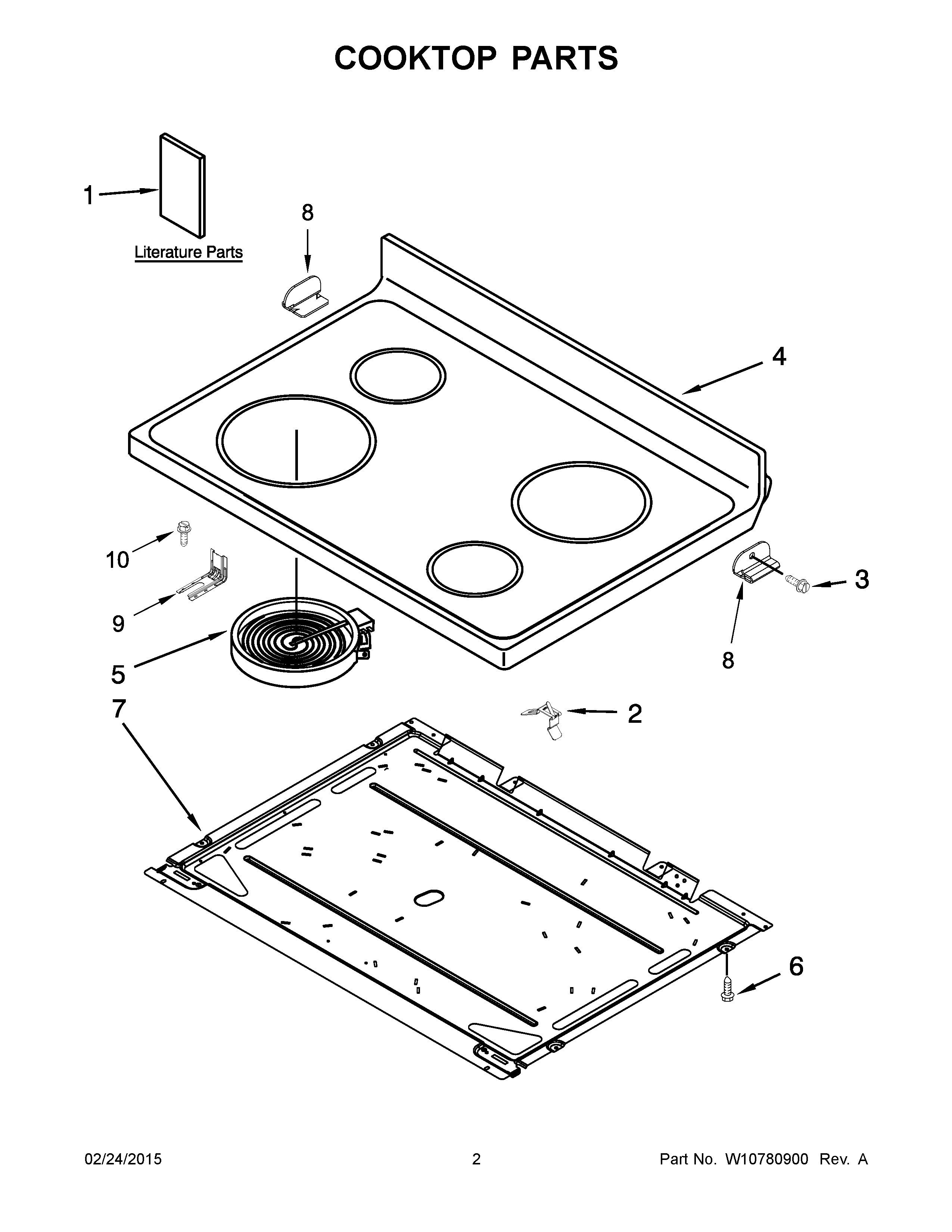

YWFE330W0EB0 02 – COOKTOP PARTS

YWFE330W0EB0 02 – COOKTOP PARTS

Written by

in

YWFE330W0EB0 02 – COOKTOP PARTS

Products

PositionProduct
NIW10273581 Whirlpool Wire Harness
NICABINET (NOT A SERVICEABLE PART)
NIW10273584 Whirlpool Wire Harness
NIW11172424 Whirlpool Wire Harness
NIHARNESS, WIRE (MAIN)
NIW10465644 Whirlpool Wire Harness
1ATECH SHEET (ENGLISH)
1BTECH SHEET (FRENCH)
1EUSE AND CARE GUIDE
1DSafer Cooking Tips (French)
1CSAFER COOKING TIPS (ENGLISH
1INSTRUCTIONS, INSTALLATION
2WPW10225448 Whirlpool Spring Assembly
3SCREW
4AW10472027 Whirlpool Whirlpool Cooktop
4W10472025 Whirlpool Cooktop
5W10823728 Whirlpool Surface Element
5AELMNT-SURF
5BWP8273993 Whirlpool Surface Element
6WP3196557 Whirlpool Screw
7PAN
8AW10607642 Whirlpool Clip
8W10607641 Whirlpool Clip
9W11447673 Whirlpool Range Tip Anchor
10SCREW, ANTI-TIP KIT
