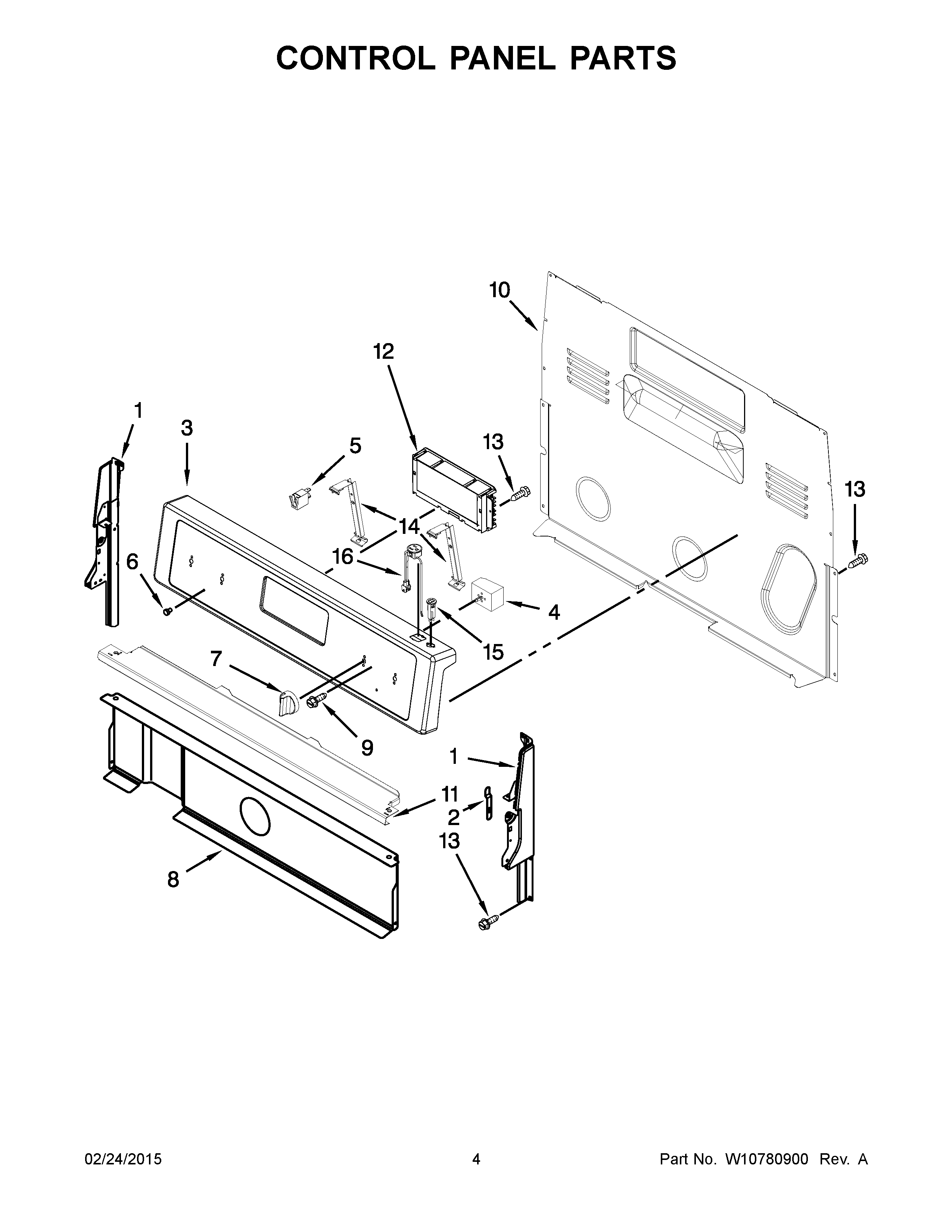

YWFE330W0EB0 03 – CONTROL PANEL PARTS

YWFE330W0EB0 03 – CONTROL PANEL PARTS

Written by

in

YWFE330W0EB0 03 – CONTROL PANEL PARTS

Products

PositionProduct
1BW11219664 Whirlpool Endcap Panel
1AW11219370 Whirlpool Endcap Panel
1W11219365 Whirlpool Panel Endcap
1CW11219665 Whirlpool Panel Endcap
23196200 Whirlpool Clip
3ACONSOLE, PANEL (BLACK)
3CONSOLE, PANEL (WHITE)
3BCONSOLE, PANEL (STAINLESS)
4WPW10167742 Whirlpool Range Surface Burner Element Switch
4BSWITCH-INF
4AWP3149404 Whirlpool Oven Surface Element Switch
5WP8523265 Whirlpool Indicator Light
6WP3196068 Whirlpool Light Lens
7AW10836470 Whirlpool Knob Assembly
7W10853029 Whirlpool Knob
8W10134247 Whirlpool Heat Shield
9WP3400882 Whirlpool Screw
10WP8272473 Whirlpool Rear Cover
11W10525121 Whirlpool Control Bracket
12ACONTROL, RANGE (LCC190) (BLACK)
12CONTROL, RANGE (LCC190) (WHITE)
12BCONTROL, RANGE (LCC190) (STAINLESS)
13SCREW
14W11230932 Whirlpool Bracket Mounting
15AWP9757602 Whirlpool Breaker
15WP9757601 Whirlpool Breaker
16AW10861164 Whirlpool Electrical Outlet
16W10849725 Whirlpool Electrical Outlet
