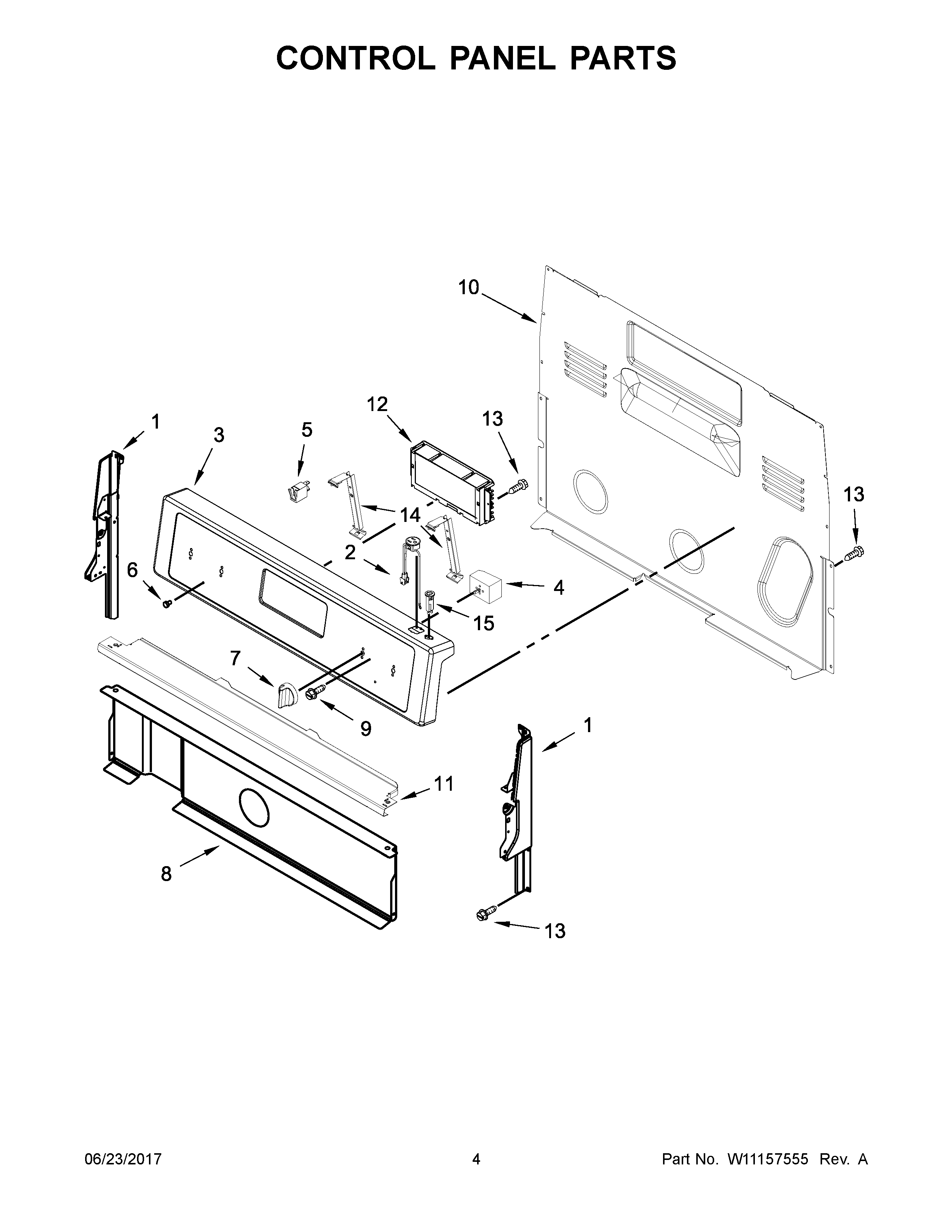

YWFE330W0ES1 03 – CONTROL PANEL PARTS
Written by
in
YWFE330W0ES1 03 – CONTROL PANEL PARTS
Products
Position
Product
1A
W11219370 Whirlpool Endcap Panel
1
W11219365 Whirlpool Panel Endcap
1B
W11219664 Whirlpool Endcap Panel
1C
W11219665 Whirlpool Panel Endcap
2
W10849725 Whirlpool Electrical Outlet
2A
RECEPTACLE (BLACK)
3A
CONSOLE, PANEL (STAINLESS)
3
CONSOLE, PANEL (WHITE)
4
WPW10167742 Whirlpool Range Surface Burner Element Switch
4A
WP3149404 Whirlpool Oven Surface Element Switch
4B
SWITCH-INF
5
WP8523265 Whirlpool Indicator Light
6
WP3196068 Whirlpool Light Lens
7
W10853029 Whirlpool Knob
7A
W10836470 Whirlpool Knob Assembly
8
W10134247 Whirlpool Heat Shield
9
WP3400882 Whirlpool Screw
10
WP8272473 Whirlpool Rear Cover
11
W10525121 Whirlpool Control Bracket
12
CONTROL, RANGE (LCC190) (WHITE)
12A
CONTROL, RANGE (LCC190) (STAINLESS)
13
SCREW
14
W11230932 Whirlpool Bracket Mounting
15A
WP9757602 Whirlpool Breaker
15
WP9757601 Whirlpool Breaker
←
