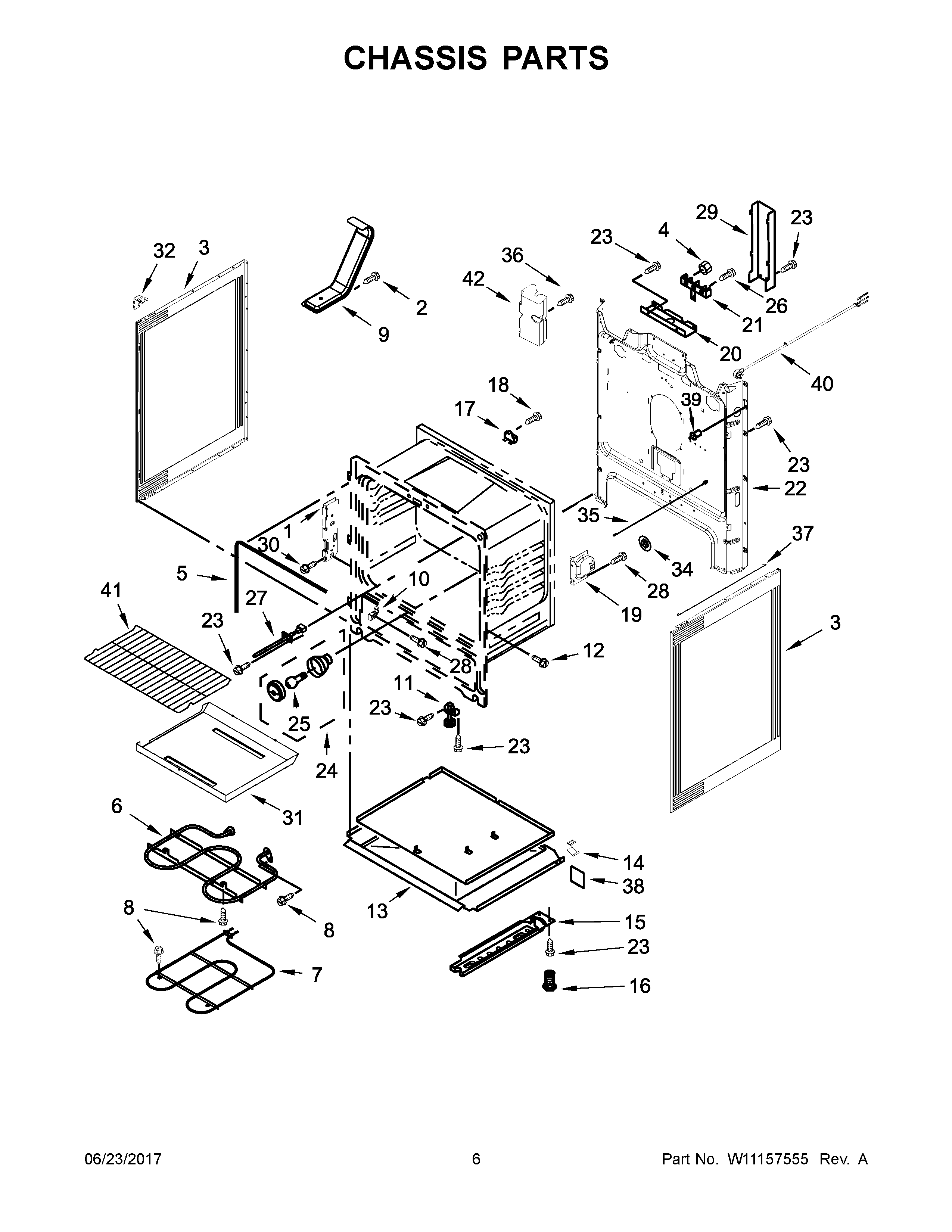

YWFE330W0ES1 04 – CHASSIS PARTS

Products

Position	Product
NI	W11684918 Whirlpool Insulation
NI	WPW10208653 Whirlpool Insulation
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11311894 Whirlpool Insulation
1	W10647259 Whirlpool Hinge Receiver
2	WP3196154 Whirlpool Screw Assembly
3A	W11730303 Whirlpool Side Panel
3	WPW10575396 Whirlpool Side Panel
4	Nut
5	W11542153 Whirlpool Door Gasket
6	W10856603 Whirlpool Broil Element
7	WP9755770 Whirlpool Bake Element
8	WP3196174 Whirlpool Screw
9	WPW10134285 Whirlpool Vent Tube
10	W10807823 Whirlpool Drawer Glide
11	WPW10341186 Whirlpool Refrigerator Front Levelling Leg
12	WPW10067840 Whirlpool Screw
13	W10134121 Whirlpool Insulation Tray
14	W10137382 Whirlpool Clip
15	WPW10306546 Whirlpool Base Rail
16	WPW10058460 Whirlpool Appliance Levelling Leg
17	WP3196548 Whirlpool Thermal Fuse
18	3196172 Whirlpool Oven Screw
19	W10404688 Whirlpool Bracket Support
20	W11728255 Whirlpool Service Bracket
21	WP8203546 Whirlpool Terminal Block
22	BACK, MAIN
23	SCREW
24	W11594027 Whirlpool Range Oven Light Socket
25	RANGE ONLY 40W 120V APPL BULB
26	WP3400016 Whirlpool Screw Assembly
27	WPW10181986 Whirlpool Oven Sensor
28	WP3196557 Whirlpool Screw
29	WPW10326122 Whirlpool Black Cover
30	W10777162 Whirlpool Screw
31	W10183712 Whirlpool Bake Tray
32	W10183541 Whirlpool Clip Assembly
33	W10134125 Whirlpool Retainer Clip
34	WP3400968 Whirlpool Nut
35	9757239 Whirlpool Oven Door Rod
36	W11135752 Whirlpool Anchor Tip
37	Rod, Latch
38	W10646923 Whirlpool Insulator
39	WP9757262 Whirlpool Light Switch
40	W11226497 Whirlpool Power Cord
41	RACK-OVEN
42	W11135756 Whirlpool Screw Torx
