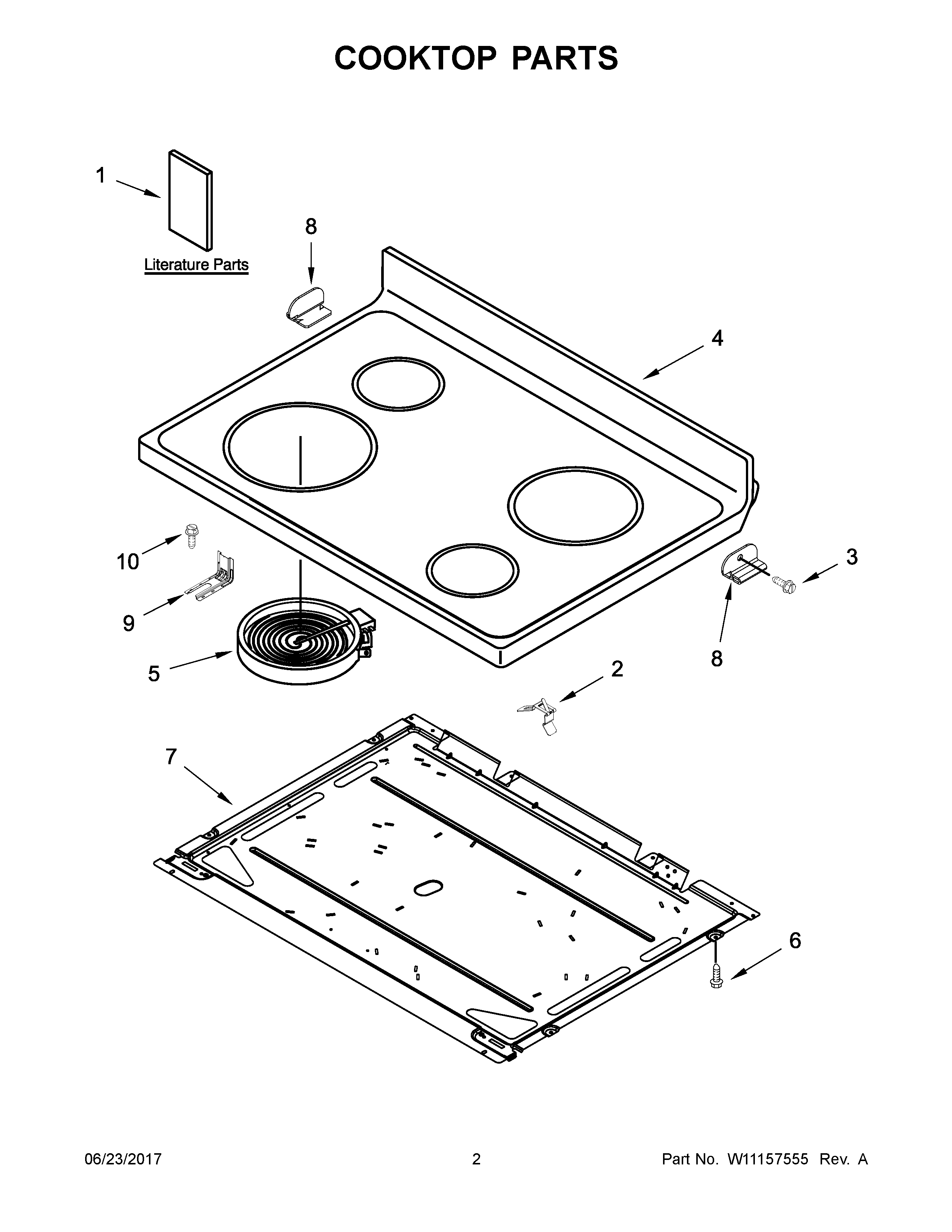

YWFE330W0EW1 02 – COOKTOP PARTS

Products

Position	Product
NI	HARNESS, WIRE (COOKTOP LEFT)
NI	W11172424 Whirlpool Wire Harness
NI	W10465644 Whirlpool Wire Harness
NI	HARNESS, WIRE (COOKTOP RIGHT)
NI	HARNESS, WIRE (MAIN)
NI	CABINET (NOT A SERVICEABLE PART)
1E	USE AND CARE GUIDE
1D	Safer Cooking Tips (French)
1B	TECH SHEET (FRENCH)
1C	SAFER COOKING TIPS (ENGLISH
1A	TECH SHEET (ENGLISH)
1	INSTRUCTIONS, INSTALLATION
2	WPW10225448 Whirlpool Spring Assembly
3	SCREW
4	W10472025 Whirlpool Cooktop
4A	W10472027 Whirlpool Whirlpool Cooktop
5	W10895828 Whirlpool Surface Element
5B	WP8273993 Whirlpool Surface Element
5A	ELMNT-SURF
6	WP3196557 Whirlpool Screw
7	PAN
8A	W10607642 Whirlpool Clip
8	W10607641 Whirlpool Clip
9	W11447673 Whirlpool Range Tip Anchor
10	SCREW, ANTI-TIP KIT
