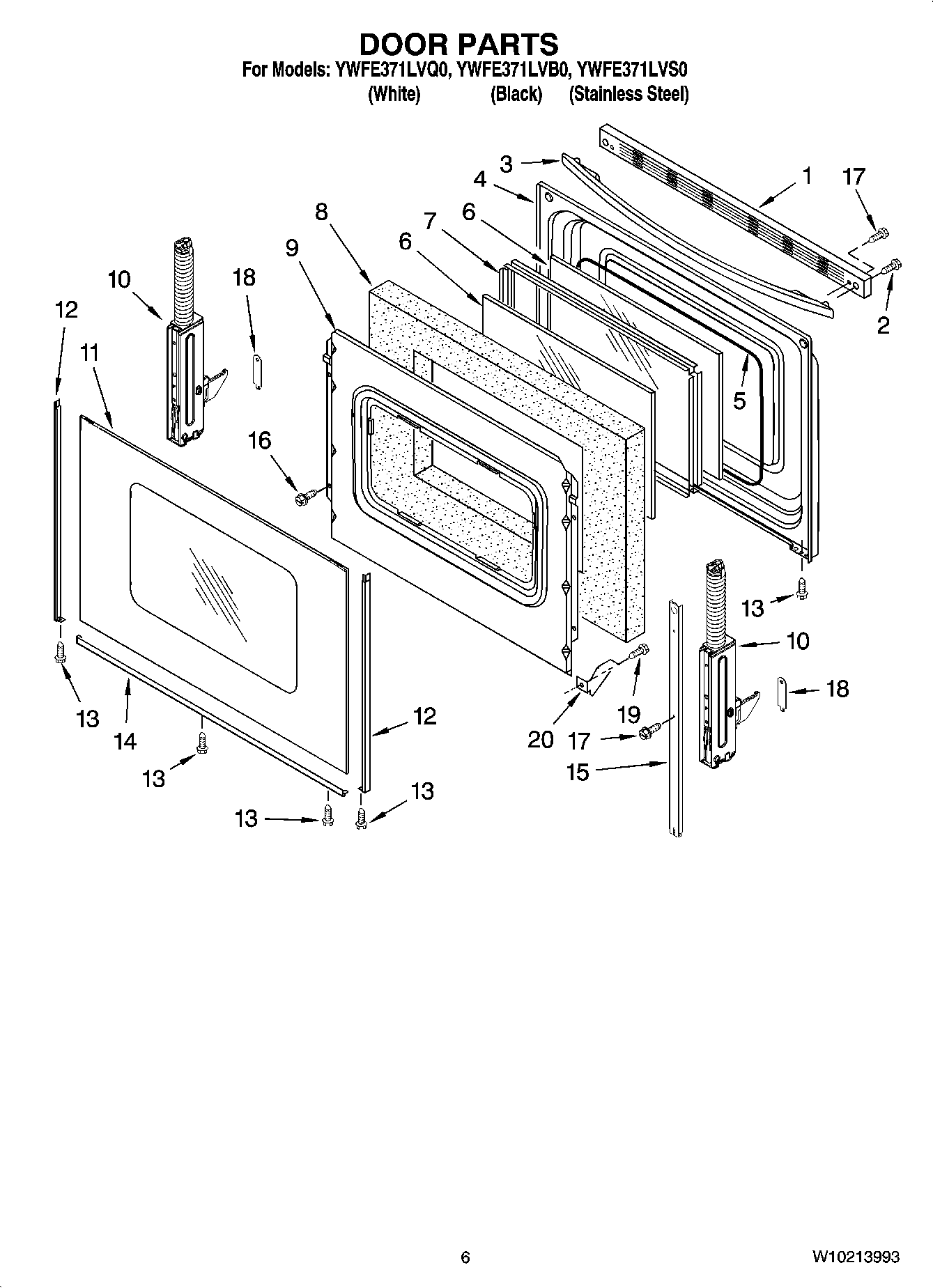

YWFE371LVB0 05 – DOOR PARTS, OPTIONAL PARTS

YWFE371LVB0 05 – DOOR PARTS, OPTIONAL PARTS

Written by

in

YWFE371LVB0 05 – DOOR PARTS, OPTIONAL PARTS

Products

PositionProduct
WPL ARI139578A
8212471 Whirlpool Oven Paint
3184020 Whirlpool Oven Wire
Grease
WP3196154 Whirlpool Screw Assembly
WPL ARI139579A
W11134592 Whirlpool Wire Harness
W10170247 Whirlpool Wire Harness
Harness, Wire (Warming Drawer)
W11172524 Whirlpool Wire Harness
WPL W10174445
W10174427 Whirlpool Wire Harness
WPL ARI139574A
WPL ARI139575A
WPL ARI139576A
WPL ARI139577A
W10465644 Whirlpool Wire Harness
3400964 Whirlpool Oven Clip
350930 Whirlpool White Spray Paint
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
285006 Whirlpool Spray
W11447673 Whirlpool Range Tip Anchor
350942 Whirlpool Spray Paint
FOIL, ALUMINUM OVEN (18“ X 25 )
WPW10208653 Whirlpool Insulation
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
511873 Whirlpool Refrigerator Paint
WPL 799832
1W10817433 Whirlpool Vent Trim
1TRIM-VENT
2W10817436 Whirlpool Screw
3W10817434 Whirlpool Door Handle
3WPW10144883 Whirlpool Door Handle
3WPW10323589 Whirlpool Door Handle
4WP9761344 Whirlpool Door Liner
5Seal, Window
6WP8053948 Whirlpool Door Glass
7WPW10316950 Whirlpool Window Frame
8WPW10278991 Whirlpool Insulation
9W11539580 Whirlpool Retainer
10W10347466 Whirlpool Door Hinge
11WPW10118454 Whirlpool Door Outer Glass White
11WPW10118455 Whirlpool Door Glass Assembly
11WPW10330077 Whirlpool Door Glass
12WP8523172 Whirlpool Left Door Trim
128184858 Whirlpool Door Trim
12W10761014 Whirlpool Right Door Trim
12WP8523166 Whirlpool Door Trim
12W10761018 Whirlpool Dishwasher Left Door Trim
13W10491985 Whirlpool Screw
14WP8523175 Whirlpool Door Trim Assembly
14WP8523177 Whirlpool Door Trim Assembly
15W11502236 Whirlpool Door Trim
16WPW10031790 Whirlpool Screw
17WPW10200660 Whirlpool Range Oven Door Handle Screw
189761517 Whirlpool Oven Clip Assembly
19WP3196175 Whirlpool Screw
20W10137382 Whirlpool Clip
