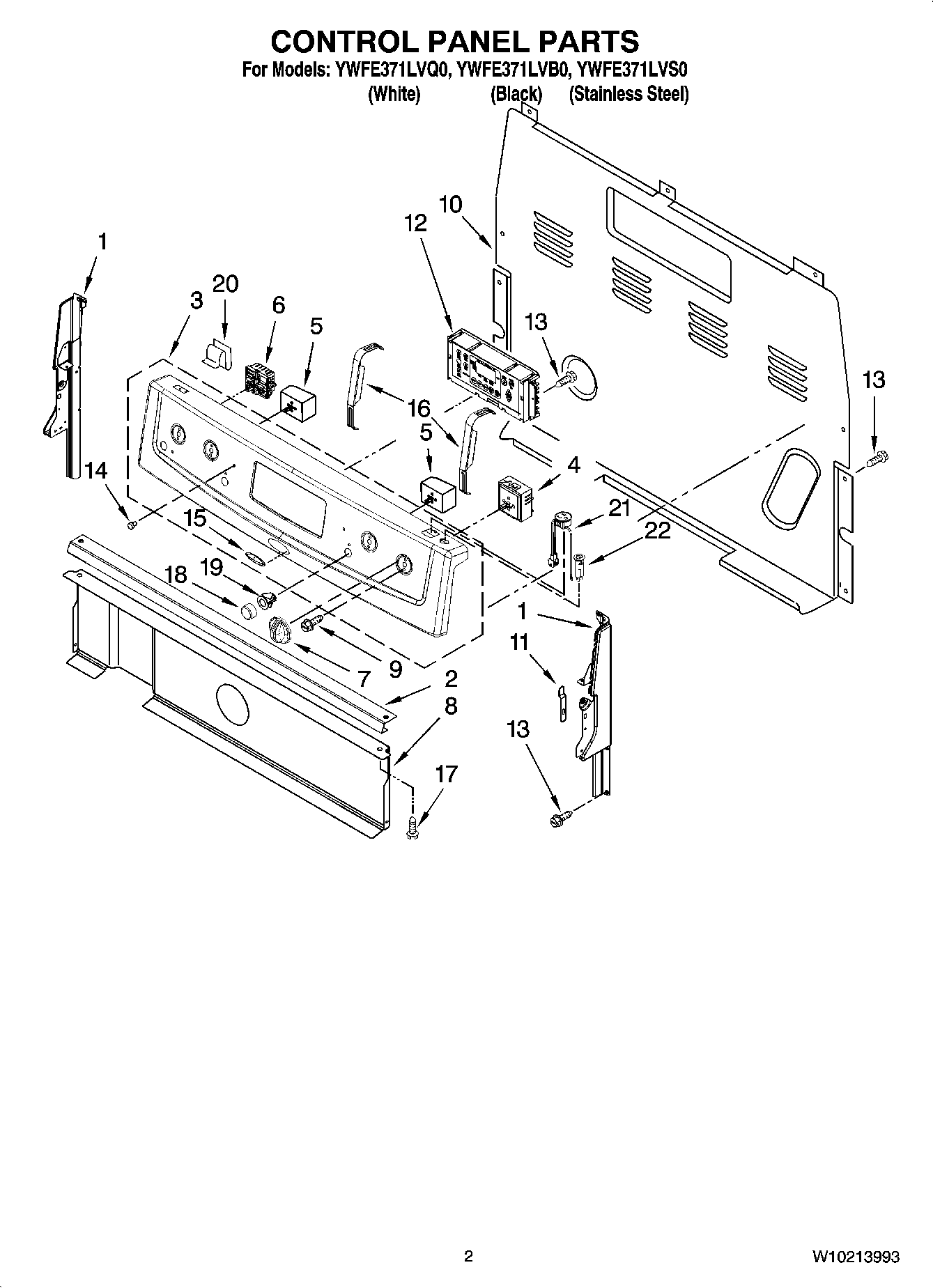

YWFE371LVQ0 02 – CONTROL PANEL PARTS

YWFE371LVQ0 02 – CONTROL PANEL PARTS

Written by

in

YWFE371LVQ0 02 – CONTROL PANEL PARTS

Products

PositionProduct
1W11219370 Whirlpool Endcap Panel
1W11219664 Whirlpool Endcap Panel
1W11219665 Whirlpool Panel Endcap
1W11219365 Whirlpool Panel Endcap
2W10525121 Whirlpool Control Bracket
3Console (White)
3Console (Stainless Steel)
3Console (Black)
4WPW10149355 Whirlpool Infinite Switch
5WP3149404 Whirlpool Oven Surface Element Switch
6WPW10167742 Whirlpool Range Surface Burner Element Switch
7WP9761962 Whirlpool Range Stove Burner Control Knob
7WP9761964 Whirlpool Knob
8W10134247 Whirlpool Heat Shield
9WP3400882 Whirlpool Screw
10WP8272473 Whirlpool Rear Cover
113196200 Whirlpool Clip
12WPW10476353 Whirlpool Electronic Control Board
13SCREW
14WP3196068 Whirlpool Light Lens
15Nameplate
16BRACKET, MOUNTING EOC
17WP3400832 Whirlpool Screw
173196166 Whirlpool Screw
189757492 Whirlpool Oven Push Button
189758491 Whirlpool Oven Push Button
19W10217758 Whirlpool Switch Bezel
19W10217760 Whirlpool Switch Bezel
20WP8273564 Whirlpool Clip
21W10861164 Whirlpool Electrical Outlet
21W10849725 Whirlpool Electrical Outlet
22WP9757601 Whirlpool Breaker
22WP9757602 Whirlpool Breaker
