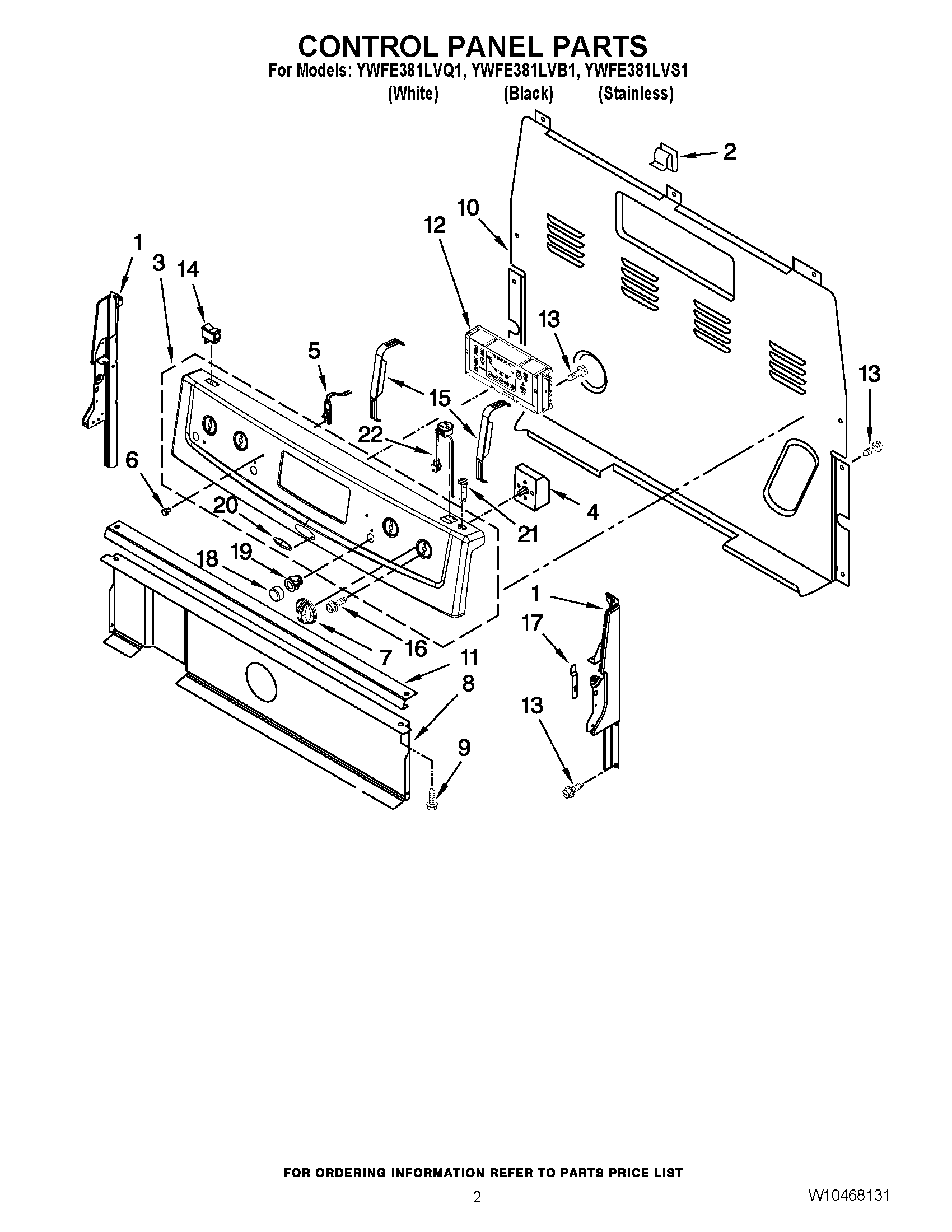

YWFE381LVB1 02 – CONTROL PANEL PARTS

YWFE381LVB1 02 – CONTROL PANEL PARTS

Written by

in

YWFE381LVB1 02 – CONTROL PANEL PARTS

Products

PositionProduct
1W11219370 Whirlpool Endcap Panel
1W11219665 Whirlpool Panel Endcap
1W11219664 Whirlpool Endcap Panel
1W11219365 Whirlpool Panel Endcap
2WP8273564 Whirlpool Clip
3Panel, Control (Black)
3PANEL, CONTROL (STAINLESS)
3Panel, Control (White)
4SWITCH-INF
4WP3149404 Whirlpool Oven Surface Element Switch
4WP8272820 Whirlpool PB Switch
5WP8523265 Whirlpool Indicator Light
6WP3196068 Whirlpool Light Lens
7WP9761962 Whirlpool Range Stove Burner Control Knob
7WP9761964 Whirlpool Knob
8W10134247 Whirlpool Heat Shield
9WP3196175 Whirlpool Screw
10WP8272473 Whirlpool Rear Cover
11W10525121 Whirlpool Control Bracket
12WPW10271740-includeCORE Whirlpool WPW10271740 Refrigerator Electronic Control Board + Core
12WPW10271739 Whirlpool Range Electronic Control Board
13WP3196557 Whirlpool Screw
143149360 Whirlpool Light Switch
14WP4314961 Whirlpool Lite Switch
15BRACKET, MOUNTING EOC
16WP3400882 Whirlpool Screw
173196200 Whirlpool Clip
189758491 Whirlpool Oven Push Button
189757492 Whirlpool Oven Push Button
19W10217760 Whirlpool Switch Bezel
19W10217758 Whirlpool Switch Bezel
20Badge
21WP9757602 Whirlpool Breaker
21WP9757601 Whirlpool Breaker
22W10861164 Whirlpool Electrical Outlet
22W10849725 Whirlpool Electrical Outlet
