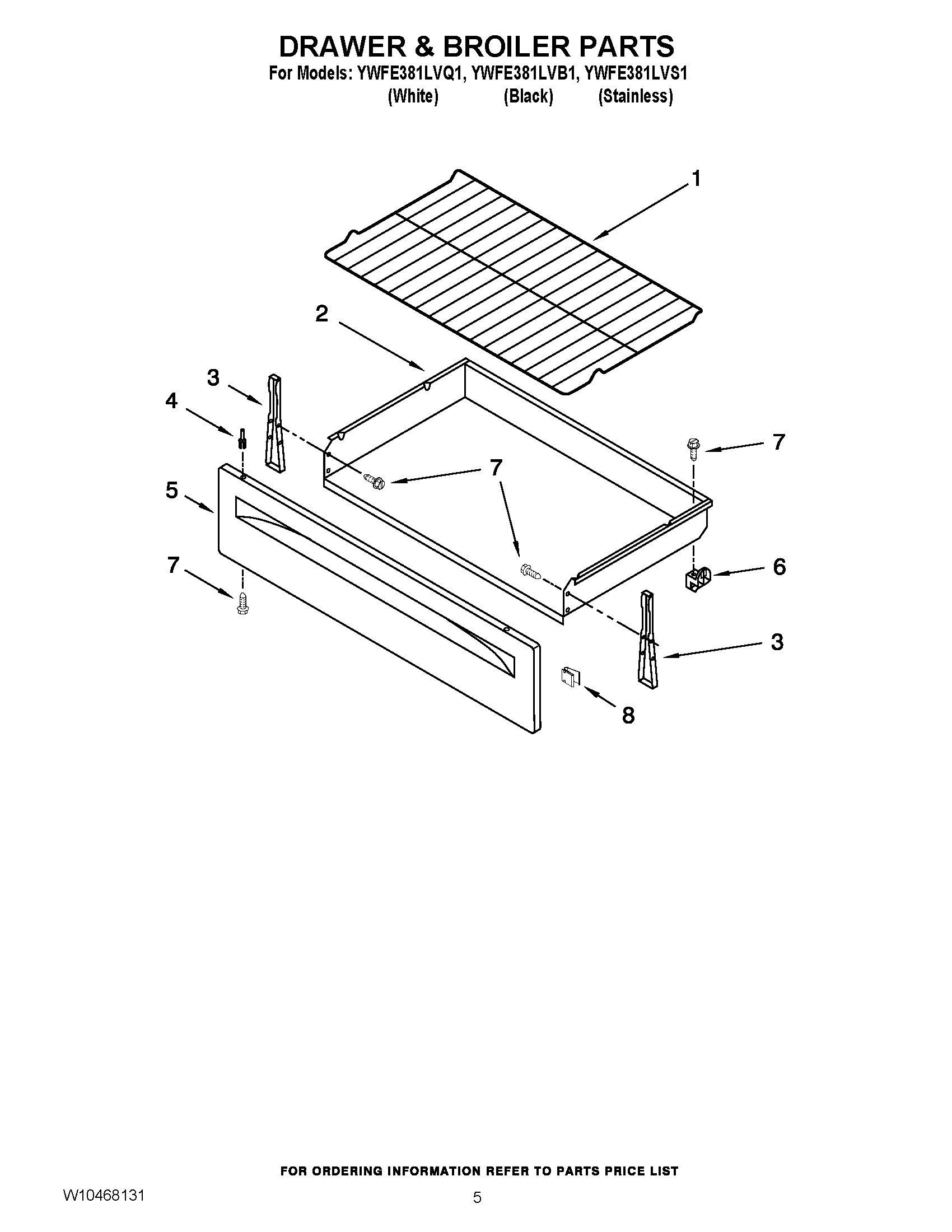

YWFE381LVQ1 04 – DRAWER & BROILER PARTS

YWFE381LVQ1 04 – DRAWER & BROILER PARTS

Written by

in

YWFE381LVQ1 04 – DRAWER & BROILER PARTS

Products

PositionProduct
1RACK-OVEN
2Drawer, Storage
3WPW10462912 Whirlpool Bracket Mounting
3W10838990 Whirlpool Mounting Bracket
4WP3196814 Whirlpool Rivet
4WP3196813 Whirlpool Rivet
5W11219377 Whirlpool Drawer Panel
5W11230488 Whirlpool Drawer Panel
5DRAWER FRONT (STAINLESS)
6WP8053334 Whirlpool Drawer Glide
7WP3196557 Whirlpool Screw
8CLIP, SPRING
