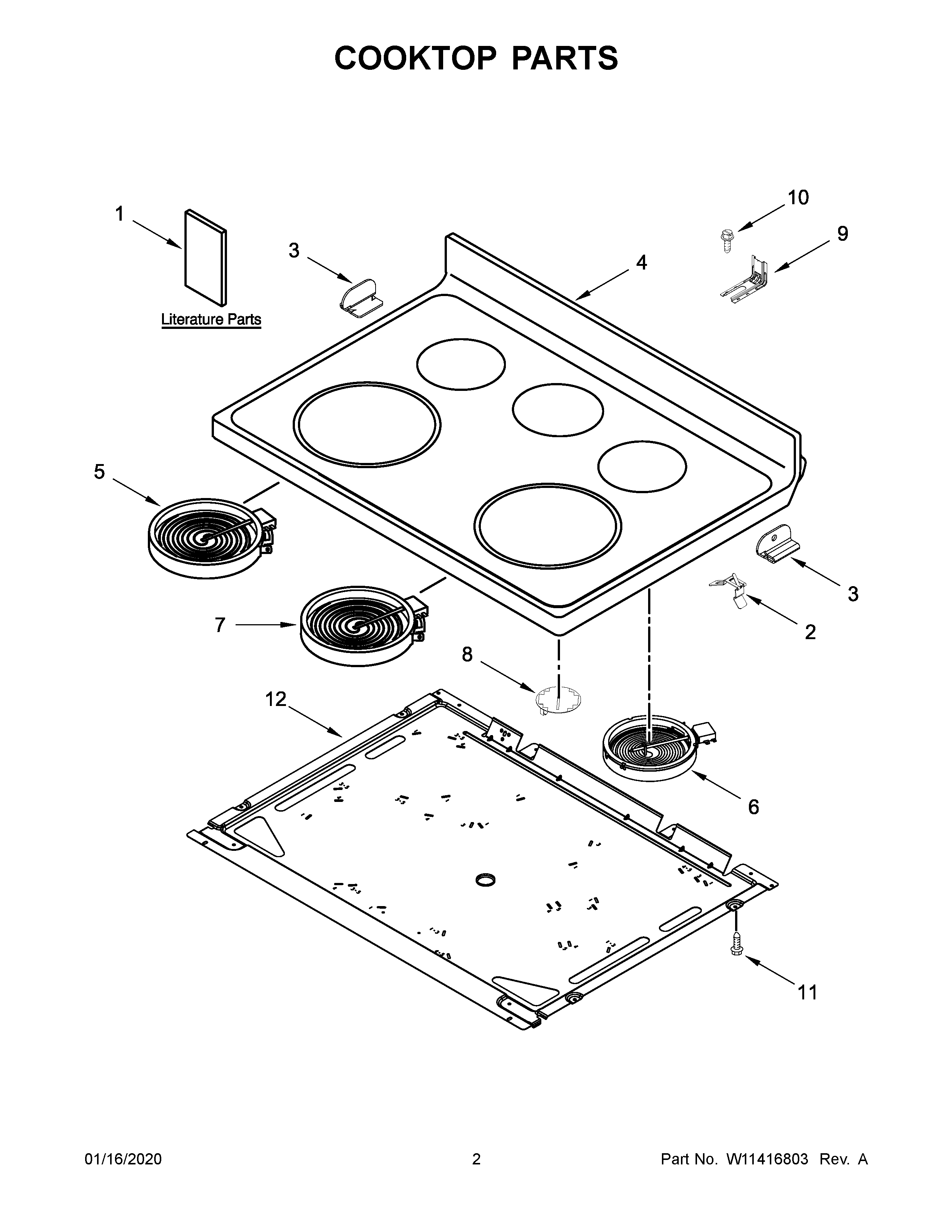

YWFE505W0JW0 02 – COOKTOP PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11134592 Whirlpool Wire Harness
NI	W11344557 Whirlpool Wire Harness
NI	W11675846 Whirlpool Wire Harness
NI	W11596058 Whirlpool Wire Harness
1C	SHEET, TECH
1B	DIAGRAM, WIRING
1A	INSTRUCTIONS, INSTALLATION
1	GUIDE, USE AND CARE
2	WPW10225448 Whirlpool Spring Assembly
3	W10607641 Whirlpool Clip
3A	W10607642 Whirlpool Clip
4	W11381329 Whirlpool Cooktop
5	W11517959 Whirlpool Electric Range Radiant Surface Element
6	ELMNT-SURF
7	W11047722 Whirlpool Radiant Surface Element
8	W11041453 Whirlpool Surface Element
9	W11447673 Whirlpool Range Tip Anchor
10	SCREW, ANTI-TIP KIT
11	WP3196557 Whirlpool Screw
12	PAN
