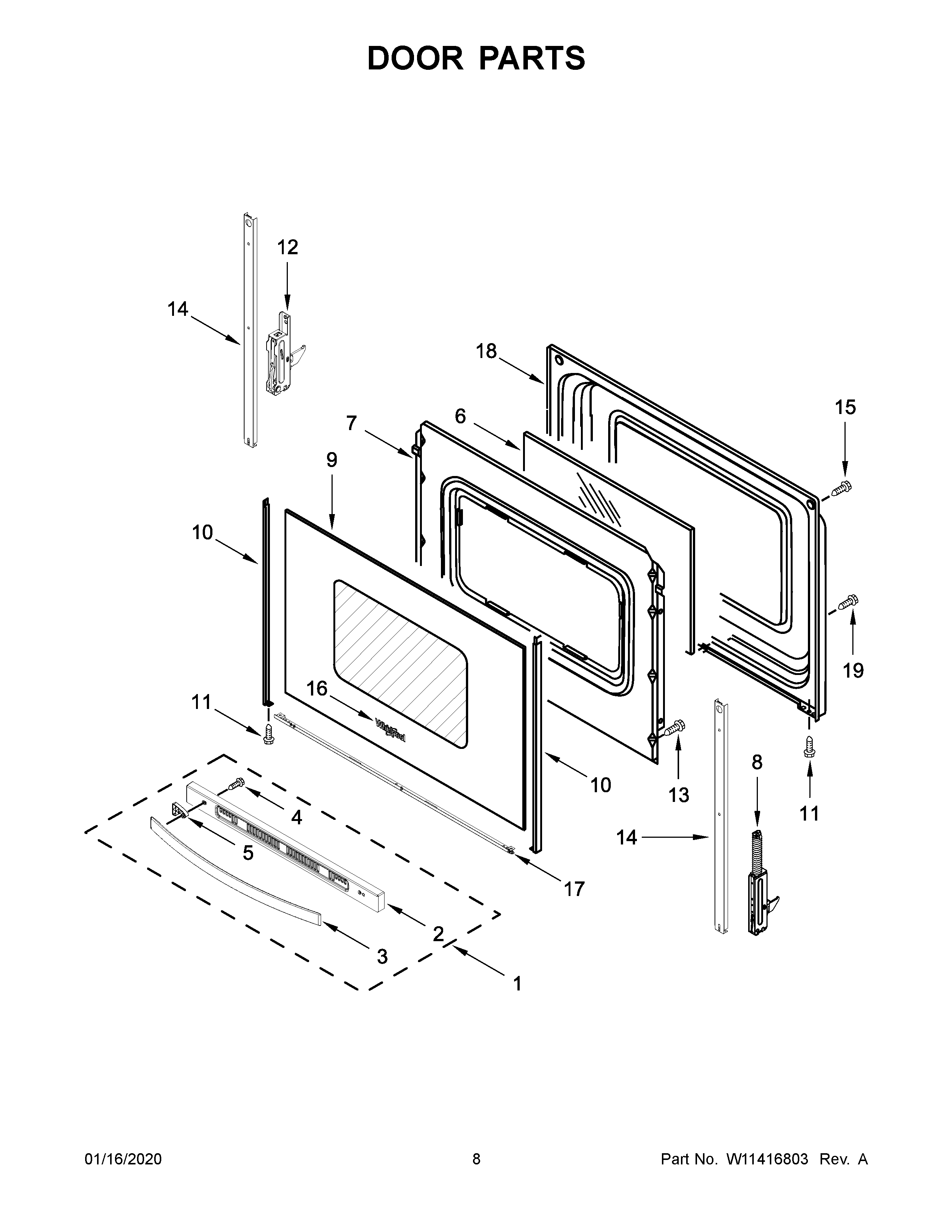

YWFE505W0JW0 05 – DOOR PARTS

Products

Position	Product
1	W11590861 Whirlpool Door Handle
2	W10817433 Whirlpool Vent Trim
3	W11107407 Whirlpool Door Handle
4	W10831019 Whirlpool Stove Door Screw
5	CABINET (NOT A SERVICEABLE PART)
6	W11399628 Whirlpool Door Glass
7	W11685635 Whirlpool Retainer
8	WPW10299225 Whirlpool Door Hinge
9	WPW10409945 Whirlpool Glass Door
10A	WP8523166 Whirlpool Door Trim
10	WP8523172 Whirlpool Left Door Trim
11	WP355214 Whirlpool Screw
12	WPW10299227 Whirlpool Range Door Hinge
13	W10777162 Whirlpool Screw
14	W11502236 Whirlpool Door Trim
15	WPW10200660 Whirlpool Range Oven Door Handle Screw
16	W11178521 Whirlpool Dishwasher Nameplate
17	WP8523175 Whirlpool Door Trim Assembly
18	WP9761344 Whirlpool Door Liner
19	WPW10031790 Whirlpool Screw
