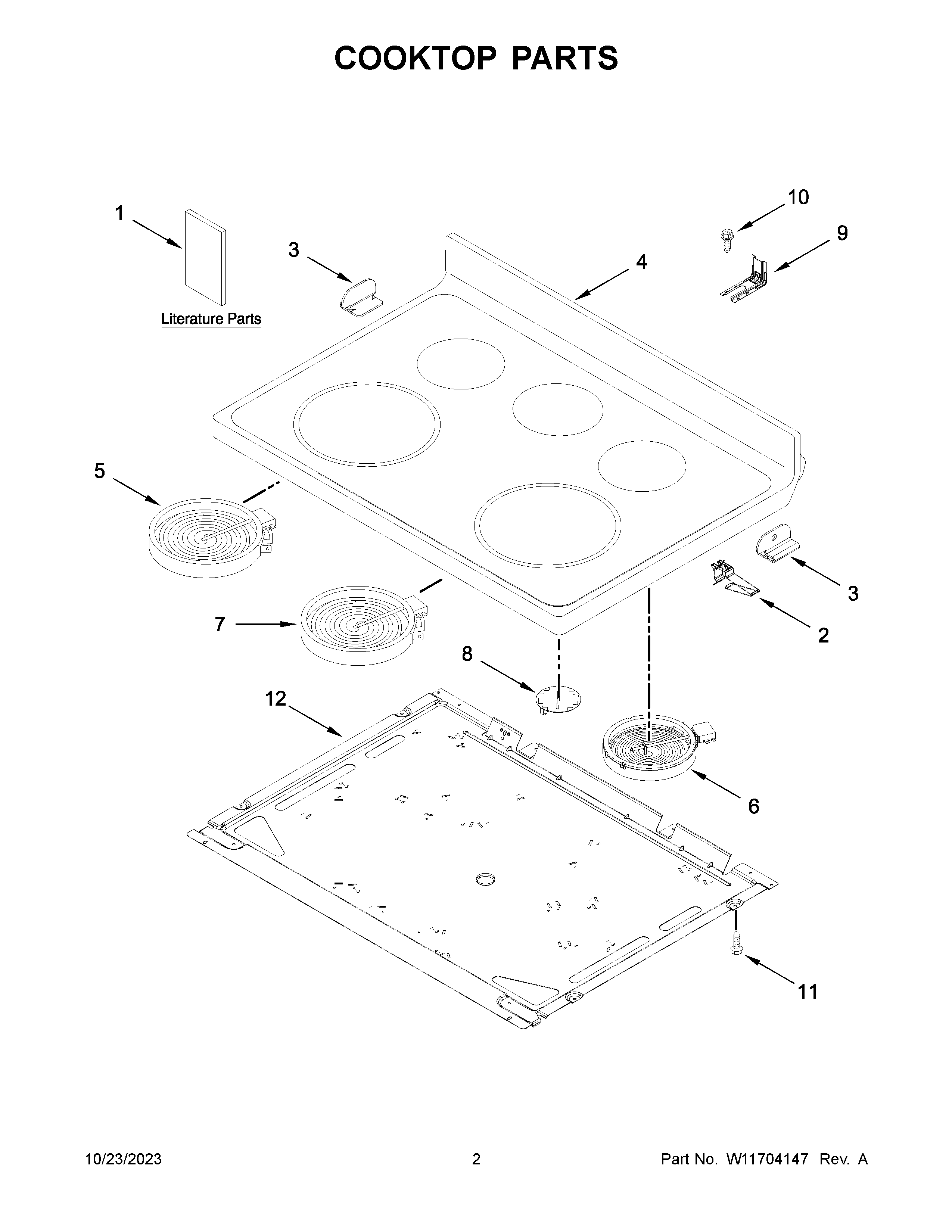

YWFE505W0JW4 02 – COOKTOP PARTS

Products

Position	Product
NI	HARNESS, MAIN
NI	HARNESS, WARM ZONE
NI	W11675846 Whirlpool Wire Harness
NI	W11596058 Whirlpool Wire Harness
NI	FOLLOWING PARTS NOT ILLUSTRATED
1A	QUICK START GUIDE
1	OWNERS MANUAL
1B	TECH SHEET
2	W11663556 Whirlpool Spring Assembly
3A	W10607642 Whirlpool Clip
3	W10607641 Whirlpool Clip
4	W11381329 Whirlpool Cooktop
5	W11517959 Whirlpool Electric Range Radiant Surface Element
6	ELMNT-SURF
7	W11047722 Whirlpool Radiant Surface Element
8	ELEMENT, WARM ZONE (CENTER)
9	W11447673 Whirlpool Range Tip Anchor
10	SCREW, ANTI-TIP KIT
11	WP3196557 Whirlpool Screw
12	PAN
