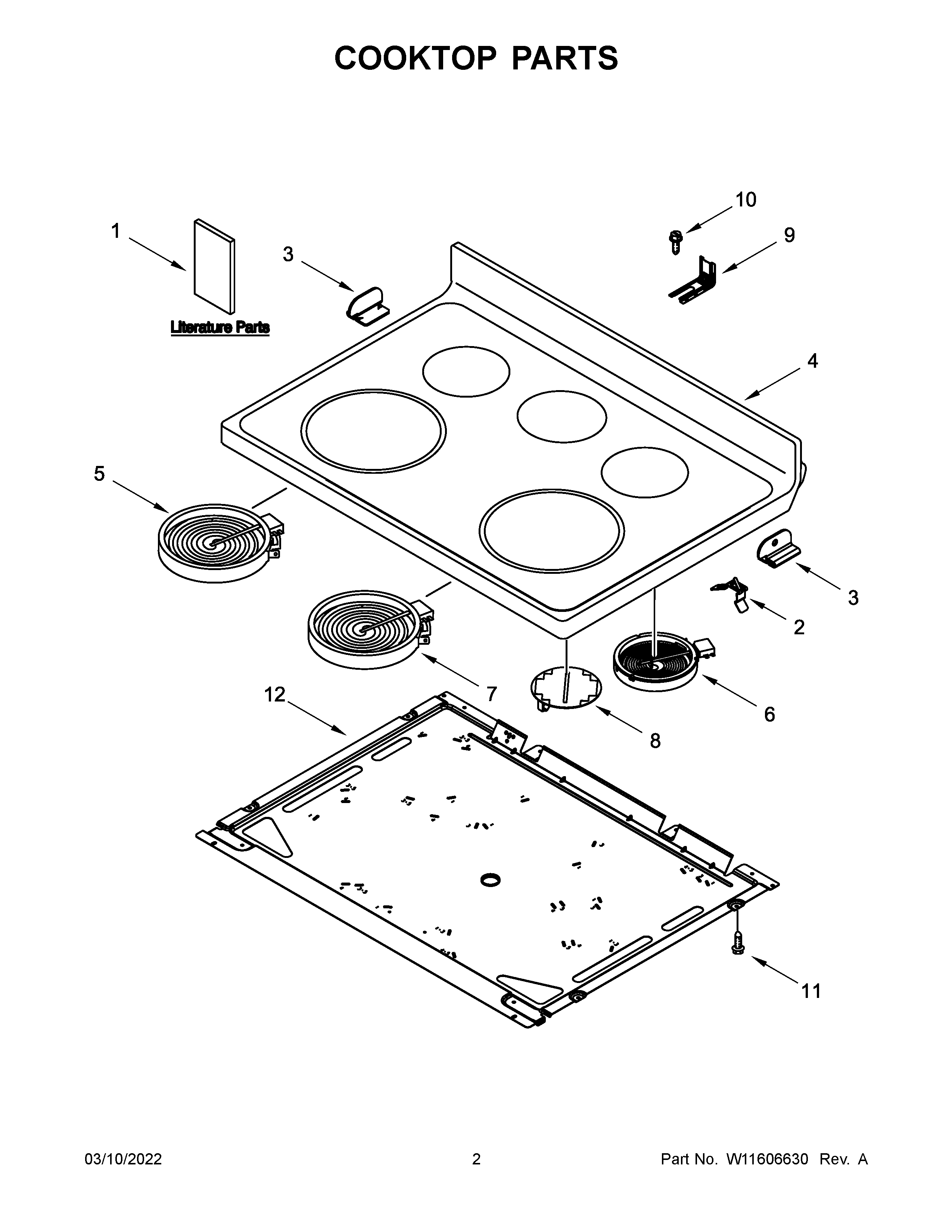

YWFE505W0JZ3 02 – COOKTOP PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11134592 Whirlpool Wire Harness
NI	HARNESS, MAIN
NI	W11675846 Whirlpool Wire Harness
NI	W11596058 Whirlpool Wire Harness
1B	TECH SHEET
1A	QUICK START GUIDE
1	OWNERS MANUAL
2	WPW10225448 Whirlpool Spring Assembly
3A	W10607642 Whirlpool Clip
3	W10607641 Whirlpool Clip
4	W11175876 Whirlpool Glass Maintop Assembly
5	W11517959 Whirlpool Electric Range Radiant Surface Element
6	ELMNT-SURF
7	W11047722 Whirlpool Radiant Surface Element
8	W11041453 Whirlpool Surface Element
9	W11447673 Whirlpool Range Tip Anchor
10	SCREW, ANTI-TIP KIT
11	WP3196557 Whirlpool Screw
12	PAN
