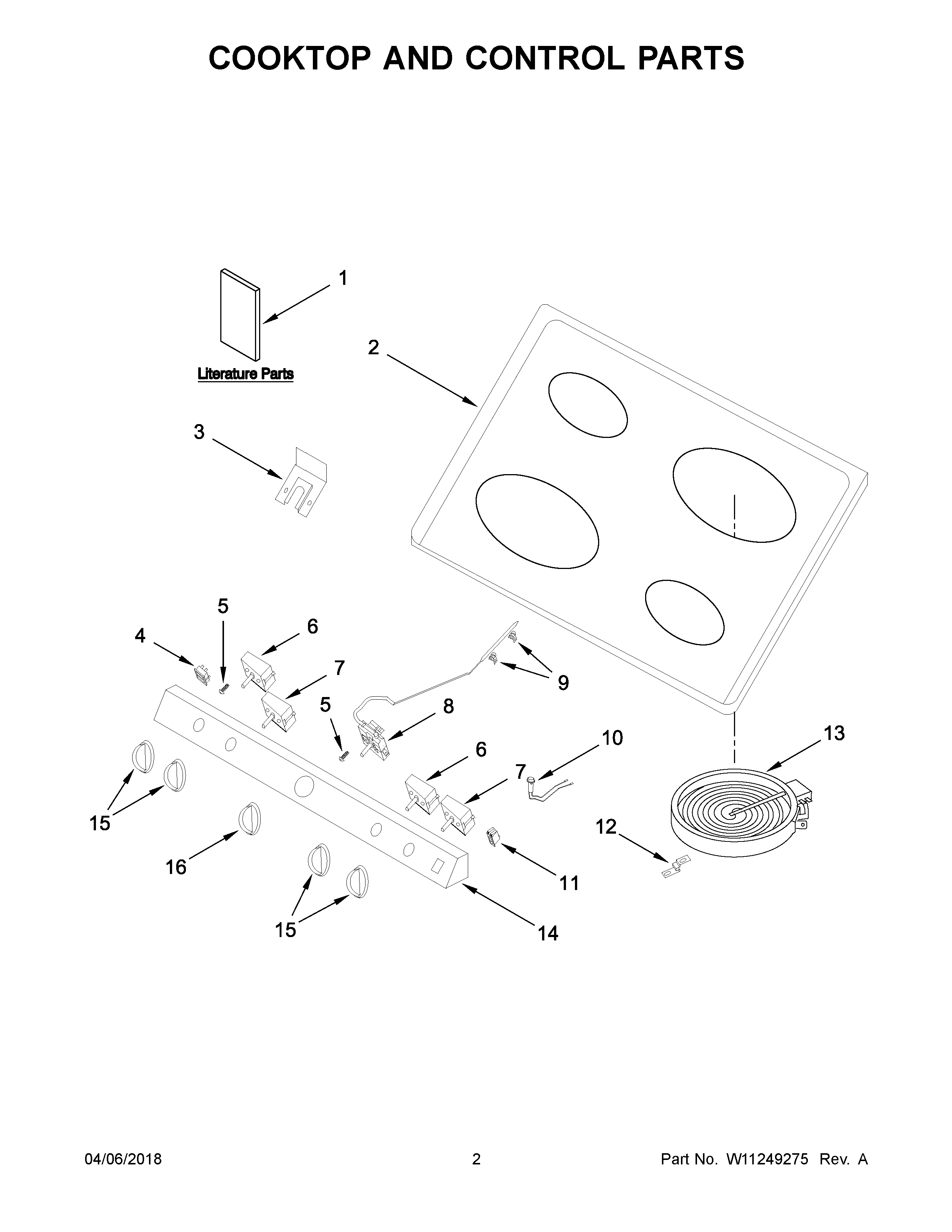

YWFE50M4HS0 02 – COOKTOP AND CONTROL PARTS

YWFE50M4HS0 02 – COOKTOP AND CONTROL PARTS

Written by

in

YWFE50M4HS0 02 – COOKTOP AND CONTROL PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIHARNESS, WIRE
NIWIRE, JUMPER
1ATECH SHEET
1USE AND CARE GUIDE
2W11223955 Whirlpool Cooktop Assembly
3BRACKET, ANTI-TIP
4INDICATOR, SURFACE AND OVEN
5SCREW
6W10197679 Whirlpool Infinite Switch
7WPW10197681 Whirlpool Oven Infinite Switch
8W11224303 Whirlpool Thermostat
9CLIP, THERMOSTAT BULB
10W11223435 Whirlpool Indicator Light
11SWITCH, OVEN LIGHT
12SPRING, ELEMENT
13W11223964 Whirlpool Surface Element
13AW11223965 Whirlpool Surface Element
14W11223956 Whirlpool Control Panel
15W11223402 Whirlpool Knob
16KNOB, OVEN THERMOSTAT
