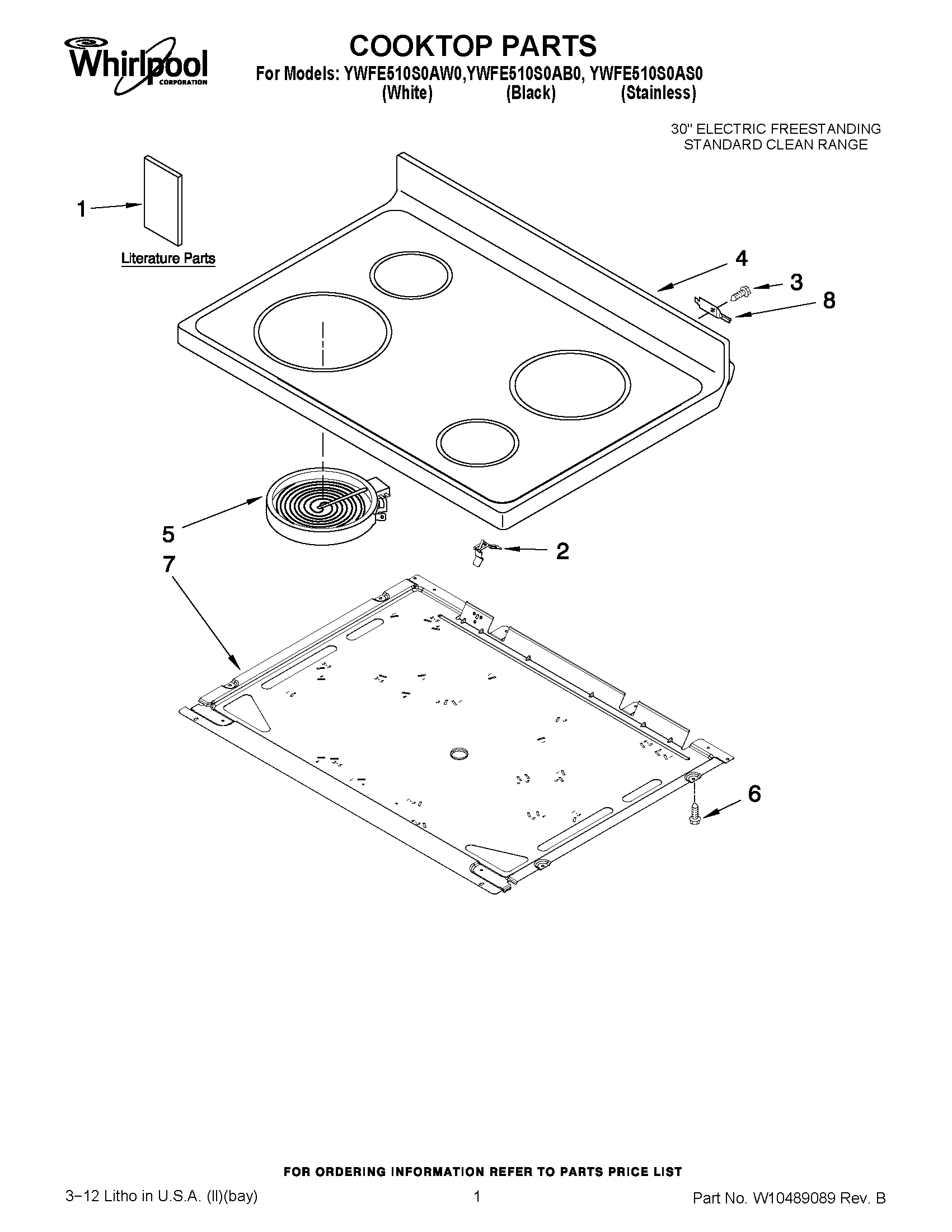

YWFE510S0AB0 01 – COOKTOP PARTS

Products

PositionProduct
1SAFER COOKING TIPS (ENGLISH
1OWNERS MANUAL
1TECH SHEET (FRENCH)
1TECH SHEET (ENGLISH)
1INSTRUCTIONS, INSTALLATION
2WPW10225448 Whirlpool Spring Assembly
3SCREW
4W10245805 Whirlpool Range Black Glass Cooktop
4W10472020 Whirlpool Cooktop
5W11517959 Whirlpool Electric Range Radiant Surface Element
5W11047722 Whirlpool Radiant Surface Element
5ELMNT-SURF
6WP3196557 Whirlpool Screw
7PAN
8WP3195060 Whirlpool Cooktop Pin
