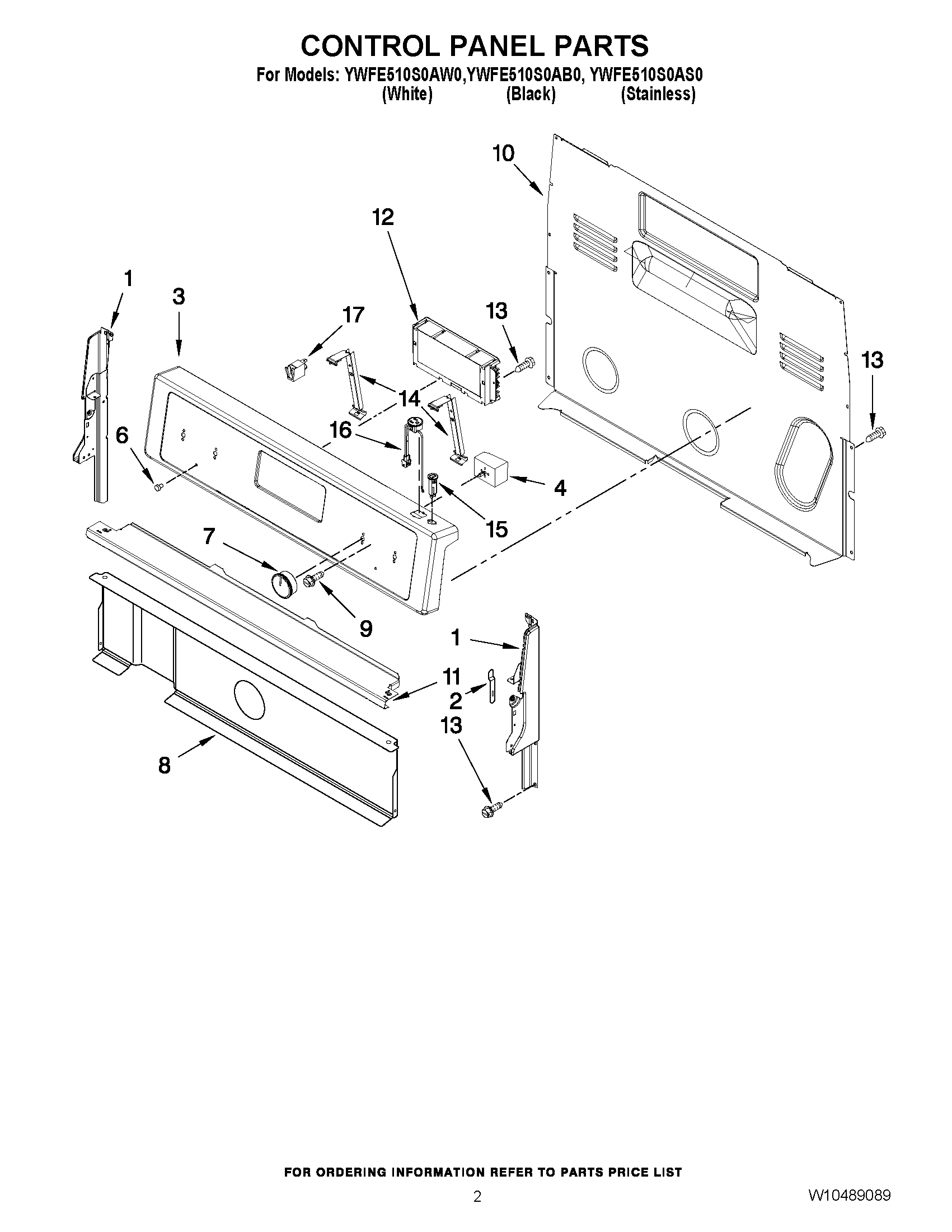

YWFE510S0AB0 02 – CONTROL PANEL PARTS

Products

Position	Product
1	W11219664 Whirlpool Endcap Panel
1	W11219665 Whirlpool Panel Endcap
1	W11219370 Whirlpool Endcap Panel
1	W11219365 Whirlpool Panel Endcap
2	3196200 Whirlpool Clip
3	PANEL, BACKGUARD (BLACK)
3	PANEL, BACKGUARD (WHITE)
3	PANEL, BACKGUARD (STAINLESS)
4	WP3149404 Whirlpool Oven Surface Element Switch
4	WP3149400 Whirlpool Oven Infinite Switch
4	SWITCH-INF
6	WP3196068 Whirlpool Light Lens
7	WPW10490038 Whirlpool Knob
7	WPW10490037 Whirlpool Knob
8	W10134247 Whirlpool Heat Shield
9	WP3400882 Whirlpool Screw
10	WP8272473 Whirlpool Rear Cover
11	W10525121 Whirlpool Control Bracket
12	WPW10734609-includeCORE Whirlpool WPW10734609 Washer Electronic Control Board + Core
12	WPW10734611 Whirlpool Electronic Control Board + Core
12	WPW10734612-includeCORE Whirlpool WPW10734612 Refrigerator Electronic Control Board + Core
13	SCREW
14	W11230932 Whirlpool Bracket Mounting
15	WP9757602 Whirlpool Breaker
15	WP9757601 Whirlpool Breaker
16	W10861164 Whirlpool Electrical Outlet
16	W10849725 Whirlpool Electrical Outlet
17	WP8523265 Whirlpool Indicator Light
