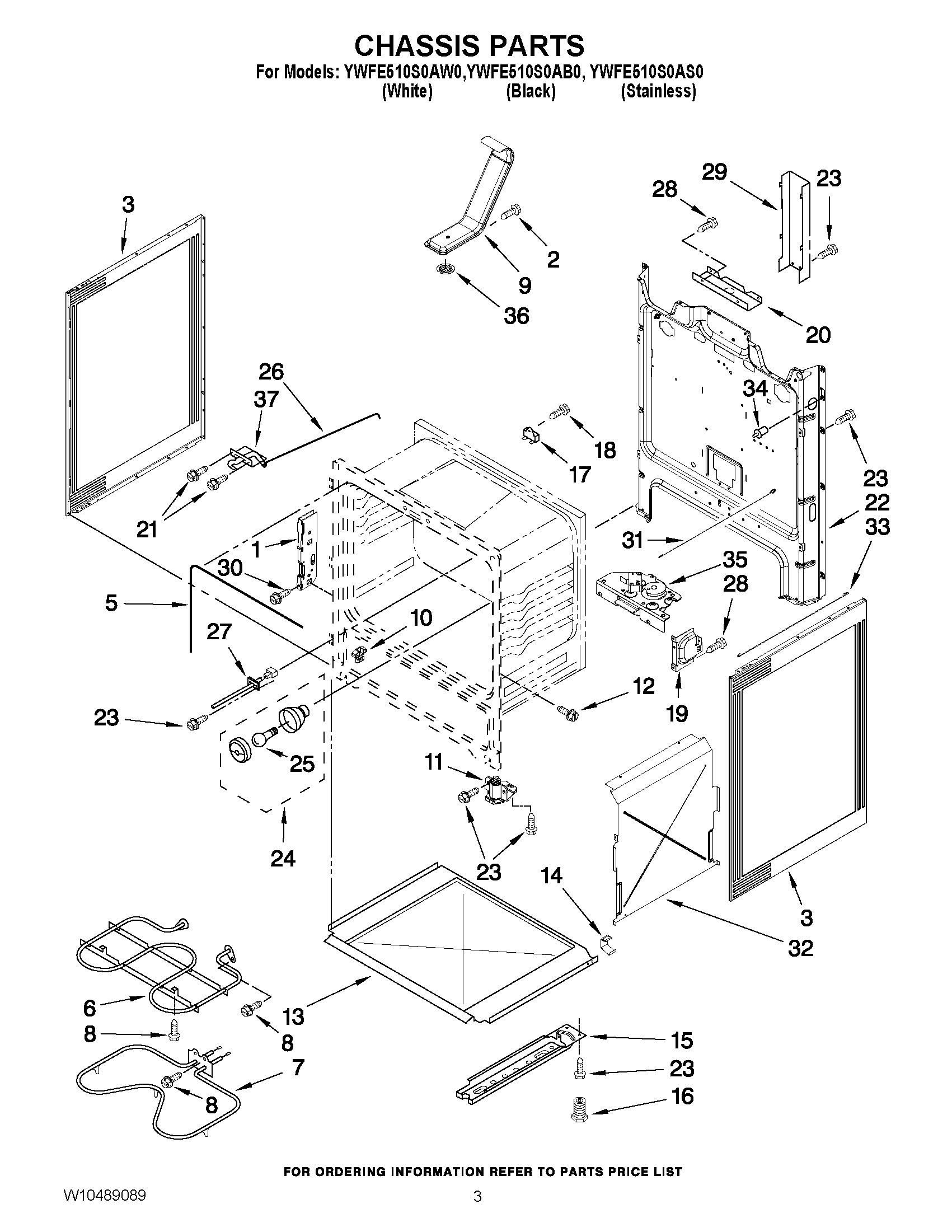

YWFE510S0AW0 03 – CHASSIS PARTS

Products

Position	Product
NI	W11684918 Whirlpool Insulation
NI	WPW10208653 Whirlpool Insulation
NI	WP8272612 Whirlpool Insulation
NI	W11226497 Whirlpool Power Cord
1	W10647259 Whirlpool Hinge Receiver
2	WP3196154 Whirlpool Screw Assembly
3	WPW10575396 Whirlpool Side Panel
3	W11730303 Whirlpool Side Panel
5	W11542153 Whirlpool Door Gasket
6	W10856603 Whirlpool Broil Element
7	WPW10308477 Whirlpool Bake Element
8	WP3196174 Whirlpool Screw
9	WPW10134285 Whirlpool Vent Tube
10	GLIDE-RANGE DRAWER KIT
11	WPW10341186 Whirlpool Refrigerator Front Levelling Leg
12	WPW10067840 Whirlpool Screw
13	WP8054068 Whirlpool Retainer
14	W10137382 Whirlpool Clip
15	WPW10306546 Whirlpool Base Rail
16	WPW10058460 Whirlpool Appliance Levelling Leg
17	WP3196548 Whirlpool Thermal Fuse
18	3196172 Whirlpool Oven Screw
19	W10404688 Whirlpool Bracket Support
20	W11728255 Whirlpool Service Bracket
21	W11169708 Whirlpool Screw
22	BACK, MAIN
23	SCREW
24	W11594027 Whirlpool Range Oven Light Socket
25	RANGE ONLY 40W 120V APPL BULB
26	Rod, Latch
27	WPW10181986 Whirlpool Oven Sensor
28	WP3196557 Whirlpool Screw
29	WPW10326122 Whirlpool Black Cover
30	W10777162 Whirlpool Screw
31	9757239 Whirlpool Oven Door Rod
32	W10450380 Whirlpool Retainer
33	W10465685 Whirlpool Retainer Assembly
34	WP9757262 Whirlpool Light Switch
35	WPW10107840 Whirlpool Door Latch
36	9761301 Whirlpool Oven Screen
37	WP9761013 Whirlpool Door Latch
