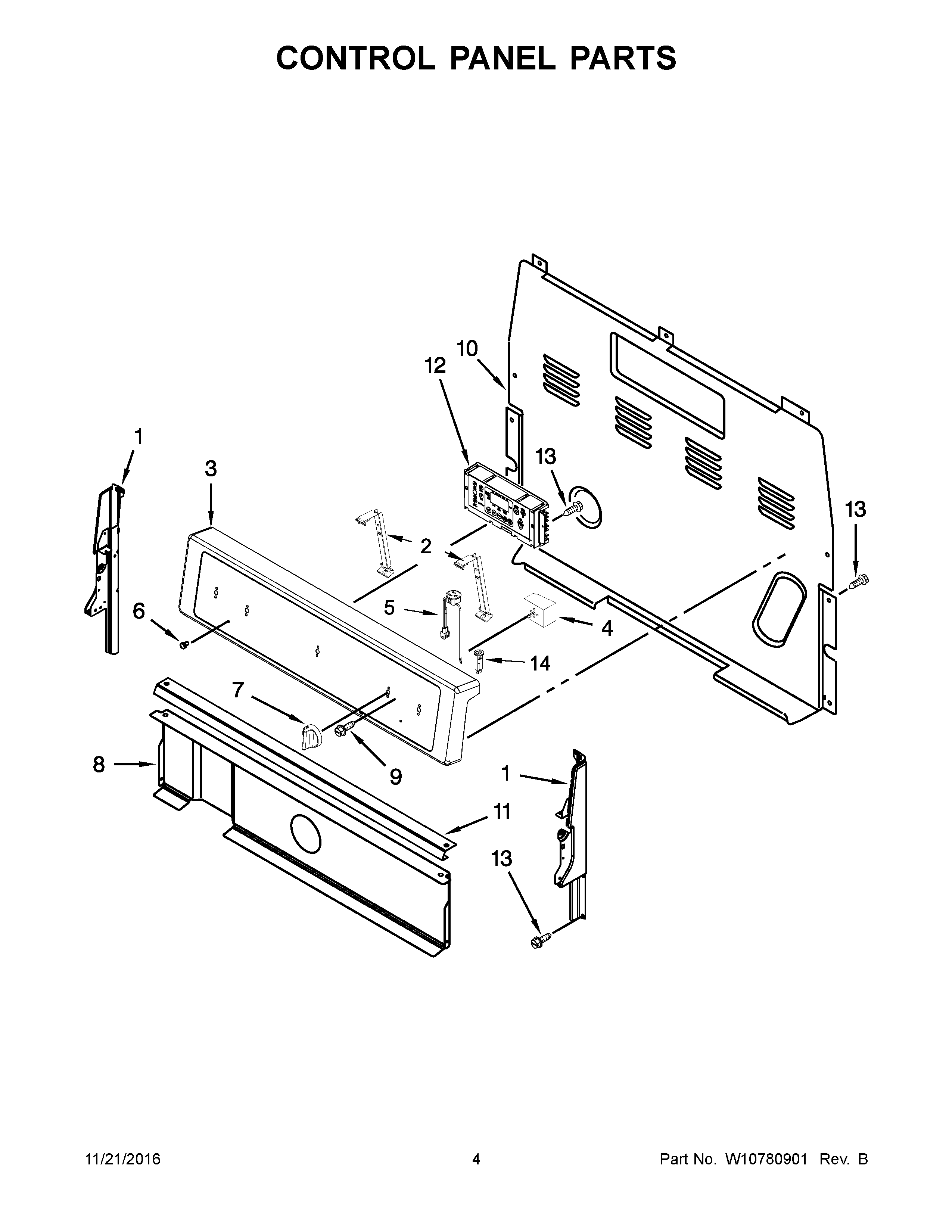

YWFE510S0EB0 03 – CONTROL PANEL PARTS

YWFE510S0EB0 03 – CONTROL PANEL PARTS

Written by

in

YWFE510S0EB0 03 – CONTROL PANEL PARTS

Products

PositionProduct
1AW11219370 Whirlpool Endcap Panel
1W11219365 Whirlpool Panel Endcap
1BW11219664 Whirlpool Endcap Panel
1CW11219665 Whirlpool Panel Endcap
2W11230932 Whirlpool Bracket Mounting
3BCONSOLE (STAINLESS)
3CONSOLE (WHITE)
3ACONSOLE (BLACK)
4AWP3149404 Whirlpool Oven Surface Element Switch
4SWITCH-INF
4BWP3149400 Whirlpool Oven Infinite Switch
5ARECEPTACLE (BLACK)
5W10849725 Whirlpool Electrical Outlet
6WP3196068 Whirlpool Light Lens
7W10853029 Whirlpool Knob
7AW10836470 Whirlpool Knob Assembly
8W10134247 Whirlpool Heat Shield
9WP3400882 Whirlpool Screw
10WP8272473 Whirlpool Rear Cover
11W10525121 Whirlpool Control Bracket
12WPW10734611 Whirlpool Electronic Control Board + Core
12BCONTROL, RANGE (STAINLESS)
12AWPW10734612-includeCORE Whirlpool WPW10734612 Refrigerator Electronic Control Board + Core
13SCREW
14WP9757601 Whirlpool Breaker
14AWP9757602 Whirlpool Breaker
