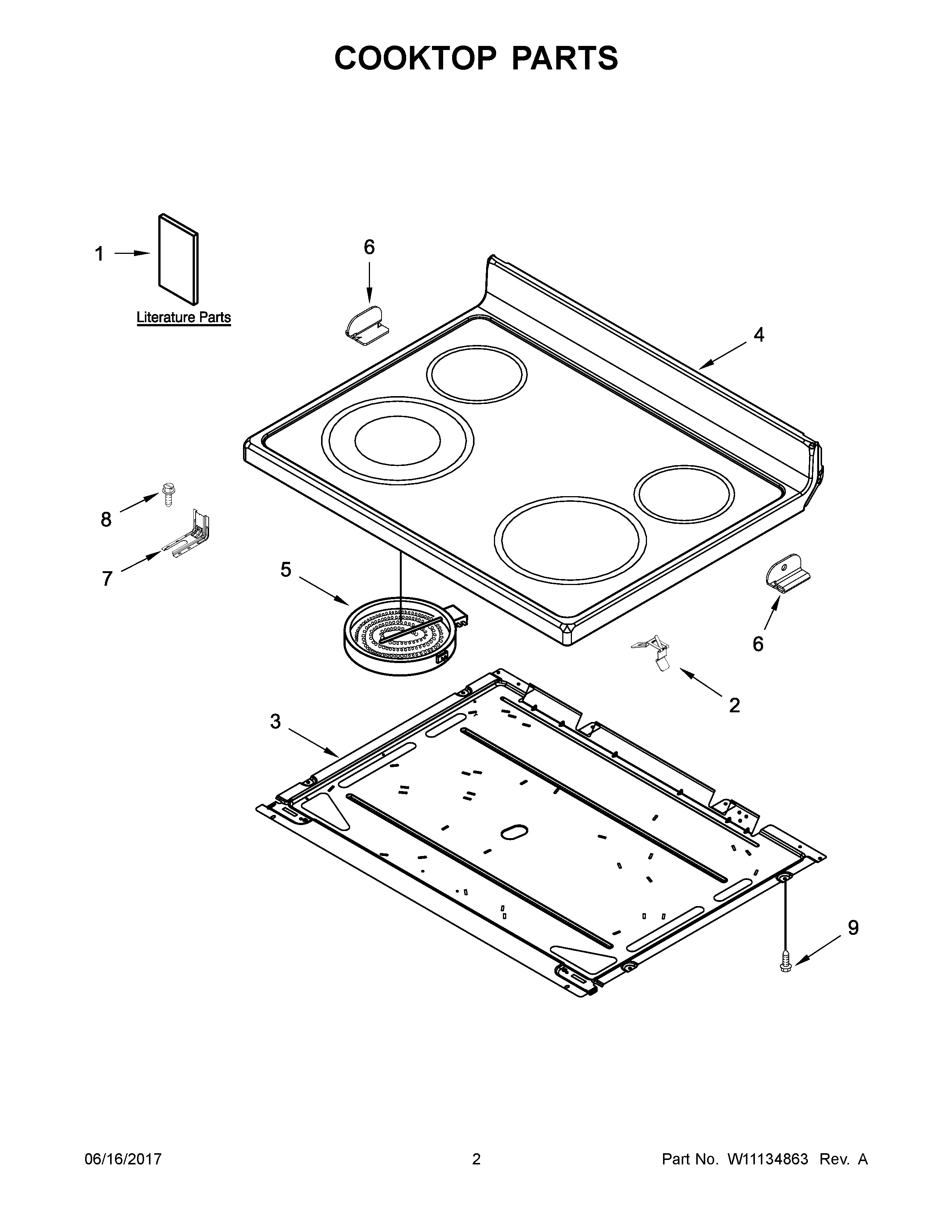

YWFE510S0ES1 02 – COOKTOP PARTS

YWFE510S0ES1 02 – COOKTOP PARTS

Written by

in

YWFE510S0ES1 02 – COOKTOP PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIW11134602 Whirlpool Wire Harness
NIW11134601 Whirlpool Wire Harness
NIW11172524 Whirlpool Wire Harness
NIW10349712 Whirlpool Wire Harness
1CTECH SHEET (FRENCH)
1BTECH SHEET (ENGLISH)
1AINSTRUCTIONS, INSTALLATION
1USE AND CARE GUIDE
1DSAFER COOKING TIPS (ENGLISH
1ESafer Cooking Tips (French)
2WPW10225448 Whirlpool Spring Assembly
3PAN
4W10245805 Whirlpool Range Black Glass Cooktop
5AELMNT-SURF
5BW11047722 Whirlpool Radiant Surface Element
5W11517959 Whirlpool Electric Range Radiant Surface Element
6AW10607642 Whirlpool Clip
6W10607641 Whirlpool Clip
7W11447673 Whirlpool Range Tip Anchor
8SCREW, ANTI-TIP KIT
9WP3196557 Whirlpool Screw
