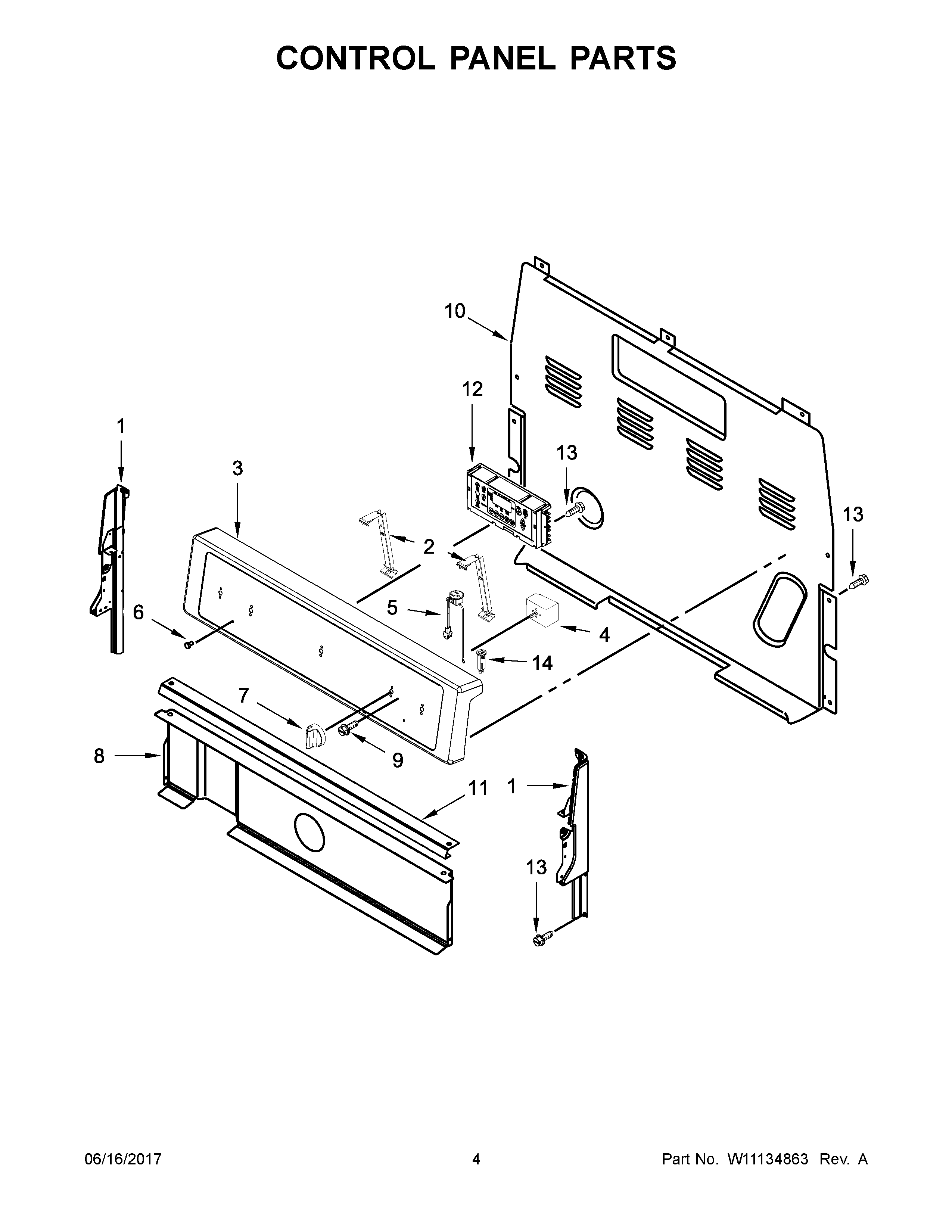

YWFE510S0ES1 03 – CONTROL PANEL PARTS

Products

Position	Product
1	W11219664 Whirlpool Endcap Panel
1A	W11219665 Whirlpool Panel Endcap
2	W11230932 Whirlpool Bracket Mounting
3	CONSOLE (STAINLESS)
4B	WP3149400 Whirlpool Oven Infinite Switch
4A	WP3149404 Whirlpool Oven Surface Element Switch
4	SWITCH-INF
5	RECEPTACLE (BLACK)
6	WP3196068 Whirlpool Light Lens
7	W10836470 Whirlpool Knob Assembly
8	W10134247 Whirlpool Heat Shield
9	WP3400882 Whirlpool Screw
10	WP8272473 Whirlpool Rear Cover
11	W10525121 Whirlpool Control Bracket
12	W11122537 Whirlpool Electronic Control Board + Core
13	SCREW
14	WP9757602 Whirlpool Breaker
