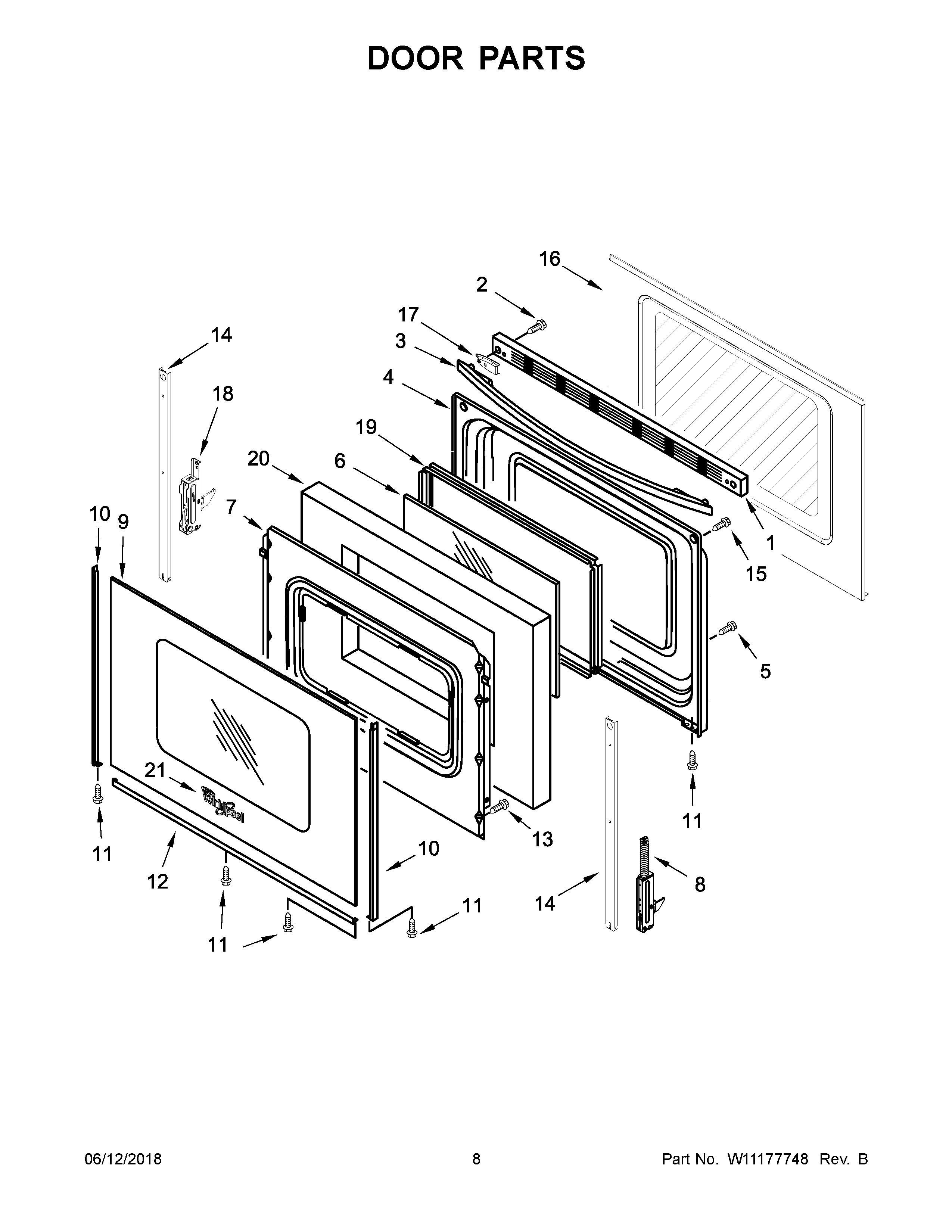

YWFE510S0HS0 05 – DOOR PARTS

Products

Position	Product
1	W10817433 Whirlpool Vent Trim
1A	TRIM-VENT
2	W10831019 Whirlpool Stove Door Screw
3	W11107407 Whirlpool Door Handle
3A	W11110499 Whirlpool Stove Door Handle
4	WP9761344 Whirlpool Door Liner
5	WPW10031790 Whirlpool Screw
6	WP8053948 Whirlpool Door Glass
7	W11539580 Whirlpool Retainer
8	WPW10299224 Whirlpool Range Door Hinge Assembly with Spring
8A	WPW10299226 Whirlpool Door Hinge
9	WPW10409945 Whirlpool Glass Door
10A	WP8523166 Whirlpool Door Trim
10	WP8523172 Whirlpool Left Door Trim
10C	W10761014 Whirlpool Right Door Trim
10B	W10761018 Whirlpool Dishwasher Left Door Trim
11	WP355214 Whirlpool Screw
12	WP8523175 Whirlpool Door Trim Assembly
12A	WP8523177 Whirlpool Door Trim Assembly
13	W10777162 Whirlpool Screw
14	W11502236 Whirlpool Door Trim
15	WPW10200660 Whirlpool Range Oven Door Handle Screw
16	W11219379 Whirlpool Door Glass Assembly
17	W11590861 Whirlpool Door Handle
17A	STANDOFF, HANDLE (BLACK)
18	WPW10299227 Whirlpool Range Door Hinge
19	WPW10316950 Whirlpool Window Frame
20	WPW10278991 Whirlpool Insulation
21	W11178521 Whirlpool Dishwasher Nameplate
