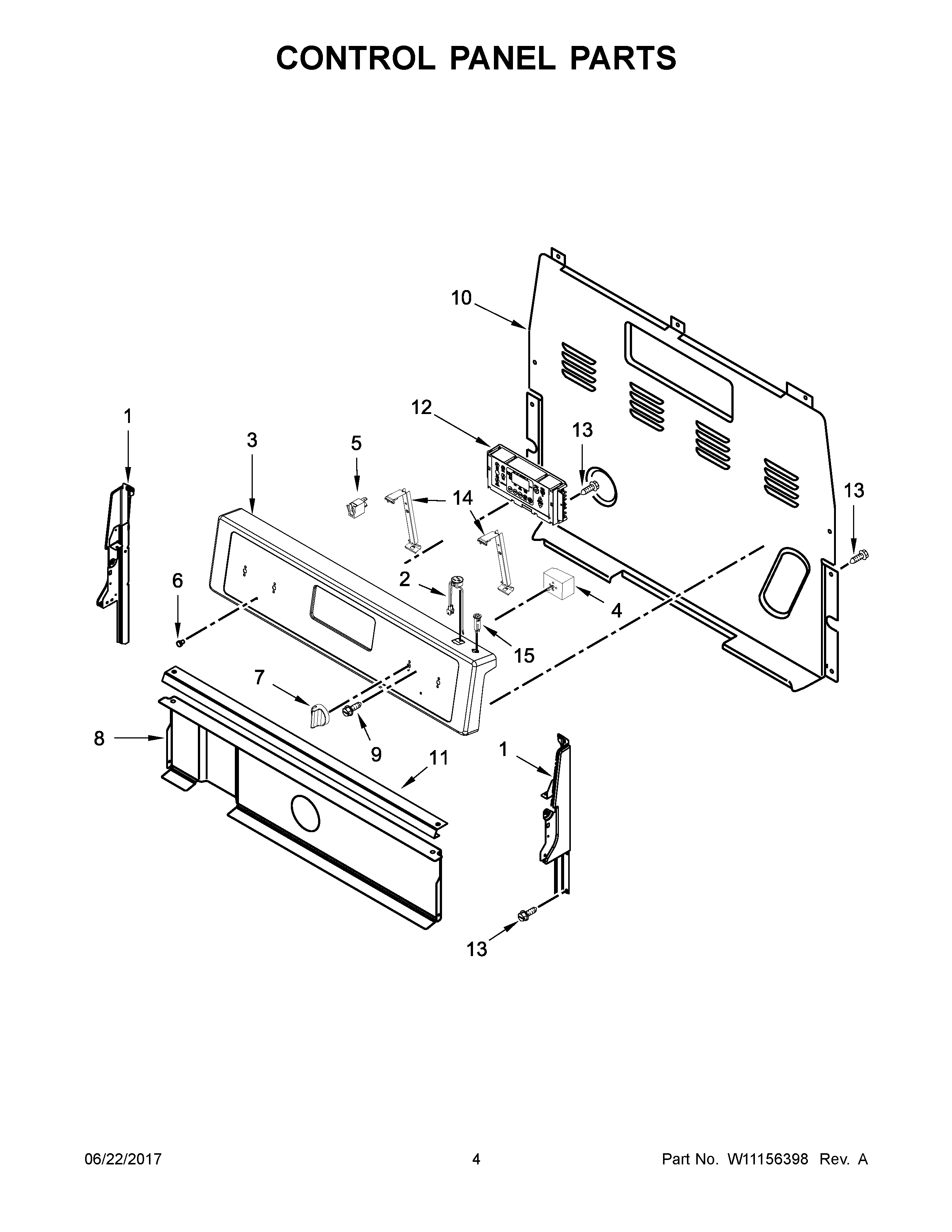

YWFE515S0ES1 03 – CONTROL PANEL PARTS

Products

Position	Product
1C	W11219665 Whirlpool Panel Endcap
1A	W11219370 Whirlpool Endcap Panel
1B	W11219664 Whirlpool Endcap Panel
1	W11219365 Whirlpool Panel Endcap
2A	RECEPTACLE (BLACK)
2	W10849725 Whirlpool Electrical Outlet
3B	CONSOLE (STAINLESS)
3	CONSOLE (WHITE)
3A	CONSOLE (BLACK)
4A	WP3149404 Whirlpool Oven Surface Element Switch
4	SWITCH-INF
4B	WP3149400 Whirlpool Oven Infinite Switch
5	WP8523265 Whirlpool Indicator Light
6	WP3196068 Whirlpool Light Lens
7	W10853029 Whirlpool Knob
7A	W10836470 Whirlpool Knob Assembly
8	W10134247 Whirlpool Heat Shield
9	WP3400882 Whirlpool Screw
10	WP8272473 Whirlpool Rear Cover
11	W10525121 Whirlpool Control Bracket
12A	W11122551-includeCORE Whirlpool W11122551 Refrigerator Electronic Control Board
12	W11122546-includeCORE Whirlpool W11122546 Range Electronic Control Board + Core
12B	W11122543-includeCORE Whirlpool W11122543 Electronic Control Board + Core
13	SCREW
14	W11230932 Whirlpool Bracket Mounting
15A	WP9757602 Whirlpool Breaker
15	WP9757601 Whirlpool Breaker
