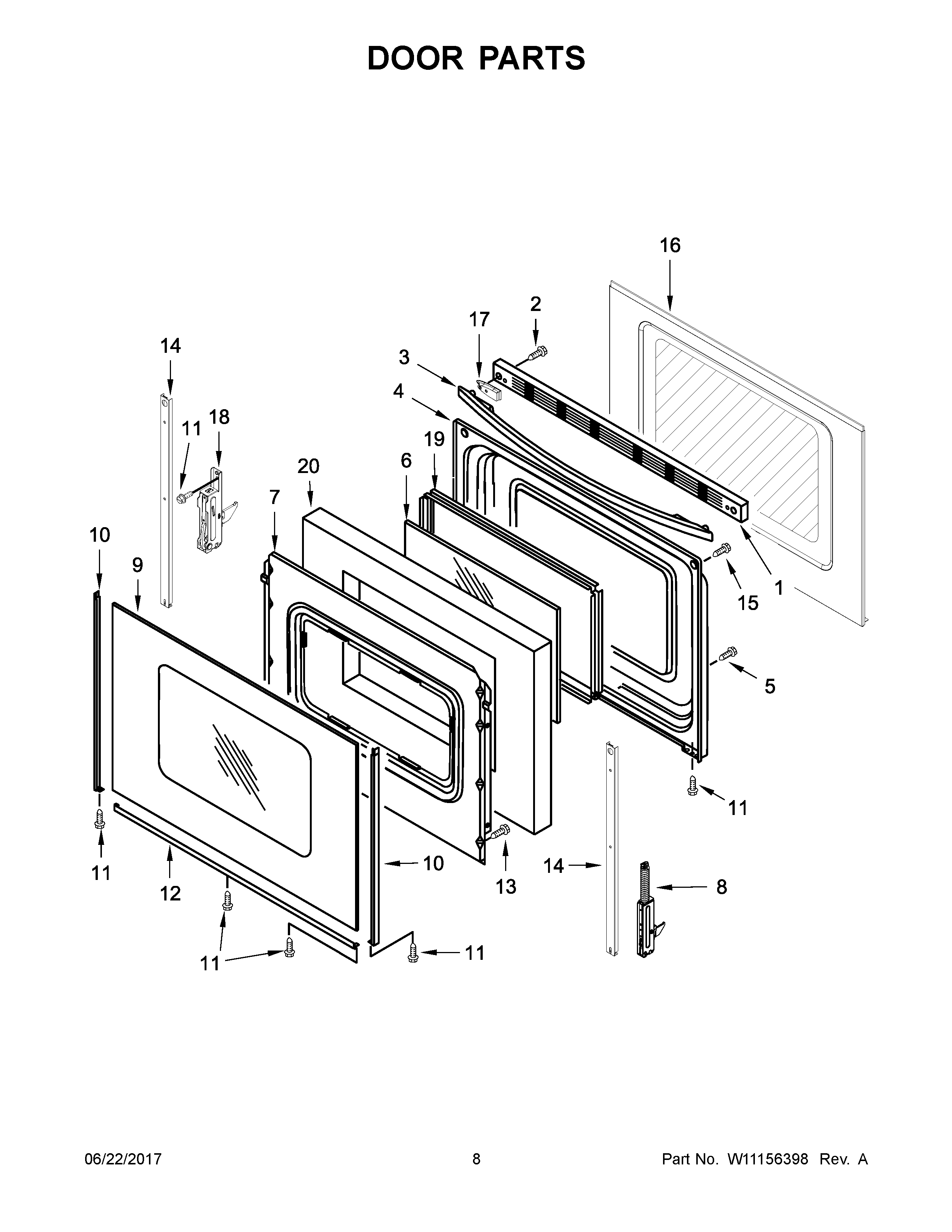

YWFE515S0EW1 05 – DOOR PARTS

Products

Position	Product
1A	TRIM-VENT
1	W10817433 Whirlpool Vent Trim
2	WPW10465148 Whirlpool Screw
2A	W10896982 Whirlpool Compactor Screw
3	W10300489 Whirlpool Door Handle
3A	W10300490 Whirlpool Door Handle
3B	WPW10618239 Whirlpool Door Handle
4	WP9761344 Whirlpool Door Liner
5	WPW10031790 Whirlpool Screw
6	WP8053948 Whirlpool Door Glass
7	W11539580 Whirlpool Retainer
8	WPW10299224 Whirlpool Range Door Hinge Assembly with Spring
9	WPW10409945 Whirlpool Glass Door
9A	WPW10409946 Whirlpool Door Glass
10C	W10761018 Whirlpool Dishwasher Left Door Trim
10B	W10761014 Whirlpool Right Door Trim
10	WP8523172 Whirlpool Left Door Trim
10A	WP8523166 Whirlpool Door Trim
11	WP355214 Whirlpool Screw
12	WP8523175 Whirlpool Door Trim Assembly
12A	WP8523177 Whirlpool Door Trim Assembly
13	W10777162 Whirlpool Screw
14	W11502236 Whirlpool Door Trim
15	WPW10200660 Whirlpool Range Oven Door Handle Screw
16	WPW10330077 Whirlpool Door Glass
17	WPW10410341 Whirlpool Spacer
18	WPW10299227 Whirlpool Range Door Hinge
19	WPW10316950 Whirlpool Window Frame
20	WPW10278991 Whirlpool Insulation
