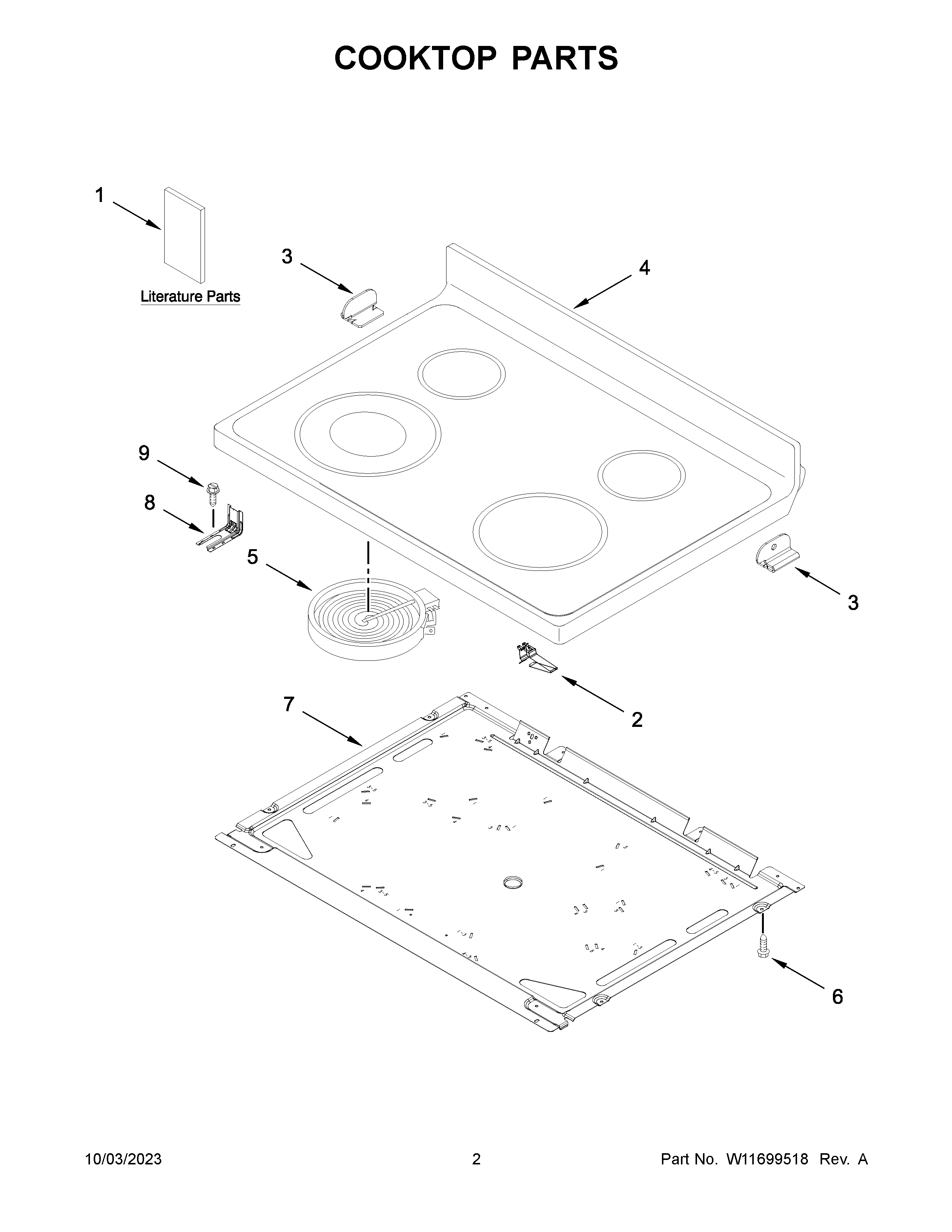

YWFE515S0JB4 02 – COOKTOP PARTS

Products

Position	Product
NI	HARNESS, WIRE (MAIN)
NI	W11675846 Whirlpool Wire Harness
NI	W11596058 Whirlpool Wire Harness
NI	FOLLOWING PARTS NOT ILLUSTRATED
1A	OWNERS MANUAL
1B	TECH SHEET
1	QUICK START GUIDE
2	W11663556 Whirlpool Spring Assembly
3A	W10607642 Whirlpool Clip
3	W10607641 Whirlpool Clip
4A	W11178790 Whirlpool Cooktop
4	W11178791 Whirlpool Cooktop
5	W11517959 Whirlpool Electric Range Radiant Surface Element
5A	ELMNT-SURF
5B	W11047722 Whirlpool Radiant Surface Element
6	WP3196557 Whirlpool Screw
7	PAN
8	W11447673 Whirlpool Range Tip Anchor
9	SCREW, ANTI-TIP KIT
