YWFE515S0JS4 02 – COOKTOP PARTS
Written by
in

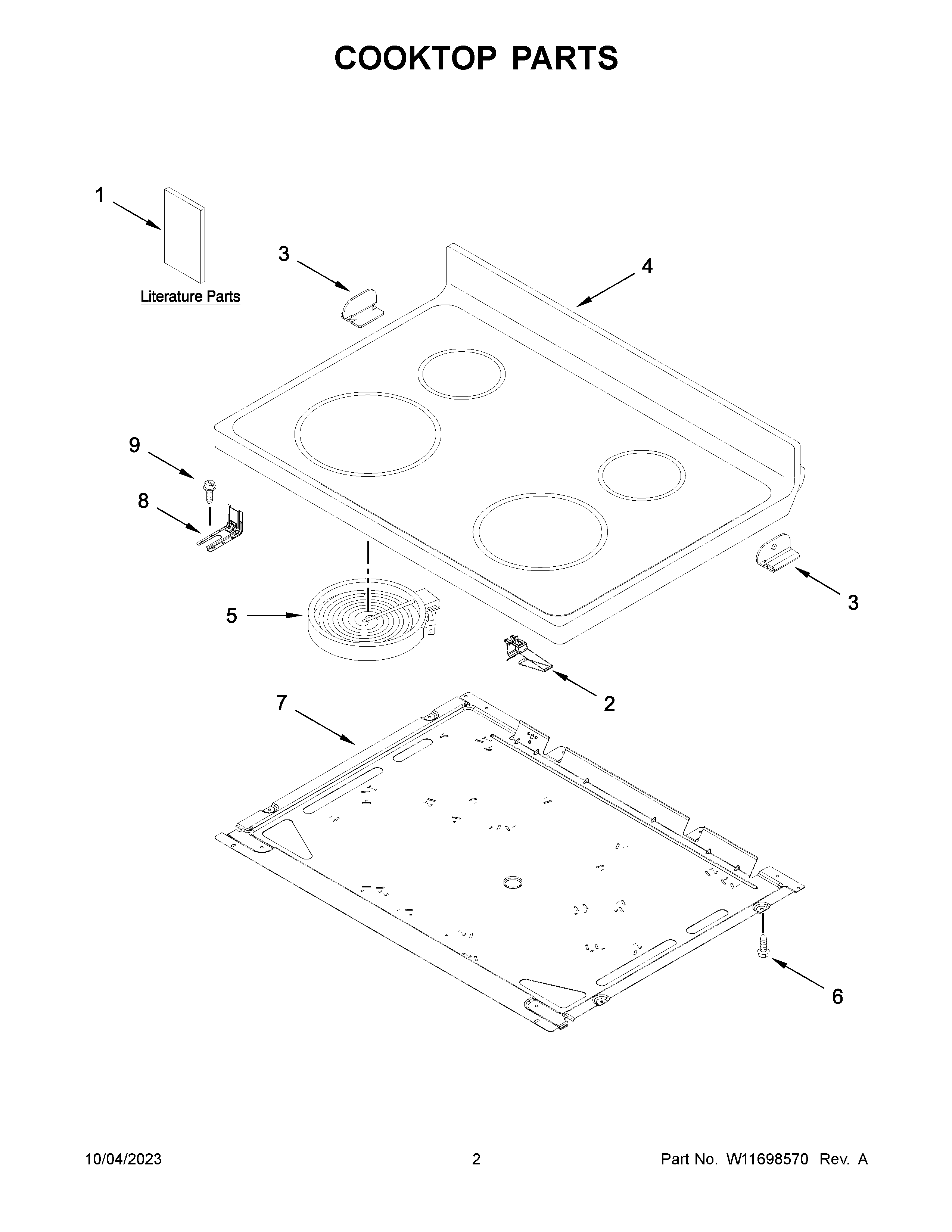

YWFE515S0JS4 02 – COOKTOP PARTS
Products
Position
Product
NI
HARNESS, WIRE (MAIN)
NI
W11675846 Whirlpool Wire Harness
NI
FOLLOWING PARTS NOT ILLUSTRATED
NI
W11596058 Whirlpool Wire Harness
1
QUICK START GUIDE
1A
OWNERS MANUAL
1B
TECH SHEET
2
W11663556 Whirlpool Spring Assembly
3A
W10607642 Whirlpool Clip
3
W10607641 Whirlpool Clip
4
W11178791 Whirlpool Cooktop
5
W11517959 Whirlpool Electric Range Radiant Surface Element
5A
ELMNT-SURF
5B
W11047722 Whirlpool Radiant Surface Element
6
WP3196557 Whirlpool Screw
7
PAN
8
W11447673 Whirlpool Range Tip Anchor
9
SCREW, ANTI-TIP KIT
←
