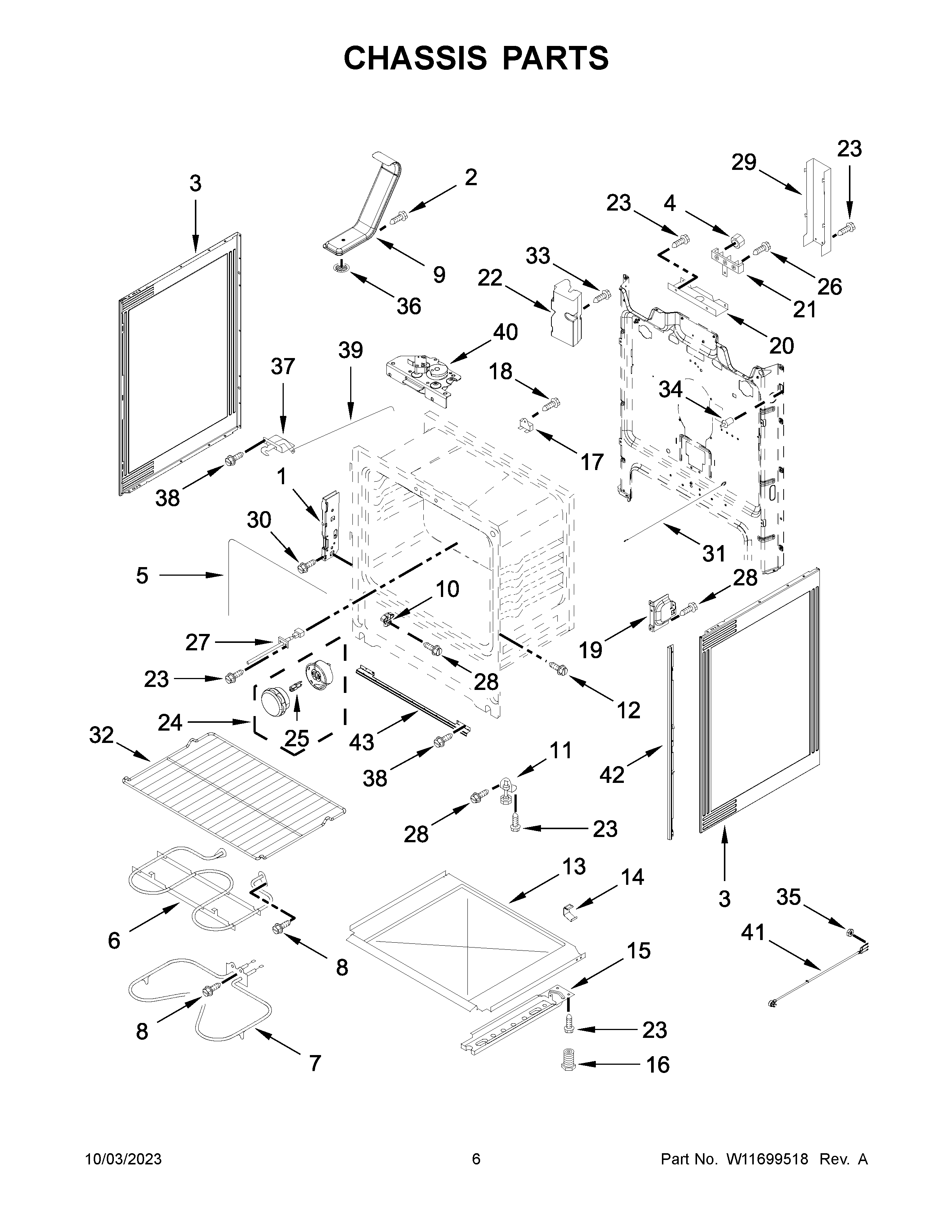

YWFE515S0JW4 04 – CHASSIS PARTS

Products

Position	Product
NI	W11161831 Whirlpool Insulation
NI	W11684918 Whirlpool Insulation
NI	FOLLOWING PARTS NOT ILLUSTRATED
NI	W11311894 Whirlpool Insulation
1	W10647259 Whirlpool Hinge Receiver
2	WP3196154 Whirlpool Screw Assembly
3	W11730303 Whirlpool Side Panel
3A	WPW10575396 Whirlpool Side Panel
4	WP3400029 Whirlpool Dishwasher Nut
5	W11542153 Whirlpool Door Gasket
6	W10856603 Whirlpool Broil Element
7	W11182108 Whirlpool Bake Element
8	WP3196174 Whirlpool Screw
9	WPW10134285 Whirlpool Vent Tube
10	W10807823 Whirlpool Drawer Glide
11	WPW10341186 Whirlpool Refrigerator Front Levelling Leg
12	WPW10067840 Whirlpool Screw
13	WP8054068 Whirlpool Retainer
14	W10137382 Whirlpool Clip
15A	WPW10306546 Whirlpool Base Rail
16	WPW10058460 Whirlpool Appliance Levelling Leg
17	WP3196548 Whirlpool Thermal Fuse
18	3196172 Whirlpool Oven Screw
19	W10404688 Whirlpool Bracket Support
20	W11728255 Whirlpool Service Bracket
21	WP8203546 Whirlpool Terminal Block
22	W11135752 Whirlpool Anchor Tip
23	SCREW
24	W11707255 Whirlpool Light
25	BULB-LIGHT
26	WP3400016 Whirlpool Screw Assembly
27	WPW10181986 Whirlpool Oven Sensor
28	WP3196557 Whirlpool Screw
29	WPW10326122 Whirlpool Black Cover
30	W10777162 Whirlpool Screw
31	9757239 Whirlpool Oven Door Rod
32	RACK-OVEN
33	W11135756 Whirlpool Screw Torx
34	SWTCH-LITE
35	Nut
36	SCREEN, VENT
37	WP9761013 Whirlpool Door Latch
38	W11169708 Whirlpool Screw
39	Rod, Latch
40	WPW10107840 Whirlpool Door Latch
41	W11226497 Whirlpool Power Cord
42	W11594227 Whirlpool Rail Mounting
43	W11464547 Whirlpool Support Bracket
