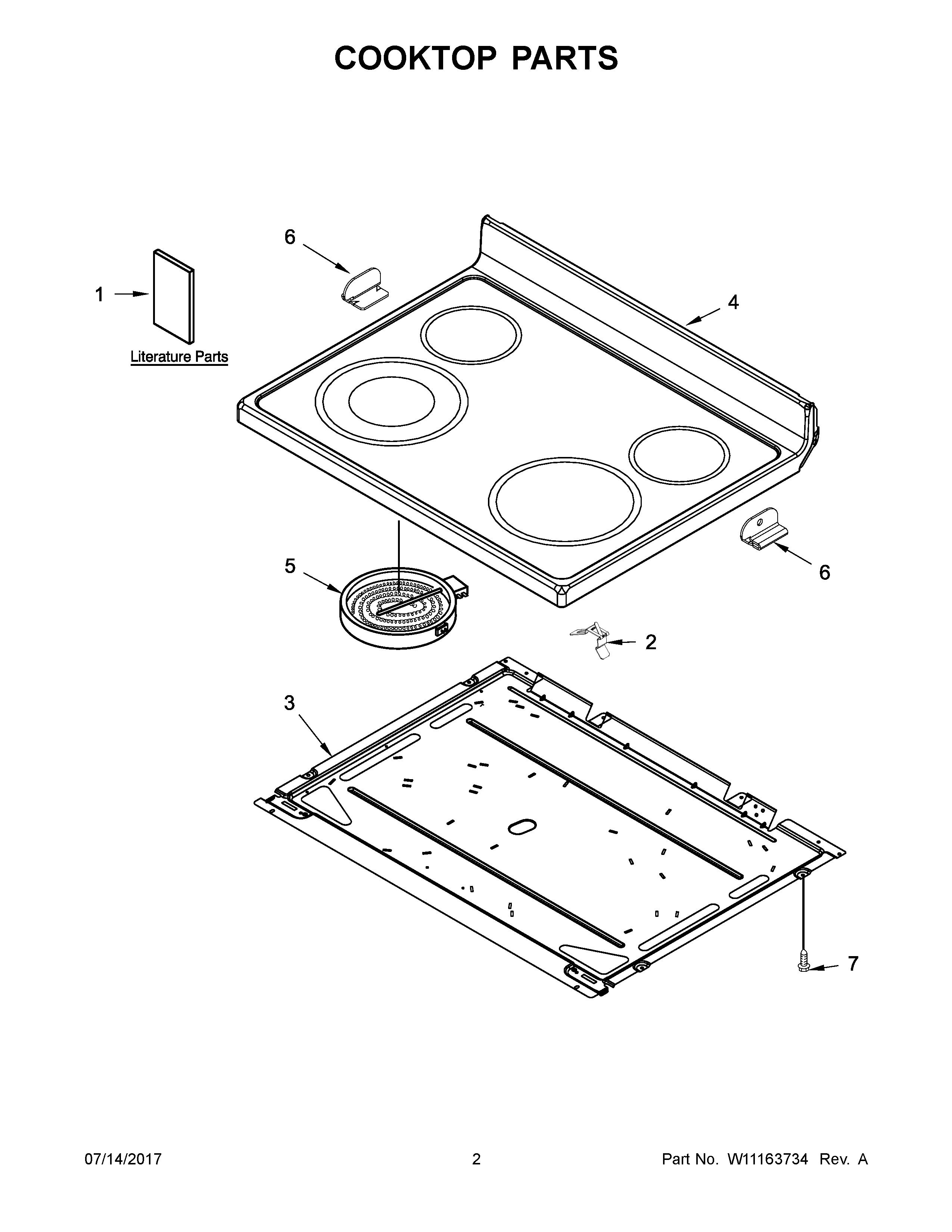

YWFE520S0FS1 02 – COOKTOP PARTS
Written by
in
YWFE520S0FS1 02 – COOKTOP PARTS
Products
Position
Product
NI
CABINET (NOT A SERVICEABLE PART)
NI
HARNESS, COOKTOP (LEFT)
NI
HARNESS, COOKTOP (RIGHT)
NI
W10084710 Whirlpool Wire Harness
NI
W10183541 Whirlpool Clip Assembly
NI
HARNESS, MAIN
NI
WPW10281322 Whirlpool Connector
NI
W10465644 Whirlpool Wire Harness
NI
WP3196154 Whirlpool Screw Assembly
NI
W11244557 Whirlpool Screw
NI
3400964 Whirlpool Oven Clip
1A
GUIDE, USE & CARE
1
INSTRUCTIONS, INSTALLATION
1D
SHEET, TECH
1E
DIAGRAM, WIRING
1C
Safer Cooking Tips (French)
1B
SAFER COOKING TIPS (ENGLISH
2
WPW10225448 Whirlpool Spring Assembly
3
PAN
4
W10245805 Whirlpool Range Black Glass Cooktop
5
W11517959 Whirlpool Electric Range Radiant Surface Element
5A
ELMNT-SURF
5B
W11047722 Whirlpool Radiant Surface Element
6A
W10607642 Whirlpool Clip
6
W10607641 Whirlpool Clip
7
WP3196557 Whirlpool Screw
←
