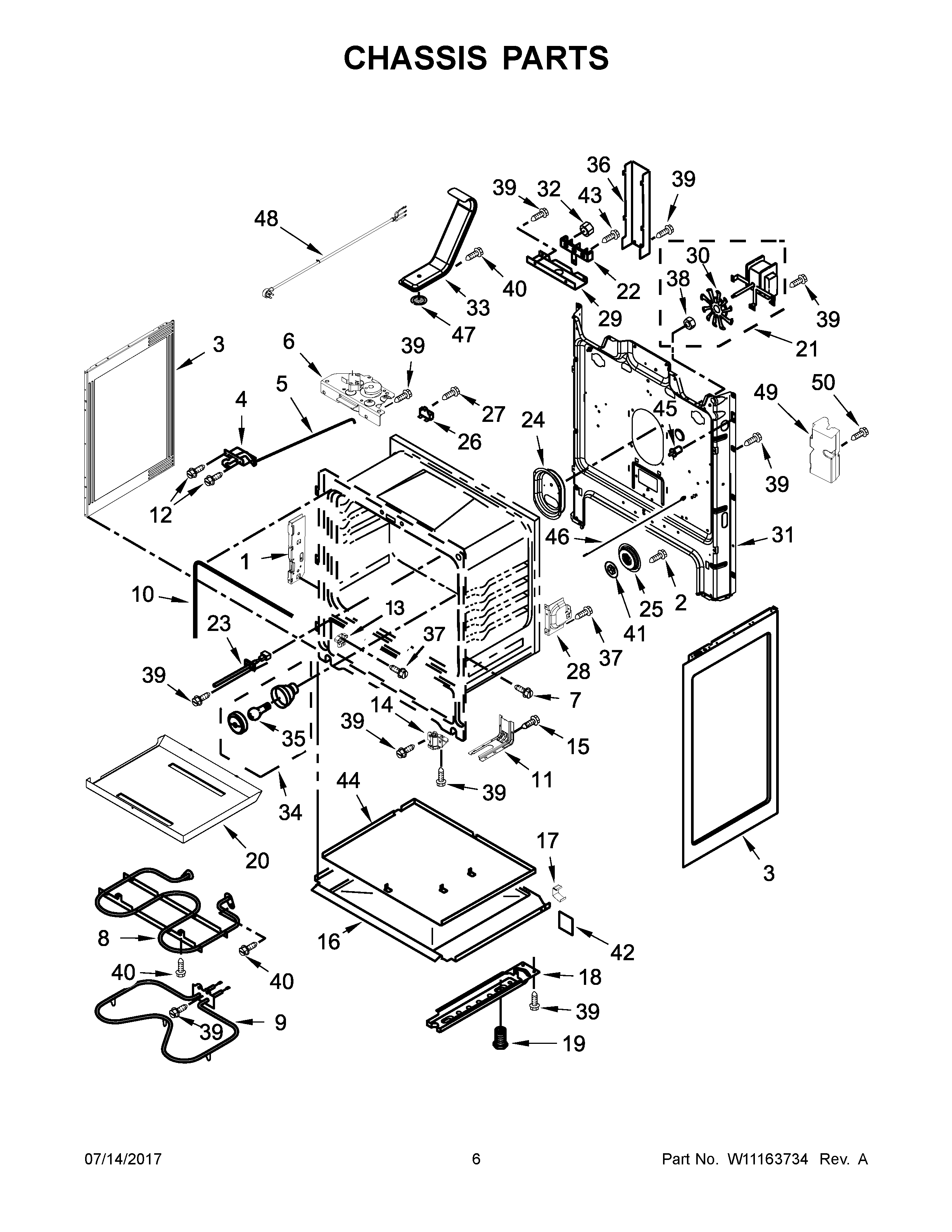

YWFE520S0FS1 04 – CHASSIS PARTS

Products

Position	Product
NI	W11161831 Whirlpool Insulation
NI	W11684918 Whirlpool Insulation
NI	W10326347 Whirlpool Insulation
1	W10647259 Whirlpool Hinge Receiver
2	WP4449809 Whirlpool Screw
3	W11730303 Whirlpool Side Panel
4	WP9761013 Whirlpool Door Latch
5	Rod, Latch
6	WPW10107820 Whirlpool Door Latch
7	WPW10067840 Whirlpool Screw
8	W10856603 Whirlpool Broil Element
9	WP9755770 Whirlpool Bake Element
10	W11542153 Whirlpool Door Gasket
11	W11447673 Whirlpool Range Tip Anchor
12	W11169708 Whirlpool Screw
13	W10807823 Whirlpool Drawer Glide
14	WPW10341186 Whirlpool Refrigerator Front Levelling Leg
15	SCREW, ANTI-TIP KIT
16	W10134121 Whirlpool Insulation Tray
17	W10137382 Whirlpool Clip
18A	WPW10306546 Whirlpool Base Rail
19	WPW10058460 Whirlpool Appliance Levelling Leg
20	W10183712 Whirlpool Bake Tray
21	W11582241 Whirlpool Convection Fan
22	WP8203546 Whirlpool Terminal Block
23	WPW10181986 Whirlpool Oven Sensor
24	W10134126 Whirlpool Cover
25	WPW10134124 Whirlpool Fan Cover
26	WP3196548 Whirlpool Thermal Fuse
27	3196172 Whirlpool Oven Screw
28	W10404688 Whirlpool Bracket Support
29	W11728255 Whirlpool Service Bracket
30	W10758272 Whirlpool Convection Fan
31	CABINET (NOT A SERVICEABLE PART)
32	Nut
33	WPW10134285 Whirlpool Vent Tube
34	W11594027 Whirlpool Range Oven Light Socket
35	RANGE ONLY 40W 120V APPL BULB
36	WPW10326122 Whirlpool Black Cover
37	WP3196175 Whirlpool Screw
38	NUT
39	SCREW
40	WP3196174 Whirlpool Screw
41	WP3400968 Whirlpool Nut
42	W10646923 Whirlpool Insulator
43	WP3400016 Whirlpool Screw Assembly
44	W10134125 Whirlpool Retainer Clip
45	WP9757262 Whirlpool Light Switch
46	9757239 Whirlpool Oven Door Rod
47	9761301 Whirlpool Oven Screen
48	W11226497 Whirlpool Power Cord
49	W11135752 Whirlpool Anchor Tip
50	W11135756 Whirlpool Screw Torx
