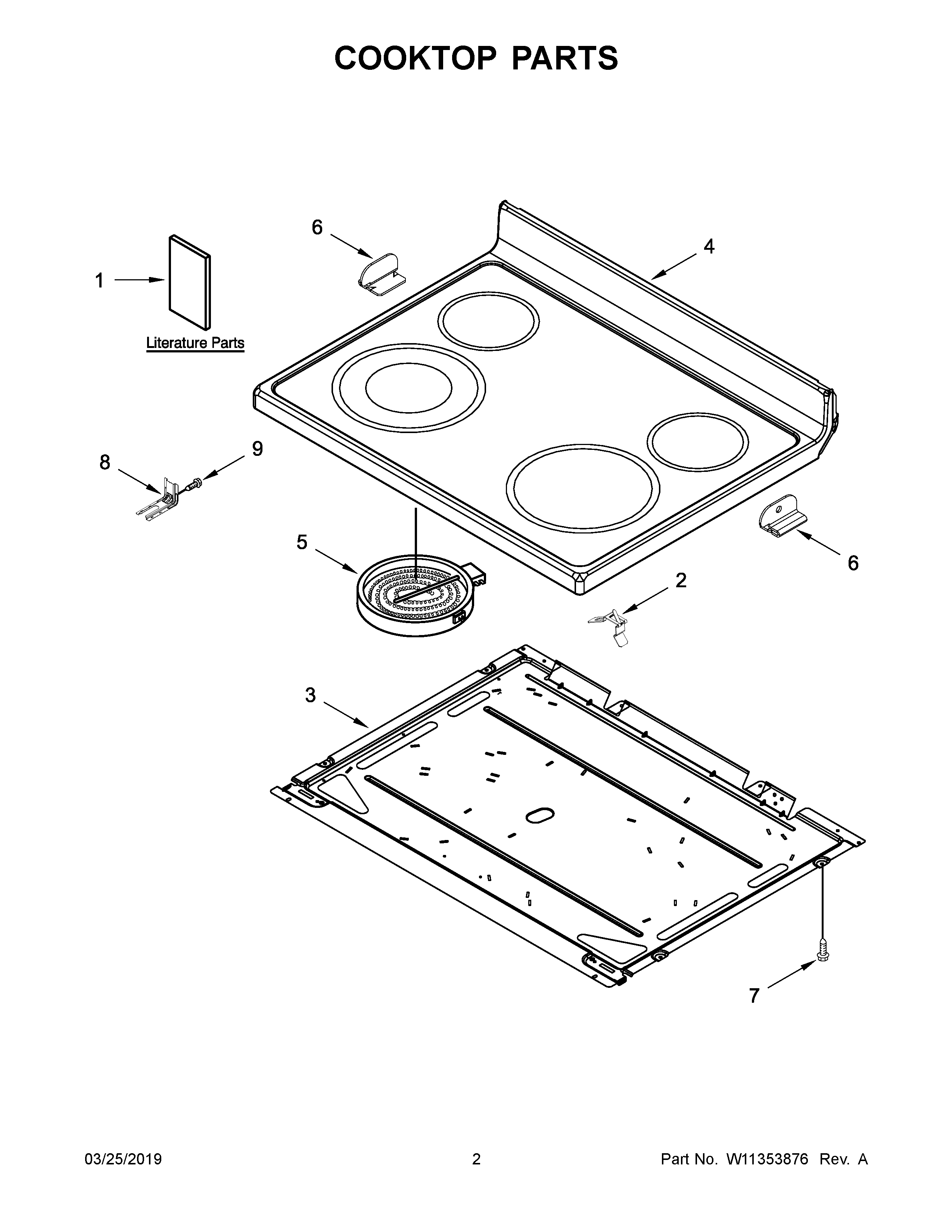

YWFE520S0FS2 02 – COOKTOP PARTS

YWFE520S0FS2 02 – COOKTOP PARTS

Written by

in

YWFE520S0FS2 02 – COOKTOP PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIHARNESS, COOKTOP (LEFT)
NIHARNESS, COOKTOP (RIGHT)
NIW11172528 Whirlpool Harness Wire
NIW10183541 Whirlpool Clip Assembly
NIHARNESS, MAIN
NIWPW10281322 Whirlpool Connector
NIWP3196154 Whirlpool Screw Assembly
NIW11244557 Whirlpool Screw
NI3400964 Whirlpool Oven Clip
1INSTRUCTIONS, INSTALLATION
1BSHEET, TECH
1AGUIDE, USE & CARE
1CDIAGRAM, WIRING
2WPW10225448 Whirlpool Spring Assembly
3PAN
4W10245805 Whirlpool Range Black Glass Cooktop
5AELMNT-SURF
5BW11047722 Whirlpool Radiant Surface Element
5W11517959 Whirlpool Electric Range Radiant Surface Element
6AW10607642 Whirlpool Clip
6W10607641 Whirlpool Clip
7WP3196557 Whirlpool Screw
8W11447673 Whirlpool Range Tip Anchor
9SCREW, ANTI-TIP KIT
