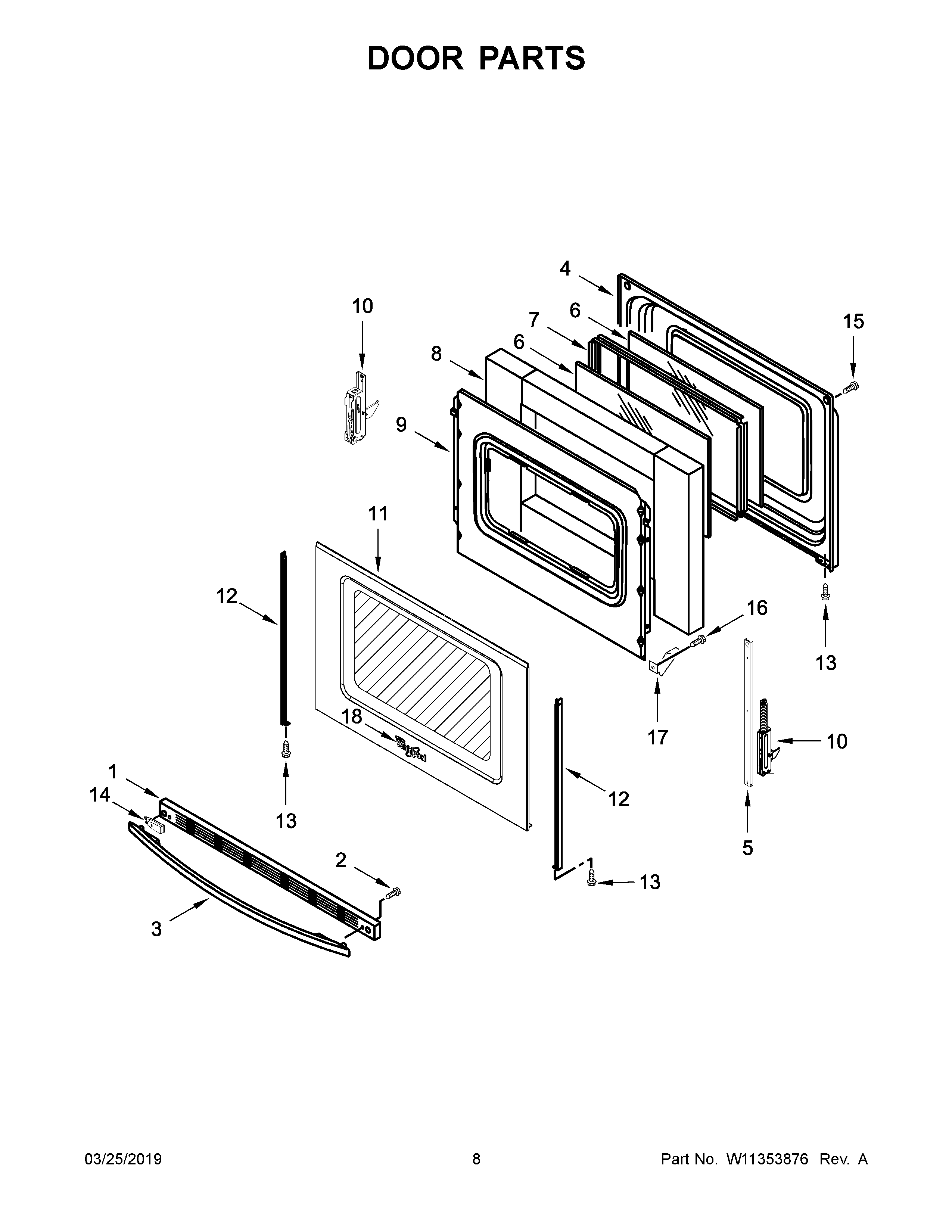

YWFE520S0FS2 05 – DOOR PARTS

YWFE520S0FS2 05 – DOOR PARTS

Written by

in

YWFE520S0FS2 05 – DOOR PARTS

Products

PositionProduct
1TRIM-VENT
2WPW10200660 Whirlpool Range Oven Door Handle Screw
3WPW10618239 Whirlpool Door Handle
4WP9761344 Whirlpool Door Liner
5W11502236 Whirlpool Door Trim
6WP8053948 Whirlpool Door Glass
7WPW10316950 Whirlpool Window Frame
8WPW10278991 Whirlpool Insulation
9W11539580 Whirlpool Retainer
10AWPW10299224 Whirlpool Range Door Hinge Assembly with Spring
10WPW10299227 Whirlpool Range Door Hinge
11W11219379 Whirlpool Door Glass Assembly
12W10761018 Whirlpool Dishwasher Left Door Trim
12AW10761014 Whirlpool Right Door Trim
13WP355214 Whirlpool Screw
14WPW10410341 Whirlpool Spacer
15W10777162 Whirlpool Screw
16WP3196175 Whirlpool Screw
17W10137382 Whirlpool Clip
18W11178521 Whirlpool Dishwasher Nameplate
