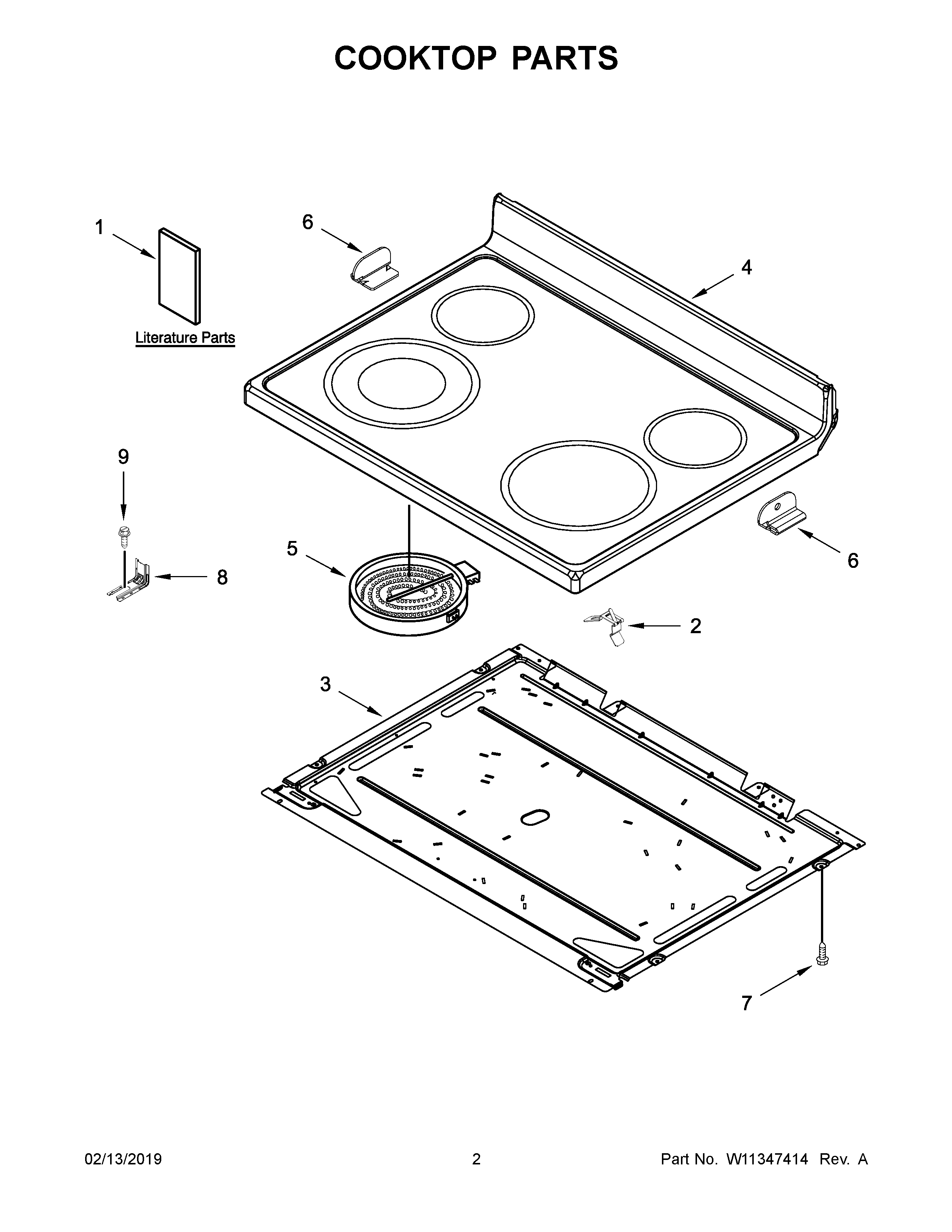

YWFE520S0FW2 02 – COOKTOP PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	HARNESS, COOKTOP (LEFT)
NI	HARNESS, COOKTOP (RIGHT)
NI	W11172528 Whirlpool Harness Wire
NI	W10183541 Whirlpool Clip Assembly
NI	HARNESS, MAIN
NI	WPW10281322 Whirlpool Connector
NI	3400964 Whirlpool Oven Clip
1	INSTRUCTIONS, INSTALLATION
1B	SHEET, TECH
1A	GUIDE, USE & CARE
1C	DIAGRAM, WIRING
2	WPW10225448 Whirlpool Spring Assembly
3	PAN
4	COOKTOP (WHITE)
5	W11517959 Whirlpool Electric Range Radiant Surface Element
5B	W11047722 Whirlpool Radiant Surface Element
5A	ELMNT-SURF
6	W10607641 Whirlpool Clip
6A	W10607642 Whirlpool Clip
7	WP3196557 Whirlpool Screw
8	W11447673 Whirlpool Range Tip Anchor
9	SCREW, ANTI-TIP KIT
