YWFE520S0FW2 03 – CONTROL PANEL PARTS

YWFE520S0FW2 03 – CONTROL PANEL PARTS

Written by

in

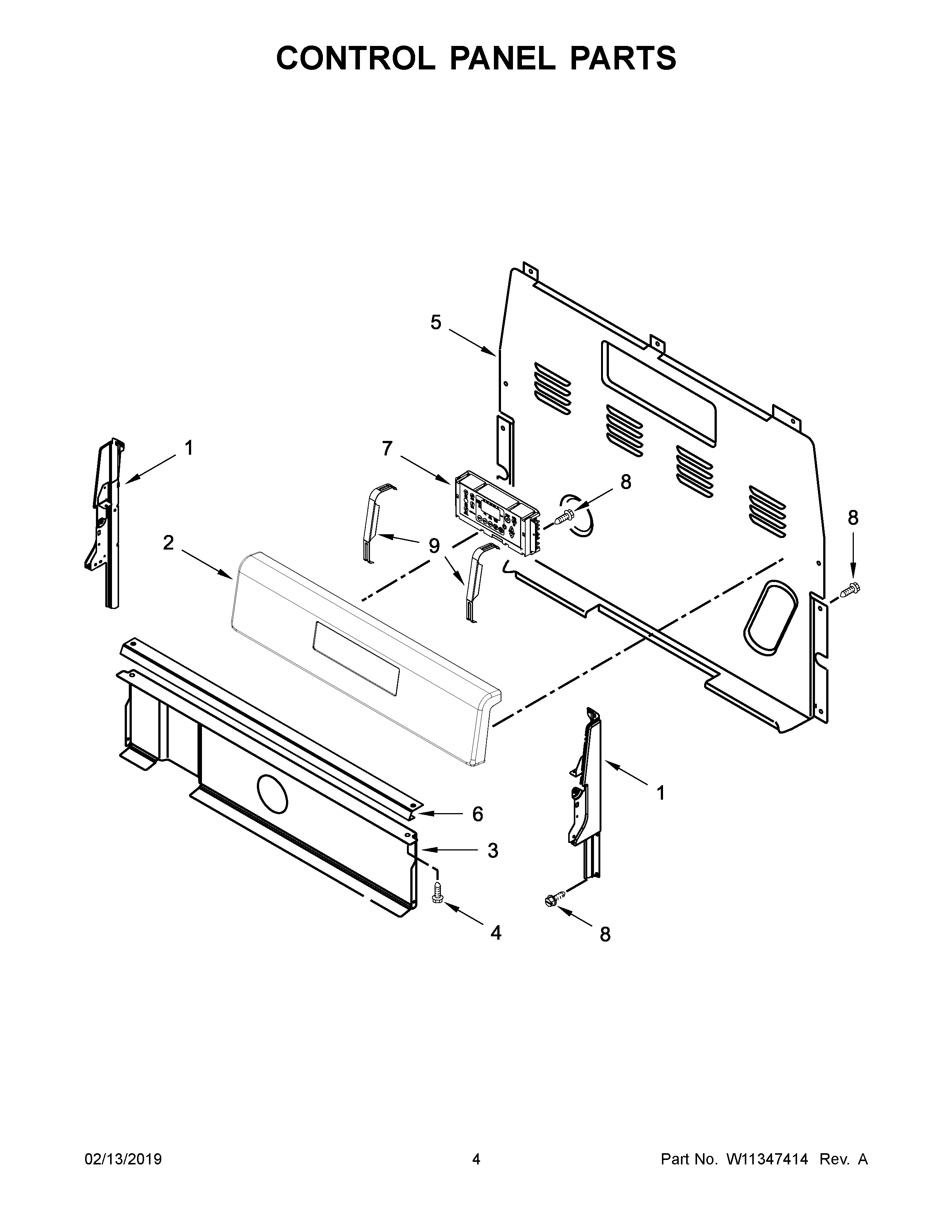

YWFE520S0FW2 03 – CONTROL PANEL PARTS

Products

PositionProduct
1AW11219370 Whirlpool Endcap Panel
1W11219365 Whirlpool Panel Endcap
2PANEL, CONTROL (WHITE)
3W10134247 Whirlpool Heat Shield
4WP3196557 Whirlpool Screw
5WP8272473 Whirlpool Rear Cover
6W10525121 Whirlpool Control Bracket
7W11178660-includeCORE Whirlpool W11178660 Refrigerator Electronic Control Board
8SCREW
9W11230932 Whirlpool Bracket Mounting
