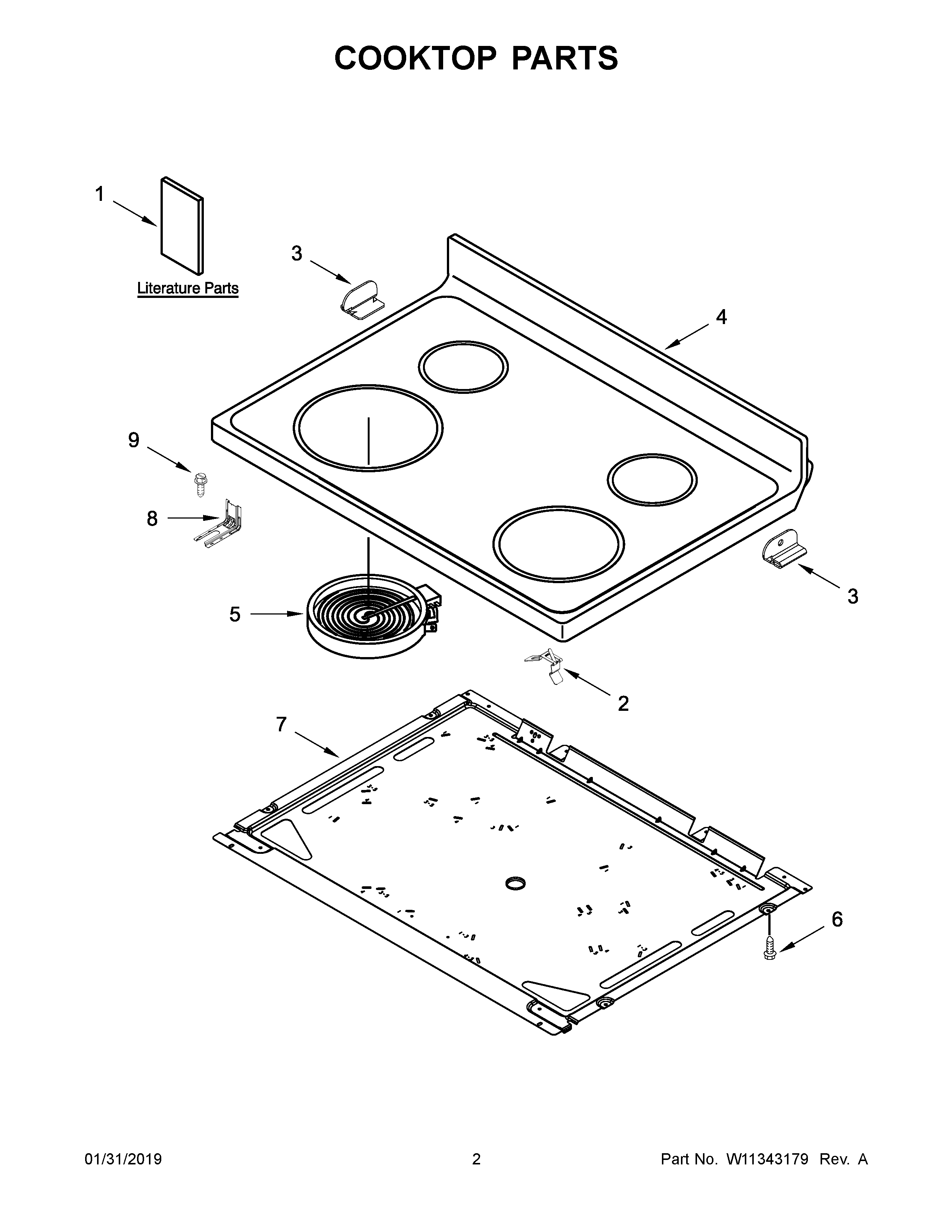

YWFE521S0HS1 02 – COOKTOP PARTS

YWFE521S0HS1 02 – COOKTOP PARTS

Written by

in

YWFE521S0HS1 02 – COOKTOP PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIW11172528 Whirlpool Harness Wire
NIHARNESS, WIRE (MAIN)
NIW11675846 Whirlpool Wire Harness
NIW11596058 Whirlpool Wire Harness
NI3400964 Whirlpool Oven Clip
1AINSTRUCTIONS, INSTALLATION
1CDIAGRAM, WIRING
1GUIDE, USE & CARE
1BSHEET, TECH
2WPW10225448 Whirlpool Spring Assembly
3W10607641 Whirlpool Clip
3AW10607642 Whirlpool Clip
4W10245805 Whirlpool Range Black Glass Cooktop
5BW11047722 Whirlpool Radiant Surface Element
5AELMNT-SURF
5W11517959 Whirlpool Electric Range Radiant Surface Element
6WP3196557 Whirlpool Screw
7PAN
8W11447673 Whirlpool Range Tip Anchor
9SCREW, ANTI-TIP KIT
