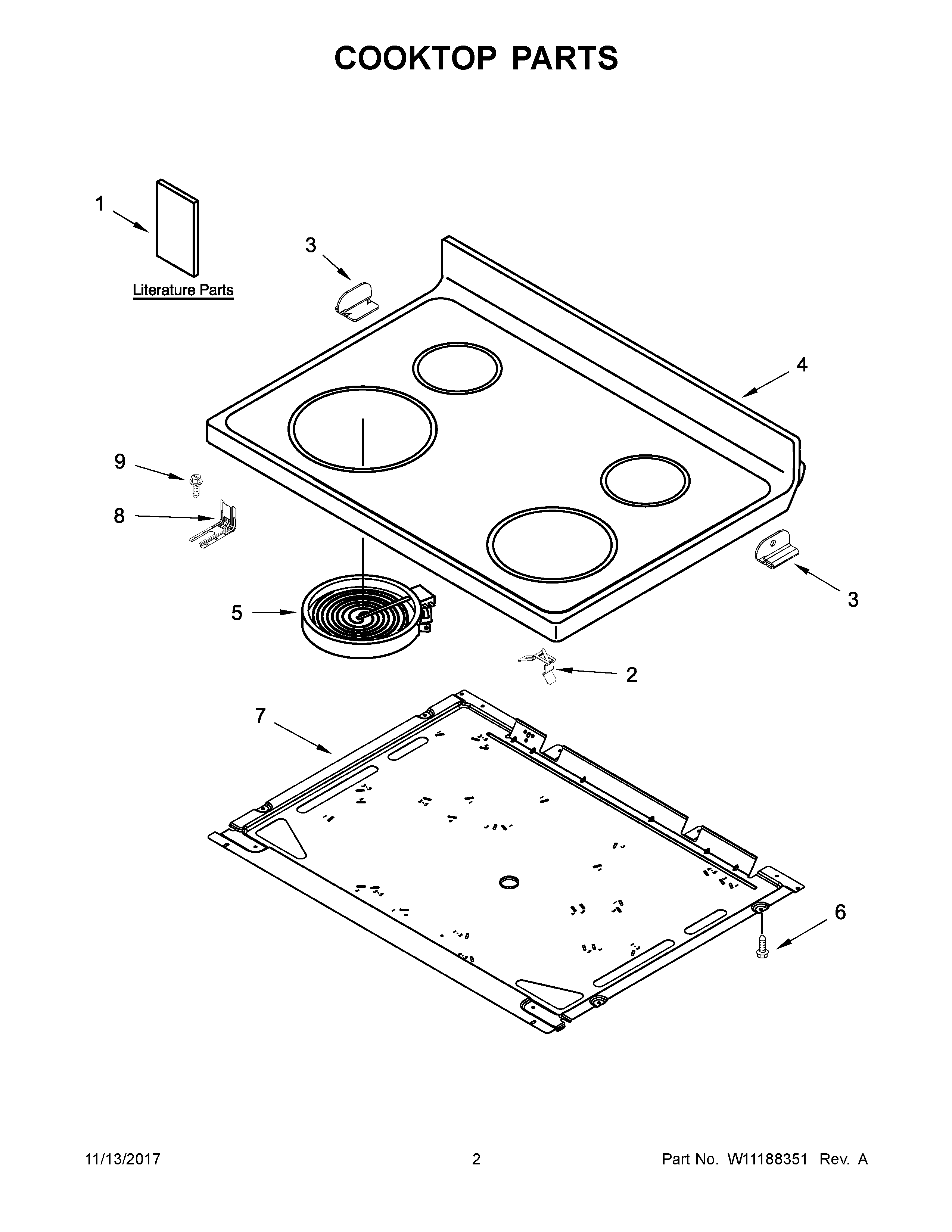

YWFE521S0HW0 02 – COOKTOP PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	HARNESS, COOKTOP (LEFT)
NI	HARNESS, COOKTOP (RIGHT)
NI	HARNESS, WIRE (MAIN)
NI	W10465644 Whirlpool Wire Harness
NI	3400964 Whirlpool Oven Clip
1	INSTRUCTIONS, INSTALLATION
1A	GUIDE, USE & CARE
1B	SHEET, TECH
1C	DIAGRAM, WIRING
1E	Safer Cooking Tips (French)
1D	SAFER COOKING TIPS (ENGLISH
2	WPW10225448 Whirlpool Spring Assembly
3	W10607641 Whirlpool Clip
3A	W10607642 Whirlpool Clip
4	COOKTOP (WHITE)
4A	W10245805 Whirlpool Range Black Glass Cooktop
5	W11517959 Whirlpool Electric Range Radiant Surface Element
5A	ELMNT-SURF
5B	W11047722 Whirlpool Radiant Surface Element
6	WP3196557 Whirlpool Screw
7	PAN
8	W11447673 Whirlpool Range Tip Anchor
9	SCREW, ANTI-TIP KIT
