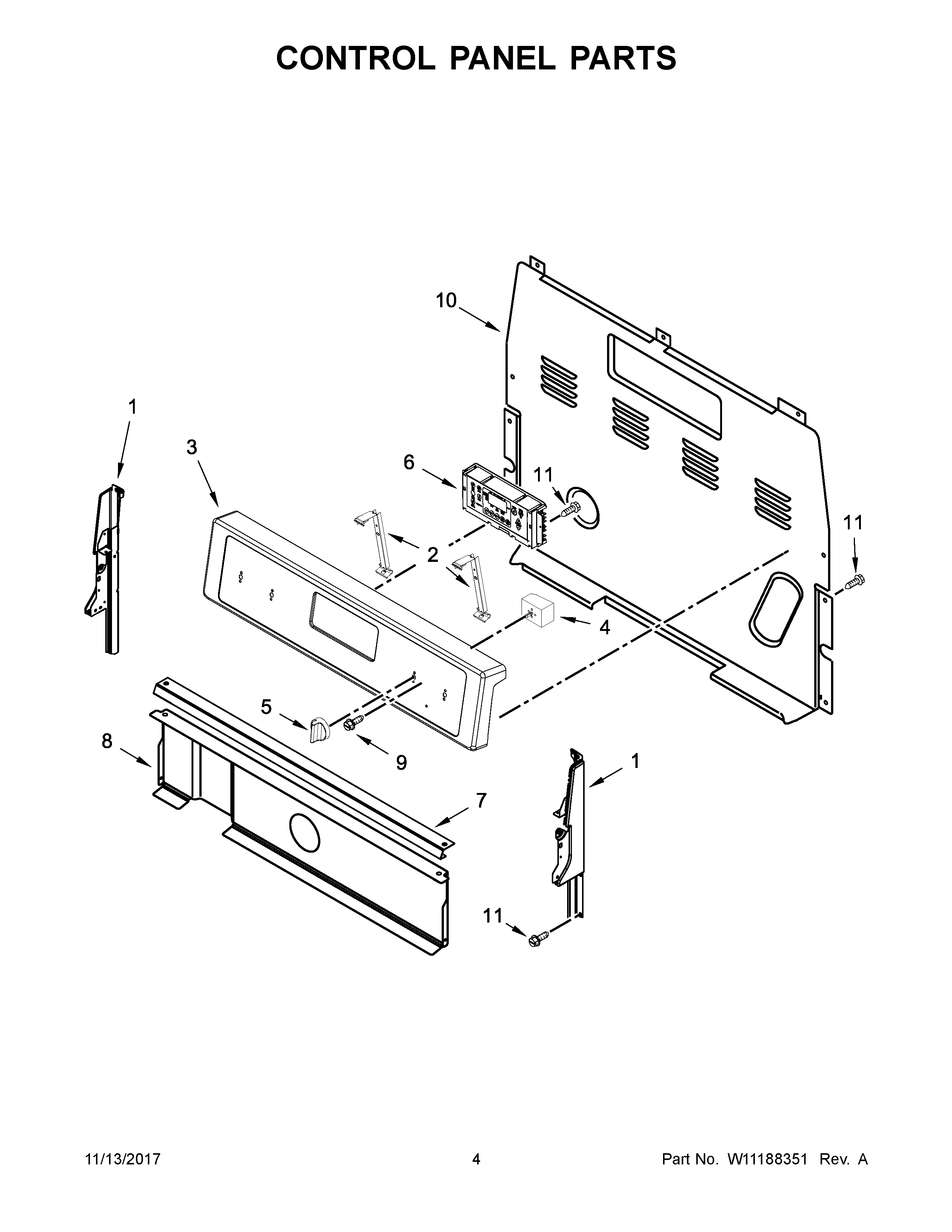

YWFE521S0HW0 03 – CONTROL PANEL PARTS

YWFE521S0HW0 03 – CONTROL PANEL PARTS

Written by

in

YWFE521S0HW0 03 – CONTROL PANEL PARTS

Products

PositionProduct
1AW11219370 Whirlpool Endcap Panel
1W11219365 Whirlpool Panel Endcap
1BW11219664 Whirlpool Endcap Panel
1CW11219665 Whirlpool Panel Endcap
2W11230932 Whirlpool Bracket Mounting
3AW11180283 Whirlpool Control Panel Assembly
3W11180282 Whirlpool Control Panel
4AWP3149404 Whirlpool Oven Surface Element Switch
4BWP3149400 Whirlpool Oven Infinite Switch
4SWITCH-INF
5AW11158168 Whirlpool Knob
5W11158173 Whirlpool Knob Assembly
6W11546093 Whirlpool Electronic Control Board + Core
6AW11546064-includeCORE Whirlpool W11546064 Refrigerator Electronic Control Board + Core
7W10525121 Whirlpool Control Bracket
8W10134247 Whirlpool Heat Shield
9WP3400882 Whirlpool Screw
10WP8272473 Whirlpool Rear Cover
11SCREW
