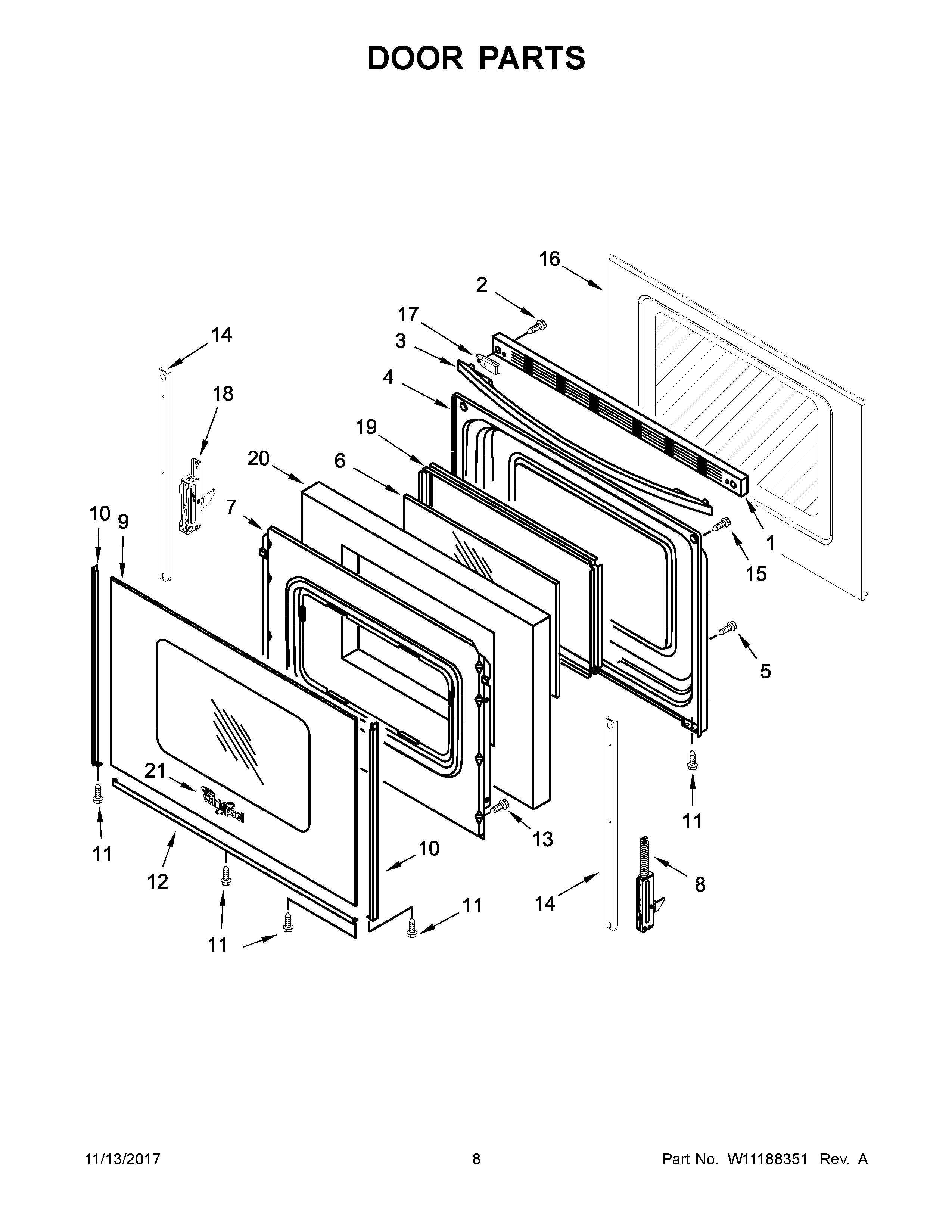

YWFE521S0HW0 05 – DOOR PARTS

YWFE521S0HW0 05 – DOOR PARTS

Written by

in

YWFE521S0HW0 05 – DOOR PARTS

Products

PositionProduct
1W10817433 Whirlpool Vent Trim
1ATRIM-VENT
2W10831019 Whirlpool Stove Door Screw
3W11107407 Whirlpool Door Handle
3AW11110499 Whirlpool Stove Door Handle
4WP9761344 Whirlpool Door Liner
5WPW10031790 Whirlpool Screw
6WP8053948 Whirlpool Door Glass
7W11539580 Whirlpool Retainer
8WPW10299224 Whirlpool Range Door Hinge Assembly with Spring
9WPW10409945 Whirlpool Glass Door
10AWP8523166 Whirlpool Door Trim
10CW10761014 Whirlpool Right Door Trim
10BW10761018 Whirlpool Dishwasher Left Door Trim
10WP8523172 Whirlpool Left Door Trim
11WP355214 Whirlpool Screw
12WP8523175 Whirlpool Door Trim Assembly
13W10777162 Whirlpool Screw
14W11502236 Whirlpool Door Trim
15WPW10200660 Whirlpool Range Oven Door Handle Screw
16W11219379 Whirlpool Door Glass Assembly
17W11590861 Whirlpool Door Handle
17ASTANDOFF, HANDLE (BLACK)
18WPW10299227 Whirlpool Range Door Hinge
19WPW10316950 Whirlpool Window Frame
20WPW10278991 Whirlpool Insulation
21W11178521 Whirlpool Dishwasher Nameplate
